Radium Top Feed Fuel Rail Conversion Kit - Nissan KA24DE
Couldn't load pickup availability

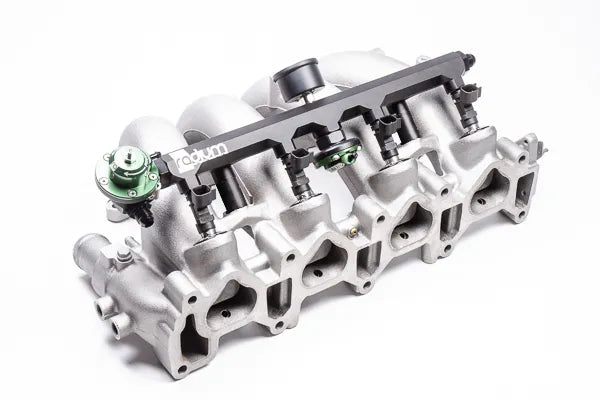

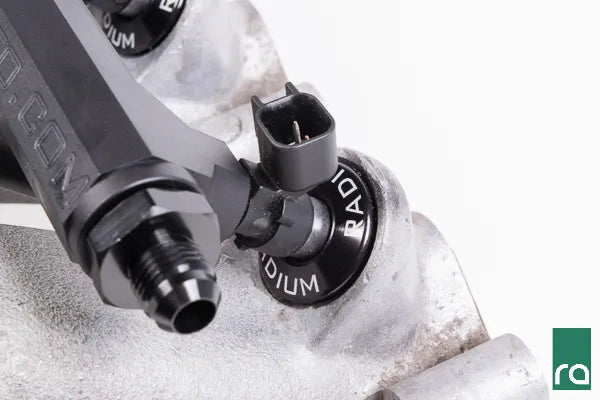

This Radium Engineering fuel rail is a direct bolt-on with all twin cam Nissan KA24DE engines. Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed allowing the use of high flow 14mm O-ring fuel injectors (not included).Â

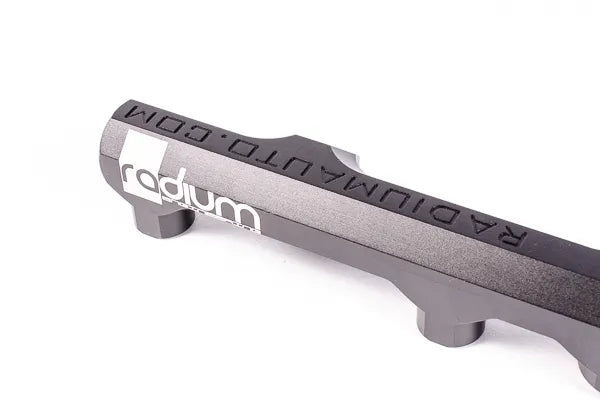

The rail is CNC machined from solid 6061 aluminum and black anodized making it compatible with all fuel types including E85. If planning to use with an Xcessive intake manifold, please note that the fuel rail may need to be shimmed to the proper height depending on fuel injectors used. Also, the aluminum injector seats included in this fuel rail will not be used.

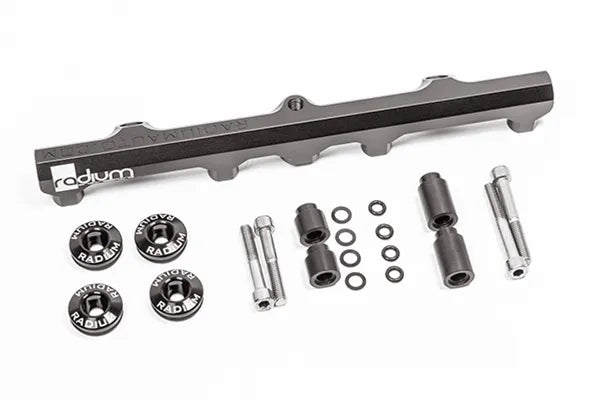

Kit Includes:
- Black Anodized Aluminum Fuel Rail
- Thermal Insulating Spacers, Short (x2)
- Thermal Insulating Spacers, Tall (x2)
- Thermal Insulating Washers (x2)
- Radium 20-0160, 30mm Injector Seats (x4)
- Stainless Steel Mounting Bolts, Short (x2)
- Stainless Steel Mounting Bolts, Tall (x2) Â
Fuel Injector Compatibility:
The kit includes two sets of thermal insulating spacers (shown above in the kit contents) to suit either 48mm or 34mm height injectors. Injectors MUST have 14mm O-rings top and bottom.Â
Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail using the tall spacers:
- Injector Dynamics ID1050-XDS-48-14-14
- Injector Dynamics ID1300-XDS-48-14-14
- Injector Dynamics ID1700-XDS-48-14-14
- Injector Dynamics ID2600-XDS-48-14-14Â
Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail using the short spacers:
- Injector Dynamics ID1050-XDS-34-14-14
- Injector Dynamics ID1300-XDS-34-14-14
- Injector Dynamics ID1700-XDS-34-14-14
- Injector Dynamics ID2600-XDS-34-14-14Â
NOTE: Fuel injectors are NOT included and must be purchased elsewhere.
