  3. Hondata K-Pro Version 4
By Hondata

Hondata K-Pro Version 4

$1,395.00
$1,395.00
Shipping calculated at checkout.
Spend $1,000.00 more to reach Free Shipping!
0%
 More payment options
Brand: Hondata
Availability: In stock
SKU: HD-KPRO
Collections:
$1,395.00
$1,395.00

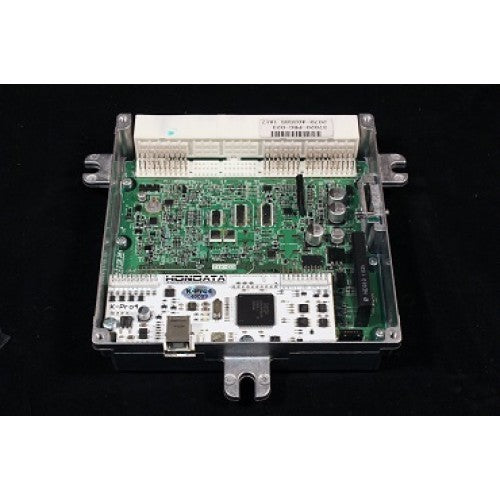

The K-Series Programmable ECU (K-Pro) consists of a hardware modification to any K-Series ECU, plus Windows software which allows you to re-program the ECU and datalog sensors.

We no longer sell the chip individually

Installation steps:

  • Remove your ECU, open your ECU and send a photo of the board to sales@revzone.com.au
  • Once we confirm that the ECU is compatible print out and fill in the Installation Form (include this form with the ECU) and invoice.
  • Send your ECU to

        Revzone

        10 Molan Street

        Ringwood VIC 3134


Main features:

  • Fits inside the ECU

  • Designed and assembled in USA

  • USB connection for speed and compatibility

  • KManager Windows based software for parameter & table editing, calibration uploading and datalogging.

  • Many built in calibrations for common engine combinations

  • Built in datalogging to a laptop

  • On board datalogging memory (8 MB memory, 10-215 minutes datalogging)

  • Adjustment for different sized injectors, with overall fuel trim.

  • Configurable for any MAP sensor (to 5 Bar and above)

  • TPS based table lookup for ITBs

  • Engine protection from lean air fuel ratios, over boost and low oil/fuel pressure.

  • Expanded fuel and ignition tables, both in rpm and load, to 60 lbs boost and 11,000 rpm (these are not the upper limits)

  • Launch control with anti-lag

  • Three multi purpose outputs for nitrous control or similar.

  • Supports lambda tracing from the stock wideband o2 or aftermarket wideband.

  • PWM output for boost control

  • Bluetooth support and Hondata Mobile app.

  • Ethanol sensor input for flex fuel capability.

  • Alternate speed sensor input.

  • Dash output serial & CAN streams.

  • Live tuning and auto tune.



KManager editing software features:

  • High and low speed 16 x 20 ignition and fuel tables at multiple cam angles for correct VTEC and VTC tuning.

  • Injector size fuel trim

  • Fuel trim for starting, throttle tip in and individual cylinder trim

  • Rev limiter with fuel cut

  • Launch control with anti-lag

  • Adjustable VTEC window with load and throttle control

  • Adjustable idle speed

  • MAP sensor type and calibration

  • Adjustable boost cut with hot and cold settings

  • Closed loop control

  • Air temperature compensation

  • Fuel and ignition correction based on gear

  • Closed loop

  • Three general purpose outputs for nitrous control, quad boost control or similar

  • On board datalogging trigger conditions
