Radium VTA Vent To Atmosphere 2 Port Competition Catch Can Large

Radium Competition Catch Cans (CCC) meet the common 1 quart minimum capacity requirements dictated by many organizing bodies including SCCA, NASA, and Formula Drift. This CCC is specifically made to vent to atmosphere (VTA). For a VTE competition catch can that recirculates clean air back into the intake, see part number 20-0071 and 20-0072. There is a large and extra large version of the VTA competition catch can (see part number 20-0771 for Extra Large). Both VTA CCCs have 2 adjacent inlets making them complimentary to dual bank engines. Both inlet ports are machined with 10AN ORB (7/8"-14) threads.

NOTE: For engines with 1 crankcase vent port, simple use 14-0351 to plug the additional inlet port.

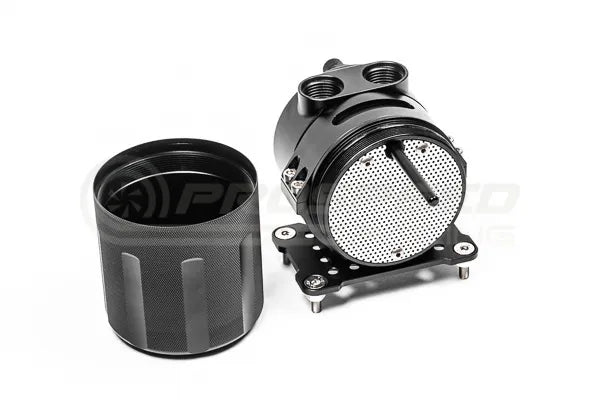

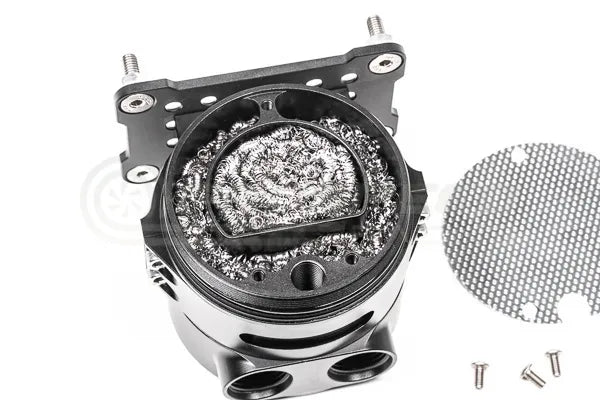

The VTA CCC features one giant non-restrictive outlet that is over 183% larger than the inner diameter of 10AN inlets. This increase in volume slows air flow allowing contaminants to fall out of suspension. Additionally, contaminants are trapped with a diffuser permitting the oil sludge to fall back into the catch can preventing overspray in the engine bay. The CNC machined aluminum can unscrews for ease of serviceability. The VTA CCC has 46.2% more stainless steel filtration media than the VTE CCC and 149.7% more than the standard catch can. Furthermore, it is a dual stage design (located in the inlet and outlet). These free flowing chambers do not create any flow restriction.

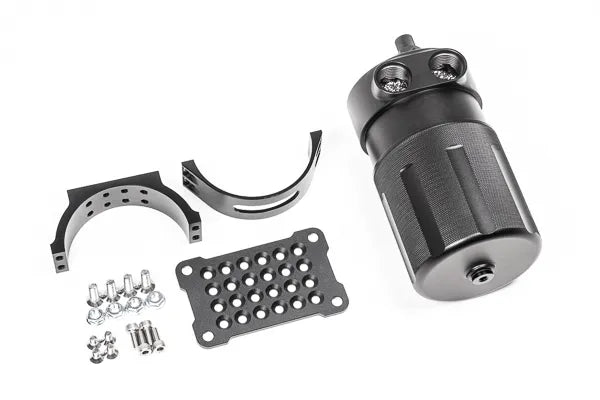

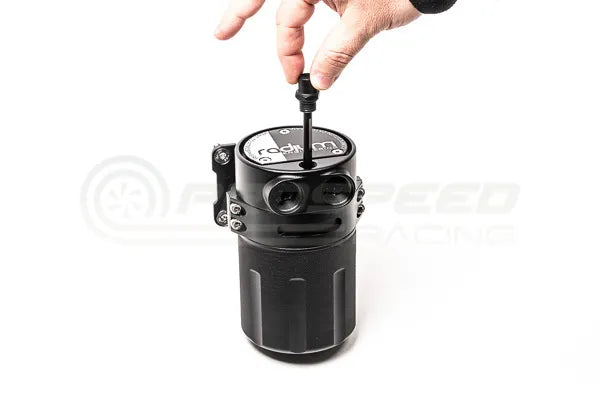

Like all Radium catch cans, an easily accessed dipstick is provided to quickly check fluid level, as shown above. A threaded 4AN ORB port (shown below) is integrated on the bottom for the ability to plumb a petcock drain valve (for more info see part number 20-0024). The included bracket provides a ton of flexibility and permits full 360 degree rotation. Additionally, M6x1mm hardware is provided for chassis mounting.

For those currently using the 20-0772, an optional extension piece kit will convert it to the extra large VTA CCC (20-0771). To upgrade at a later time from the L to XL version, see part number 20-0149.

Specifications:

• INLET THREADS: 10AN ORB (7/8"-14)
• DRAIN THREADS: 4AN ORB (7/16"-20)
• OUTER DIAMETER: 3.45"
• HEIGHT: 6.3” / 160mm
• WEIGHT: 1.8 lbs (w/ all hardware)
• VOLUME: 0.625qt / 0.6L / 20floz

NOTES

1. The lower half of the body simply unscrews for draining.
2. The integrated dipstick unscrews for a quick way to check oil level.
3. Some engines may require multiple catch cans depending on the PCV system design.
4. Hose not included
5. Catch cans are NOT designed for aftermarket crankcase vacuum pumps.

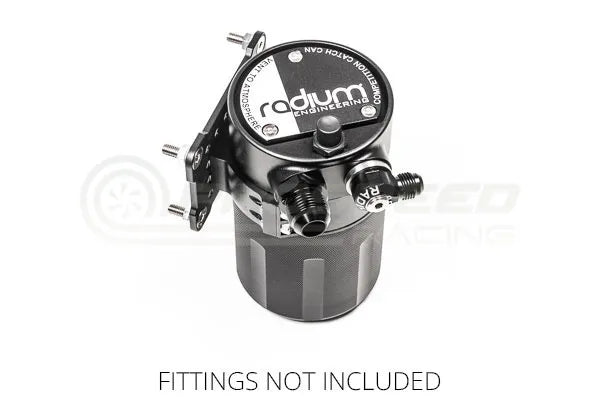

6. Sold without fittings.
