Radium Multi-Pump Fuel Surge Tank MPFST-R (Built in Regualtor)
Couldn't load pickup availability

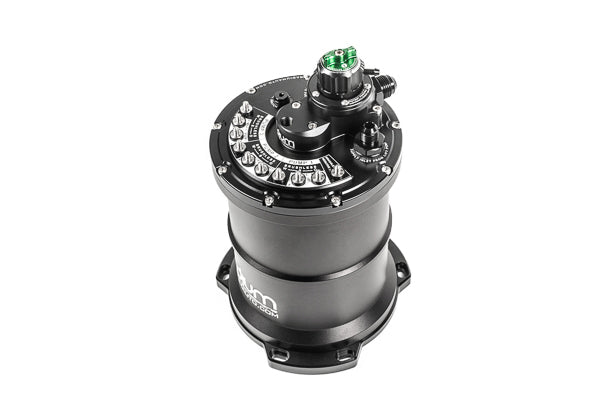

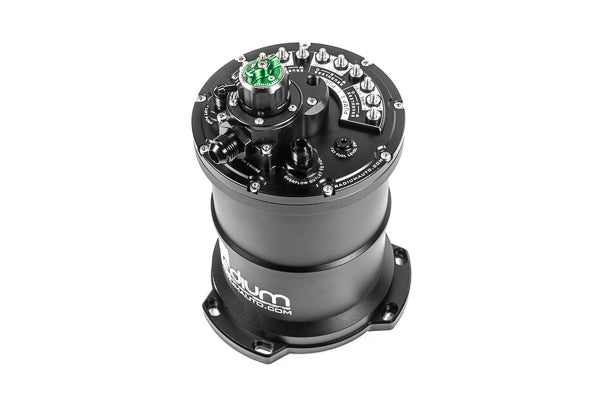

The Radium Engineering MPFST-R (Multi-Pump Fuel Surge Tank – Regulated) is a high-performance fuel management solution designed to prevent fuel starvation in high-powered vehicles during aggressive driving. Ideal for motorsport applications, this surge tank ensures consistent fuel delivery under extreme conditions.
Key Features:
- Integrated Fuel Pressure Regulator: Built-in regulator eliminates the need for an external FPR, simplifying your fuel system.
-
Multi-Pump Compatibility: Supports various configurations:
- Up to 3 Bosch BR540 (DW400) pumps
- Up to 2 Ti Automotive E5LM brushless pumps
- Up to 3 brushless Bosch pumps (DW440)
- Swirl Pot Design: Tangential flow from the supply and return ports reduces aeration and improves pump performance.
- Robust Construction: CNC-machined 6061-T6 aluminum, anodized for corrosion resistance. Compatible with gasoline, ethanol, and methanol.
- Simplified Plumbing: Pumps merge into a single 10AN ORB outlet (pre-installed with -8AN adapter). Includes -6AN adapters for overflow, supply, and return ports.
- Flexible Mounting: Can be mounted to uneven surfaces with included M6 stainless steel socket head bolts.

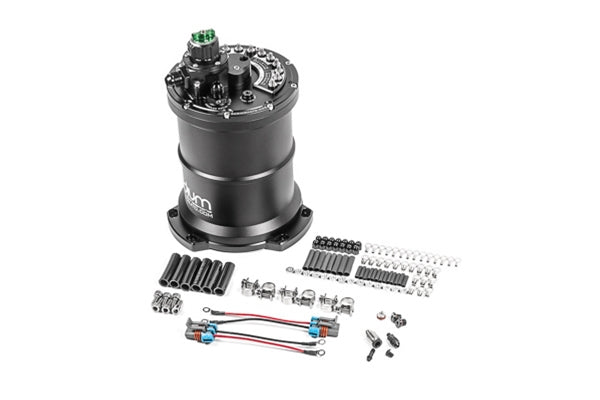

What’s Included:

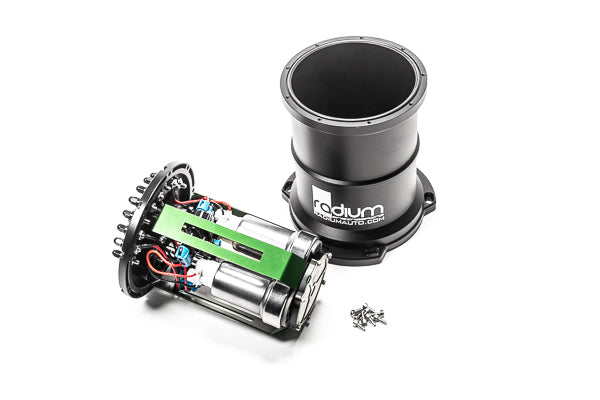

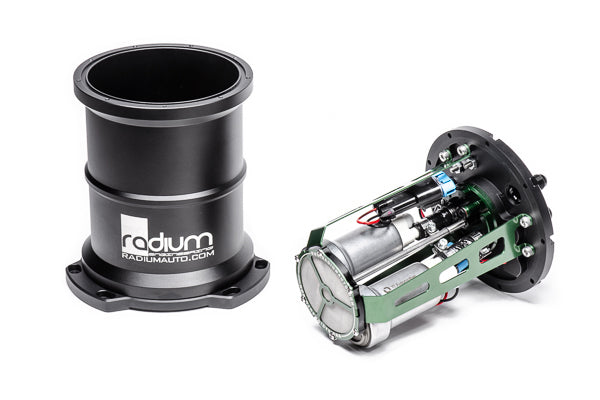

- MPFST-R assembly (fuel pumps not included)
- Anodized aluminum mounting bracket
- Pre-installed AN adapters (-8AN outlet, -6AN supply/return/overflow)
- Stainless steel mounting hardware

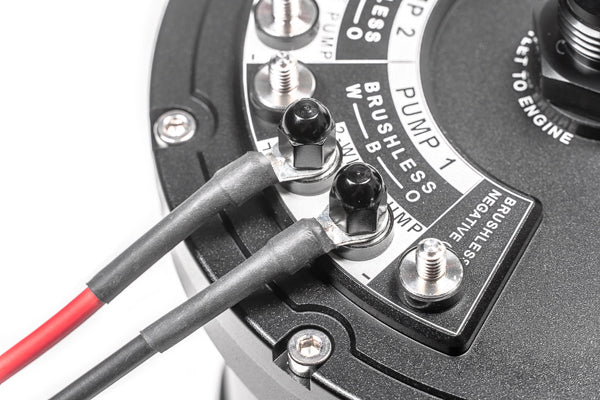

- High-current anti-rotation electrical terminals

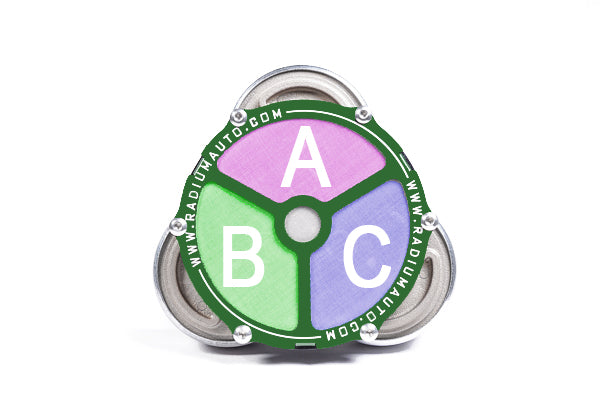

- Internal filtration screens (where applicable)
Optional Accessories (Sold Separately):
- Fuel Level Switch (1/8 NPT): Provides a switched output when fuel level drops by approximately 20%
- Fuel Level Switch + Diagnostic Indicator: Adds visual fuel level feedback for diagnostics

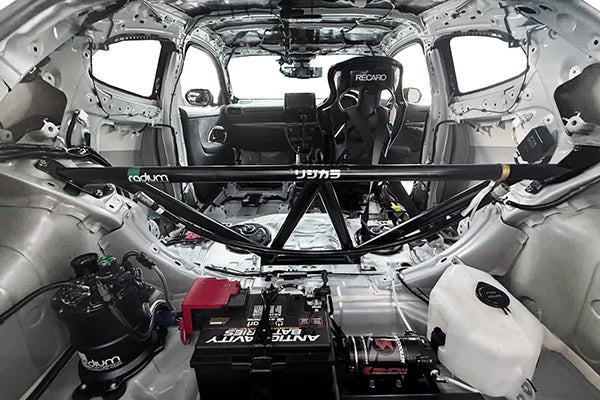

The Radium MPFST-R is the ultimate surge tank solution for high-powered street and track builds, ensuring uninterrupted fuel delivery under all conditions.
