Radium Dual Fuel Pump Hanger Add On - Honda Civic EG EK 92-00/Integra DC2 94-01
Couldn't load pickup availability
Note: No fuel pumps are included and must be purchased separately.
This Radium Engineering fuel hanger add on suits the Radium 20-0790-00 and 20-0792-00 fuel pump hangers for Honda Civic and Integra.

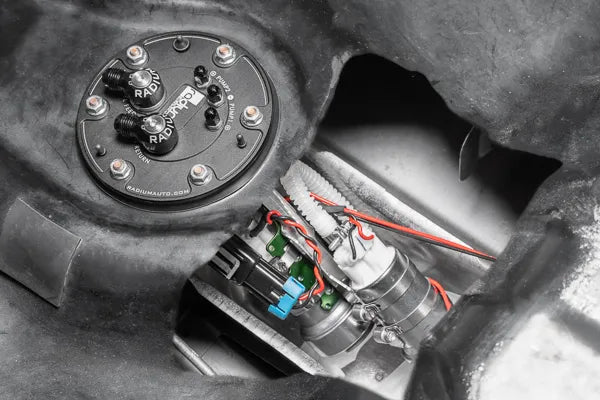

The architecture of this Honda fuel tank is very unique. No 2 pumps can fit into the opening at the same time. Additionally, the angle of insertion combined with the tall collector bowl and shallow tank make dual pump installation rather difficult. It is NOT possible to fit 2 Walbro 39/50 DCSS fuel pumps (F90000267/274/285) next to each other in the Honda fuel tank. The internal OEM collector bowl is physically too narrow. But when installed inline, these large base pumps can fit, as shown.

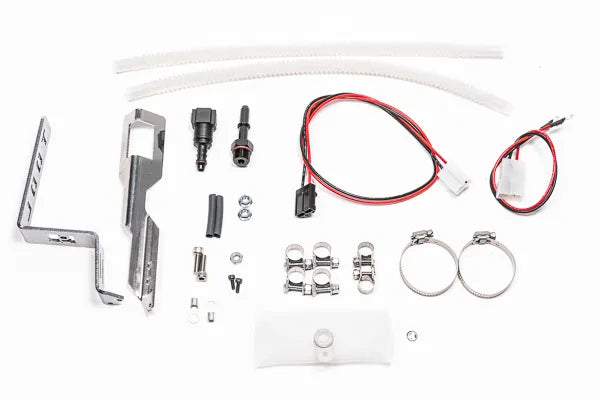

The rear pump assembly is placed in the tank first. A tool is provided to keep this pump back and away while inserting the front pump. An electrical plug and a SAE quick connector eliminate the need to perform tedious assembly before dropping the entire assembly into the tank. Both fuel pump merge into the single 8AN ORB outlet of the fuel hat. And because of the integrated check valves, fuel pump staging is permitted.
FUEL PUMPS
Choosing the best fuel pump is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.
- P/N: 20-0796-00 can be used with the AEM 50-1000, AEM 50-1200, Walbro GSS342, or other pumps with the same physical shape and electrical connector.
- P/N: 20-0797-00 can be used with the Walbro 39/50 DCSS pumps including F90000267, F90000274 or F90000285 pumps.
FEATURES
- Gasoline, Methanol, and E85 Compliant
- Compatible with Various Pumps
- Included Fuel Pump Filter Sock
- Plug and Play Installation
- Bolt-On Stainless Steel Pump Bracket
- Polished Installation Tool
Vehicle Fitment:
- 1992-1995 Honda Civic EG/EH/EJ (with Radium 20-0790-00 or 20-0792-00 fuel pump hanger)
- 1996-2000 Honda Civic EK/EM/EJ (with Radium 20-0790-00 or 20-0792-00 fuel pump hanger)
- 1994-2001 Honda Integra DC2 (with Radium 20-0790-00 or 20-0792-00 fuel pump hanger)
