Radium Dual Bosch 044 Horizontal Mount, Pumps Not Included

Click Here to download installation instructions (PDF) for vertical mount.
Click Here to download installation instructions (PDF) for horizontal mount.

RADIUM DOES NOT OFFER A WARRANTY ON ANY FUEL PUMPS! FUEL PUMPS CAN BE RETURNED WITHIN 30 DAYS OF PURCHASE. SEE TERMS AND CONDITIONS FOR MORE INFORMATION.

A fuel surge tank (FST) is designed to prevent fuel starvation to the engine on vehicles with inadequate fuel tank baffling. The FST fuel pumps feed the fuel rail(s). The volume of fuel inside the surge tank acts as a buffer to always keep the FST pump supplied with fuel. This volume is maintained by the main fuel tank's pump as well as the fuel returning from the fuel pressure regulator. Excess fuel in the surge tank is returned back to the vehicle's main fuel tank.

The surge tank also provides a quick and easy way to upgade any standard fuel system with a compact size. This is an excellent fueling solution for vehicles installing large demand power upgrades such as forced induction.

Both of these dual-pump configurations are ideal for high powered V or H configured engines with dual fuel rails. The anodized 6061 billet aluminum clamps and FST mount directly to the powder coated aluminum plate using stainless countersink bolts. Unlike others on the market, these clamps conductively transfer the fuel pumps thermal energy to the chassis increasing fuel pump longevity. Each pump has a dedicated high quality -6AN PTFE Hose that draws fuel from the bottom of the FST.

Includes

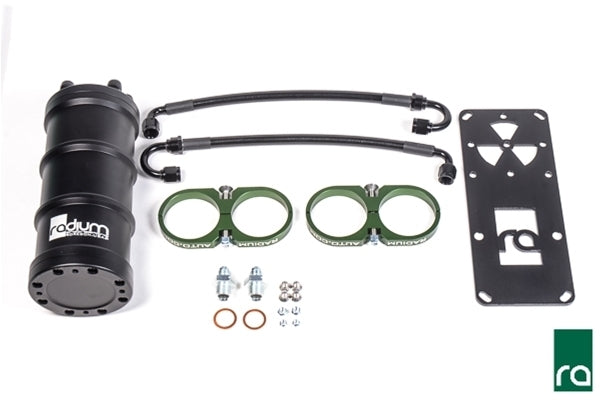

-Machined 6061 Aluminum 1.5 Liter Canister
-Removeable Billet 6061 Aluminum Caps
-6AN Male Fittings (8AN can be purchased separately HERE)
-Adapter Fittings for specified Fuel Pumps
-Billet Aluminum Pump Clamps
-Laser Cut Powder Coated Mounting Bracket
-Non Permeating E85 Compliant 6AN PTFE Hoses
-Stainless Steel Hardware


-To purchase Bosch 0 580 254 044 fuel pumps, click HERE.
-To purchase AEM 50-1005 fuel pumps, click HERE.
-To purchase DW 350iL fuel pumps, click HERE.

Dual External Pumps, Horizontal FST

This FST is only 4 inches tall which is ideal for many applications.

The 2 fuel pump pickups are located at the bottom of the FST. The top port is used for the fuel return back to the main tank.

Dual External Pumps, Vertical FST

This FST includes PTFE pickup tubes that draw fuel from the bottom of the FST.


Each pickup is dedicated to the respective external fuel pump. This enables all of the fittings to be secured to the top cap making for a nice compact plumbing package.

Optional 4-Port Fuel Pump Outlet Manifold:

When plumbing a single hose to the engine, Radium offers a machined aluminum manifold that merges the fuel pump outlets together into a single AN fitting. For the Bosch 044 pumps, there is 20-0463 that retains the Bosch check valves (see picture below). This is necessary if the two fuel pumps will be staged.

All required fittings are included, along with -8AN and -10AN outlet adapters.

Used by professional motorsports teams worldwide:
http://www.flickr.com/photos/radiumengineering/sets/72157631877842400/

CLICK HERE FOR MOUNTING DIMENSIONS
