Best Layout with Best Core Size Designed for the Fastest FF CIVIC TYPE-R(FK8)
Concept
- The K20C engine achieves 320ps with 2.0L displacement, and the boost pressure exceeds 150kPa. Since the stock intercooler’s capacity is insufficient, the engine intake air temperature rises to nearly 90℃.
→HKS intercooler is using a larger size intercooler to maintain cooling performance. - The stock intercooler piping layout has a sharp bend so the intake air does not flow smoothly and causes the boost pressure loss.
→HKS intercooler integrates the inlet side tank of the intercooler and pipe to realize a smooth air flow and reduce air intake loss.
Features

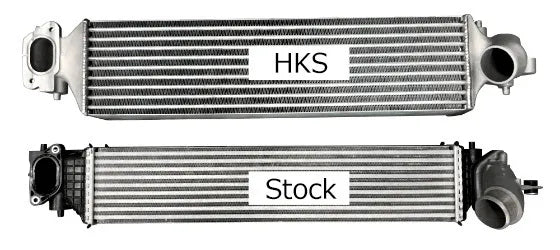

- Newly designed 100mm wide core is approximately 200% of the stock in the core capacity. This large core shows overwhelming cooling performance difference.
Core Size 　★HKS：695mm x 178mm x 100mm　　★Stock：680mm x 143mm x 64mm - Minor modification of the fan shroud and rubber part that comes in contact with the core is required.
| Vehicle | Model | Engine | Model Year | Type | Core Size・Location | Type | Code No. | Remarks |
|---|---|---|---|---|---|---|---|---|
| CIVIC TYPE R | FK8 | K20C | 17/09 -22/08 | R type INTERCOOLER | 695x178x100 | R type | 13001-AH004 | ・Installation requires approx. 4 hours. ・I/C IN & OUT pipes included. |
