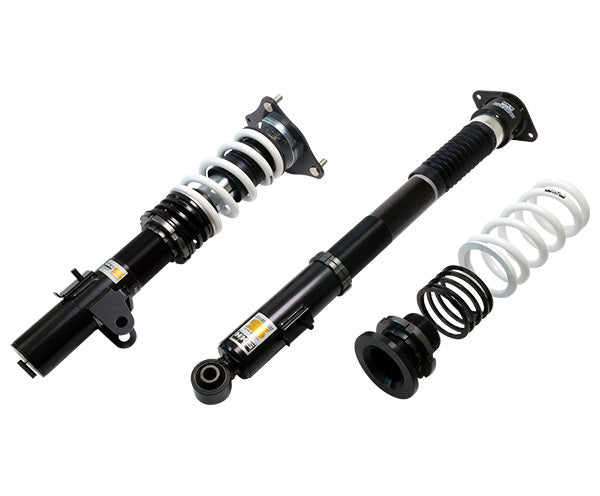

HIPERMAX S, which has evolved damping force characteristics, durability, and aesthetics, offers the best "Driving Comfort" in the history of HKS suspension.
- We have developed a kit for FL5 that combines the popular HIPERMAX S series with a front pillow upper. It allows for camber adjustment. By increasing the tire size and camber angle, you can prevent understeer and enjoy a powerful exterior.
- New technologies such as Dual PVS, Wide Range Needle, and Advanced Bump Rubber provide the best driving performance ever.
- Combined with the direct handling provided by the pillow upper mount, please enjoy the high-dimensional ride quality that HKS has pursued and it is not only fun and comfortable.　We pursue driving performance that lives up to the name TYPE-R, which is flexible yet runs well.
Application
| Engine | K20C |
|---|---|
| Model Year | 22/09 - |
| Remarks |
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | × | 〇 |
| Upper mount | Spherical bearing | Rubber |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | 〇 |
| Helper spring (Spring rate N/mm) | 〇 (19.8) | 〇 (7.6) |
The latest mechanism of the "Dual preload valve system" and "Wide range needle" is employed in the product. In addition, the laser marking of the HKS logo is carried out on the upper. The spring insulator is provided as standard equipment, and there is no need to worry about abnormal sound. Confident 3-year long-term warranty
 | Dual PVS The preload valve system is employed in the product. |
 | 3-year High-durable specification It achieves high durability and low friction through the evolution of the tribology. |
 | Provided Error Canceller Error messages caused by removing the factory electronically controlled suspension can be avoided using the canceller included in the kit. Enjoy the driving experience only possible with vehicle height adjustment. |
