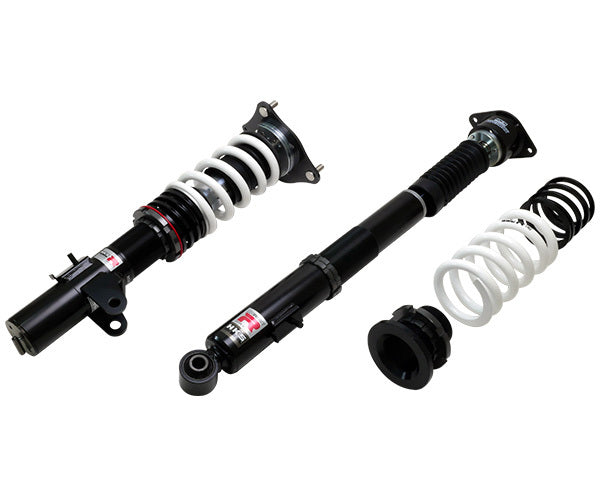

The HIPERMAX R Series has taken handling, traction, and ease of installation to new heights by leveraging the technological advancements developed over the past nine years since the launch of the MAX IV SP. This series delivers unmatched performance, setting a new standard that no other brand can rival.
- Inverted (for Strut) *1 Single Tube
- 30 levels Adjustable Damping
- Shock-body Length Adjustable
- Pillow Ball Upper Mount
- HIPERMAX Exclusive Spring Retainer
- Dual Preload Valve
- HIPERMAX Exclusive "SRF" (Super Response Fluid)
- HIPERMAX Exclusive "LVS" (Low Vibration Spring)
- Specification Changeable
- Overhaul Available
- 2-year or 40,000 km warranty
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | × | ? |
| Upper mount | Spherical bearing | Spherical bearing |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | ? |
| Helper spring (Spring rate N/mm) | ? (19.8) | ? (19.8) |
| Springs Specifications | F | R |
|---|---|---|
| Spring rate N/mm (kgf/mm) | 137 (14.0) | 137 (14.0) |
| Free height (mm) | 150 | 150 |
| Spring type | Straight | Straight |
| Recommended range to change spring rate N/mm (kgf/mm) | +20 (2) | +20 (2) |
| Damper Specifications | F | R |
|---|---|---|
| Damping force (Rebound/Damping) N* | 1172 / 530 | 294 / 280 |
| Default position of dial | 15 | 15 |
| Remaining damper stroke (Rebound/Damping) mm | 58 / 41 | 88 / 61 |
