Utilizes the stock adaptive suspension system and offers a height-adjustable spring.
HKS already developed performance parts for latest of TOYOTA GR SUPRA keeping in mind the concept of total performance. HKS suspension makes it possible to adjusted vehicle height and lower by -45mm maximum compared to stock suspension. It combines the ability to withstand extreme driving and offers a comfortable ride feeling with a sporty lowdown look. Testing was performed on a touge like circuit Gunma Cycling Center also know as Gunsai, with Japanese racing driver Manabu Orido.

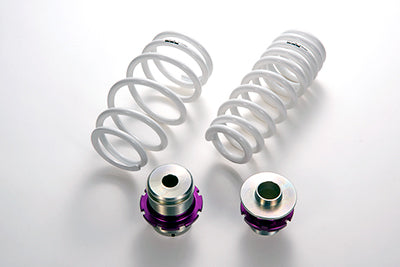

Recently, a lot of high performance cars feature electronic control of damping force adjustment. HKS assumed it would be best to keep stock electronic control system but add an additional flexibility and offers a height adjustable spring. HKS height adjustable springs kits are a great alternative to conventional springs. With included high adjuster it is possible to select different height suiting your car and enjoy more sporty ride.
- The springs having a variable pitch of barrel stabilizes the car body.
- The ride height adjuster can be used with stock lower spring seat. Dust boots can be installed in the same was as stock suspension.
Patent pending [2019-091725] - HKS developed a new rear bump rubber specialy for GR SUPRA with improved durability and better suitable performance for lowered application.
- Stock dust boot won't fit witht he kit, so HKS developed a new one for those who would like to have install it.
| Vehicle | Model | Engine | Year | Spring Rate N/mm (kgf/mm) | Free Length (mm) | Vehicle Height (Highest - Lowest) (mm) | Vehicle height during test (mm) | Upper Mount | Code No. | Remarks |
|---|---|---|---|---|---|---|---|---|---|---|
| GR SUPRA | DB42 | B58 | 19/5- | F=43(4.3) R=117(11.9) | Specially-developed | F=-25(-25 - -48) R=-20(-20 - -53) | F=-25 R=-20 | F=Stock R=Stock | 80280-AT001 | • Modification of bump rubber is required. • Attach the packer when you adjust the front thread length 24 mm or more. • Separate purchase of Suspension Error Canceler (SEC, 45012-AT001) is NOT required. Not compatible with SZ grade. |
| GR SUPRA | DB02 | B58 | 20/4- | F=43(4.3) R=117(11.9) | Specially-developed | F=-29(-29 - -52) R=-24(-24 - -57) | F=-29 R=-24 | F=Stock R=Stock | 80280-AT001 | • Modification of bump rubber is required. • Attach the packer when you adjust the front thread length 24 mm or more. • Separate purchase of Suspension Error Canceler (SEC, 45012-AT001) is NOT required. Not compatible with SZ grade. |
| GR SUPRA | DB22 | B48 | 19/5- | F=43(4.3) R=117(11.9) | Specially-developed | F=-16(-16 - -39) R=-19(-19 - -52) | F=-18 R=-19 | F=Stock R=Stock | 80280-AT001 | • Factory presets set to the height for RZ (DB42/DB02). Recommended setting for SZ-R (DB22) is the height at the test. (Ride height data at the test: F=-18, R=-19) |
