Radium V2 AN ORB Swivel Banjo Fitting, SAE Male EFI Quick Connect
Radium V2 AN ORB Swivel Banjo Fitting, SAE Male EFI Quick Connect
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description

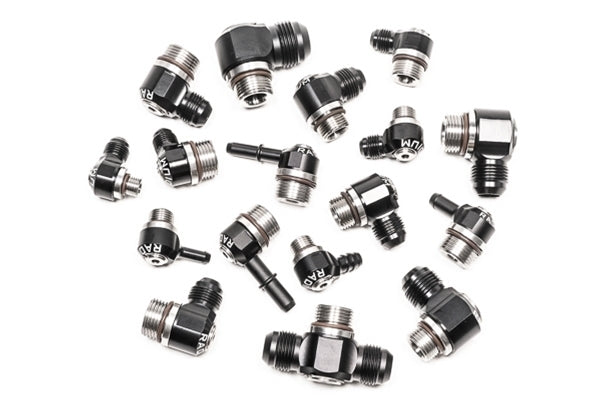

The Radium Engineering 20-1000 V2 AN ORB Swivel Banjo Fittings are a premium low-profile solution for 90-degree fuel and oil connections. Featuring full 360-degree rotation even after installation, these fittings are ideal for tight engine bays where clearance is critical and a fixed fitting simply won't work.
Suitable for high-pressure fuel and oil systems, these fittings are rated to 400 psi and are available in a wide range of AN ORB inlet sizes (4AN through 12AN) paired with SAE imperial and metric male outlets — covering the most common EFI fuel rail, regulator, and oil system port combinations.
Key Features
- 360° swivel rotation — rotates freely even after installation for easy hose routing
- Low profile design — multiple installed height options from 0.797in (20.2mm) depending on configuration
- High pressure rated — suitable up to 400 psi for fuel and oil systems
- Wide size range — 4AN through 12AN ORB inlet, SAE imperial and metric male outlets
- CNC machined — precision fit, anodised aluminium construction
- Made in the USA — Radium Engineering quality throughout
Available Part Numbers
- 20-1000-04313 — 4AN ORB → 5/16in SAE Male — 0.797in (20.2mm)
- 20-1000-06313 — 6AN ORB → 5/16in SAE Male — 0.797in (20.2mm)
- 20-1000-06375 — 6AN ORB → 3/8in SAE Male — 0.797in (20.2mm)
- 20-1000-0610S — 6AN ORB → 10mm SAE Male — 0.797in (20.2mm)
- 20-1000-0612S — 6AN ORB → 12mm SAE Male — 1.019in (25.9mm)
- 20-1000-08313 — 8AN ORB → 5/16in SAE Male — 0.797in (20.2mm)
- 20-1000-08375 — 8AN ORB → 3/8in SAE Male — 0.797in (20.2mm)
- 20-1000-0810S — 8AN ORB → 10mm SAE Male — 1.121in (28.5mm)
- 20-1000-0812S — 8AN ORB → 12mm SAE Male — 1.019in (25.9mm)
- 20-1000-0816S — 8AN ORB → 16mm SAE Male — 1.121in (28.5mm)
- 20-1000-10313 — 10AN ORB → 5/16in SAE Male — 0.797in (20.2mm)
- 20-1000-10375 — 10AN ORB → 3/8in SAE Male — 0.797in (20.2mm)
- 20-1000-1010S — 10AN ORB → 10mm SAE Male — 0.797in (20.2mm)
- 20-1000-1016S — 10AN ORB → 16mm SAE Male — 1.286in (32.7mm)
- 20-1000-10750 — 10AN ORB → 3/4in SAE Male — 1.286in (32.7mm)
- 20-1000-12750 — 12AN ORB → 3/4in SAE Male — 1.286in (32.7mm)
Why Radium Engineering?
- ✔ Designed and manufactured in the USA
- ✔ CNC machined anodised aluminium — precision fit, fuel and oil safe
- ✔ 360° swivel for easy installation in tight engine bays
- ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
- ✔ Exclusively distributed in Australia by Coore
Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. Sold individually. Select your configuration from the variant selector above.
Specifications
- Part Number
- 20-1000-06313
- Brand
- Radium Engineering
