Radium V2 AN ORB Swivel Banjo Fitting, Hose Barb
Radium V2 AN ORB Swivel Banjo Fitting, Hose Barb
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description

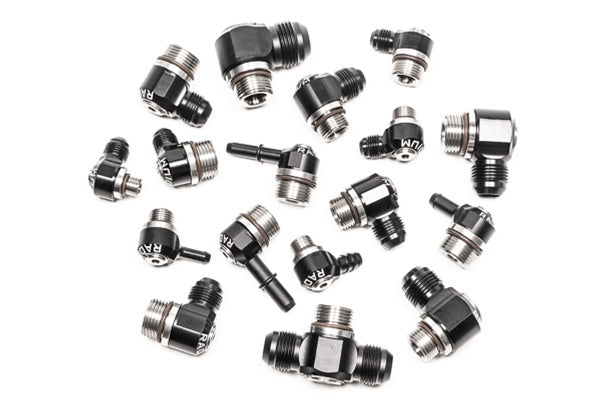

The Radium Engineering 20-1000 V2 AN ORB Swivel Banjo Fittings — Hose Barb series — are a premium low-profile solution for 90-degree fuel and oil connections terminating to hose barb outlets. Featuring full 360-degree rotation even after installation, these fittings are ideal for tight engine bays where clearance is critical and routing flexibility is essential.
Suitable for high-pressure fuel and oil systems, these fittings are rated to 400 psi and are available in a range of AN ORB inlet sizes (4AN through 10AN) paired with 6.5mm, 8.5mm, and 10mm hose barb outlets. One specialised variant (20-1000-0606-85) includes an integrated 6AN male bulkhead for direct bulkhead mounting applications.
Key Features
- 360° swivel rotation — rotates freely even after installation for easy hose routing
- Low profile design — installed heights from 0.797in (20.2mm) depending on configuration
- High pressure rated — suitable up to 400 psi for fuel and oil systems
- Wide size range — 4AN through 10AN ORB inlet, 6.5mm / 8.5mm / 10mm hose barb outlets
- CNC machined — precision fit, anodised aluminium construction
- Made in the USA — Radium Engineering quality throughout
Available Part Numbers
- 20-1000-0465 — 4AN ORB → 6.5mm Barb — 0.797in (20.2mm)
- 20-1000-0485 — 4AN ORB → 8.5mm Barb — 0.797in (20.2mm)
- 20-1000-0665 — 6AN ORB → 6.5mm Barb — 0.797in (20.2mm)
- 20-1000-0685 — 6AN ORB → 8.5mm Barb — 0.797in (20.2mm)
- 20-1000-0610B — 6AN ORB → 10mm Barb — 0.797in (20.2mm)
- 20-1000-0865 — 8AN ORB → 6.5mm Barb — 0.797in (20.2mm)
- 20-1000-0885 — 8AN ORB → 8.5mm Barb — 0.797in (20.2mm)
- 20-1000-0810B — 8AN ORB → 10mm Barb — 1.121in (28.5mm)
- 20-1000-1065 — 10AN ORB → 6.5mm Barb — 0.797in (20.2mm)
- 20-1000-1085 — 10AN ORB → 8.5mm Barb — 0.797in (20.2mm)
- 20-1000-1010B — 10AN ORB → 10mm Barb — 0.797in (20.2mm)
- 20-1000-0606-85 — 6AN ORB → 8.5mm Barb to 6AN Male Bulkhead — 0.797in (20.2mm)
Why Radium Engineering?
- ✔ Designed and manufactured in the USA
- ✔ CNC machined anodised aluminium — precision fit, fuel and oil safe
- ✔ 360° swivel for easy installation in tight engine bays
- ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
- ✔ Exclusively distributed in Australia by Coore
Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. Sold individually. Select your configuration from the variant selector above.
Specifications
- Part Number
- 20-1000-0685
- Brand
- Radium Engineering
