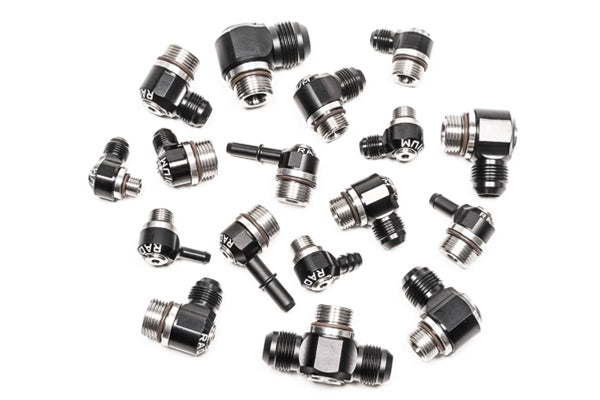

Radium V2 AN ORB Swivel Banjo Fitting, Hose Barb
Couldn't load pickup availability
The Radium Engineering 20-1000 V2 AN ORB Swivel Banjo Fittings — Hose Barb series — are a premium low-profile solution for 90-degree fuel and oil connections terminating to hose barb outlets. Featuring full 360-degree rotation even after installation, these fittings are ideal for tight engine bays where clearance is critical and routing flexibility is essential.
Suitable for high-pressure fuel and oil systems, these fittings are rated to 400 psi and are available in a range of AN ORB inlet sizes (4AN through 10AN) paired with 6.5mm, 8.5mm, and 10mm hose barb outlets. One specialised variant (20-1000-0606-85) includes an integrated 6AN male bulkhead for direct bulkhead mounting applications.
Key Features
- 360° swivel rotation — rotates freely even after installation for easy hose routing
- Low profile design — installed heights from 0.797in (20.2mm) depending on configuration
- High pressure rated — suitable up to 400 psi for fuel and oil systems
- Wide size range — 4AN through 10AN ORB inlet, 6.5mm / 8.5mm / 10mm hose barb outlets
- CNC machined — precision fit, anodised aluminium construction
- Made in the USA — Radium Engineering quality throughout
Available Part Numbers
| Part Number | Configuration | Installed Height |
|---|---|---|
| 20-1000-0465 | 4AN ORB → 6.5mm Barb | 0.797in (20.2mm) |
| 20-1000-0485 | 4AN ORB → 8.5mm Barb | 0.797in (20.2mm) |
| 20-1000-0665 | 6AN ORB → 6.5mm Barb | 0.797in (20.2mm) |
| 20-1000-0685 | 6AN ORB → 8.5mm Barb | 0.797in (20.2mm) |
| 20-1000-0610B | 6AN ORB → 10mm Barb | 0.797in (20.2mm) |
| 20-1000-0865 | 8AN ORB → 6.5mm Barb | 0.797in (20.2mm) |
| 20-1000-0885 | 8AN ORB → 8.5mm Barb | 0.797in (20.2mm) |
| 20-1000-0810B | 8AN ORB → 10mm Barb | 1.121in (28.5mm) |
| 20-1000-1065 | 10AN ORB → 6.5mm Barb | 0.797in (20.2mm) |
| 20-1000-1085 | 10AN ORB → 8.5mm Barb | 0.797in (20.2mm) |
| 20-1000-1010B | 10AN ORB → 10mm Barb | 0.797in (20.2mm) |
| 20-1000-0606-85 | 6AN ORB → 8.5mm Barb to 6AN Male Bulkhead | 0.797in (20.2mm) |
Why Radium Engineering?
- ✔ Designed and manufactured in the USA
- ✔ CNC machined anodised aluminium — precision fit, fuel and oil safe
- ✔ 360° swivel for easy installation in tight engine bays
- ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
- ✔ Exclusively distributed in Australia by Coore
Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. Sold individually. Select your configuration from the variant selector above.
