Description
Radium Fuel Surge Tank Install Kit - Ford Focus ST / RS EcoBoost (LW / LZ)
Suits:
- 2013-2018 Ford Focus ST — LW / LZ (EcoBoost)
- 2016-2017 Ford Focus RS — LZ (EcoBoost)
The Radium Engineering Fuel Surge Tank Install Kit is a comprehensive installation package for fitting a Radium FST-R (Fuel Surge Tank - Regulated) to the MK3 Ford Focus ST and RS. The FST-R is sold separately. If auxiliary port injection is also required, consider the port injection FST kit 20-0366-00 instead.

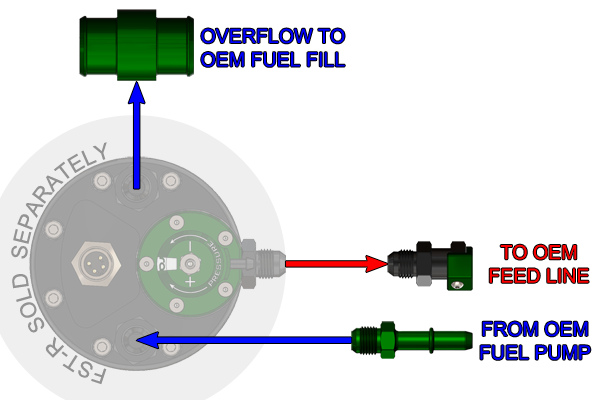

The FST-R pump replaces and mimics the OEM fuel supply line, feeding the factory HPFP. The OEM low-pressure fuel pump(s) are redirected to supply the FST, protecting the FST-R pump from fuel starvation. Overflow fuel returns to the OEM fuel filler hose via an included billet adapter. The integrated regulator on the FST-R can be vacuum referenced for 1:1 fuel pressure, or run static to mimic the stock system.

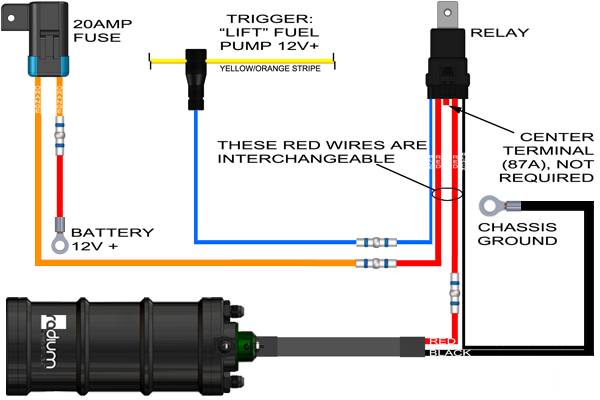

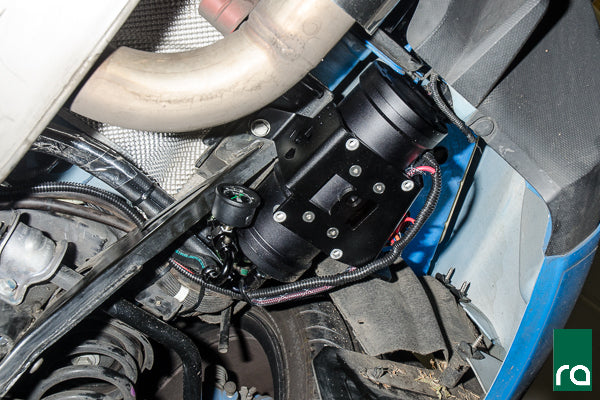

The FST-R mounts in a collision-safe area under the vehicle, in front of the rear bumper support, secured to OEM mounting points via an anodised aluminium bracket. Heat tape is included to reflect exhaust heat. Wiring uses Raychem solderless butt splices with a weatherproof fuse and relay — no soldering required, installs in under 30 minutes.

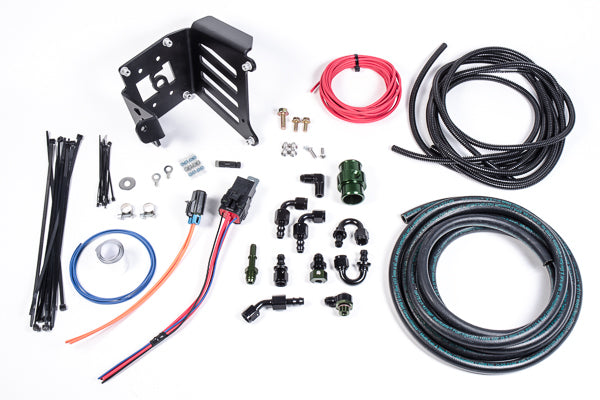

Kit Includes
- Anodised aluminium MK3 Focus FST mounting bracket
- Aluminium Push Lok 6AN hose ends
- AN and OEM style adapter fittings
- Vapor Shield 3/8" (6AN) EFI hose
- Wiring components with relay, fuse, and Raychem solderless butt splices
- Stainless steel hardware
Required (sold separately)
- Radium FST-R (Fuel Surge Tank - Regulated)
- A means of adjusting FST-R fuel pressure — via COBB Accessport OBDII software, or Radium 20-0152 installed on the FST-R outlet port
Part Number:
- 20-0365 — Radium Fuel Surge Tank Install Kit (Ford Focus ST LW/LZ 2013-2018 / Focus RS LZ 2016-2017)
Why Radium Engineering?
- ✅ Manufactured in the USA to motorsport-grade tolerances
- ✅ CNC-machined billet aluminium components built for performance and longevity
- ✅ Trusted by high-power build tuners and race teams worldwide
- ✅ Bolt-on fitment — no cutting, drilling, or permanent modifications required
- ✅ Compatible with E85, pump petrol, and flex fuel sensor integration
Specifications
- Part Number
- 20-0365
- Brand
- Radium Engineering
