Radium Fuel Hanger Surge Tank (FHST), Audi R8 / Lamborghini Gallardo / Huracan
Couldn't load pickup availability
The Radium Engineering 20-0860 Fuel Hanger Surge Tank (FHST) is a drop-in aftermarket fuel pump solution for the Audi R8 and Lamborghini Gallardo / Huracan platform. Designed to independently supply fuel to a port injection system, the FHST leaves the OEM direct injection fuel system completely undisturbed — the factory pump, filter, FPR, and venturi jet pumps all continue to operate as standard.
The integrated surge tank canister ensures a constant fuel reserve is maintained around the aftermarket pump, eliminating fuel starvation under hard cornering, acceleration, or low fuel conditions — critical for high-power and track applications.
How the FHST Works

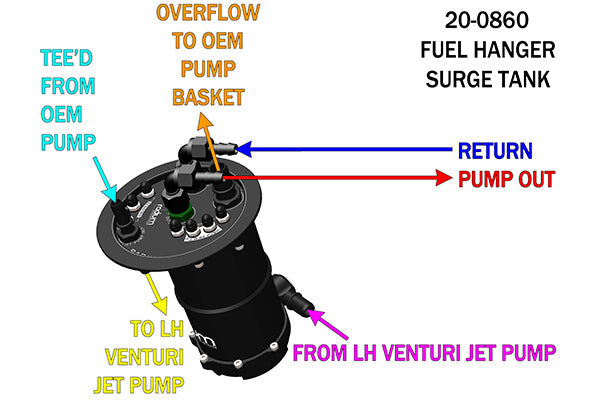

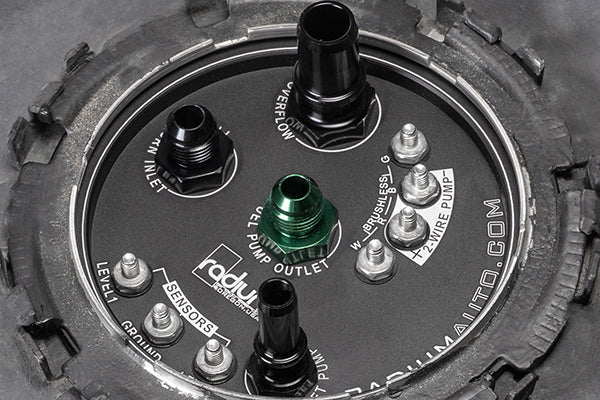

The FHST drops into the LH opening of the fuel tank — the opposing side of the OEM fuel pump on the RH side. It does not disrupt any aspect of the OEM fuel system and retains all OEM fuel level sensors. The FHST canister is supplied with fuel from three independent sources:
- LH OEM venturi jet pump — now fills the FHST canister first; overflow bleeds into the OEM pump basket as factory
- Aftermarket FPR return — returning fuel enters the canister through a diverter to prevent aeration and fuel foaming
- Three 1-way fill valves — flow 355LPH each (1,065LPH total); allow fuel in but not out, maintaining the surge reserve
Plumbing

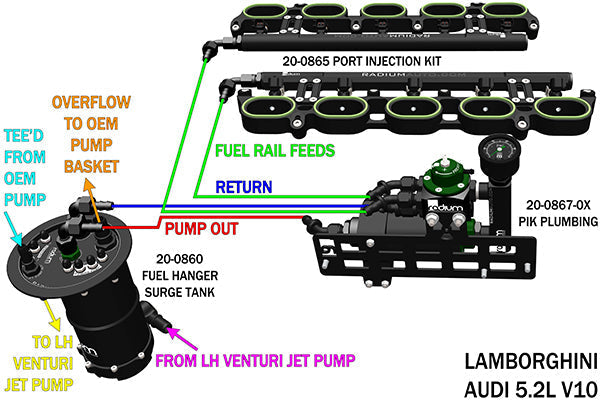

For Lamborghini Gallardo LP and Gen 1 Audi R8 (Type 42) vehicles, this FHST is used in conjunction with the Radium 20-0865 Port Injection Fuel Rail Kit and the Radium 20-0867-03 or 20-0867-05 Port Injection Plumbing Kit. For Lamborghini Huracan and Gen 2 Audi R8 (Type 4S) vehicles, consult with your tuner to configure the system for your specific application.
Electrical

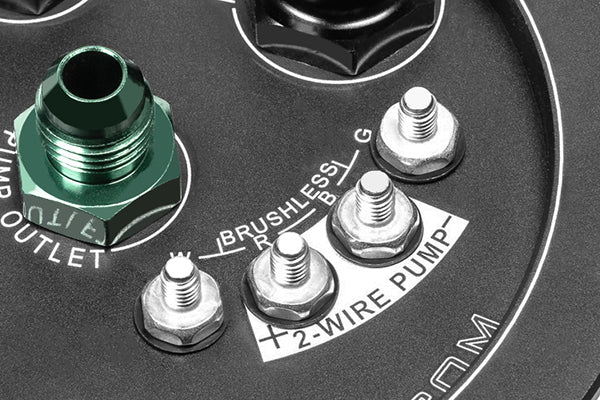

Custom designed stainless steel electrical studs handle the high current demands of modern high-flow fuel pumps. Connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodised aluminium acorn nuts prevent accidental short circuiting. In-tank wiring is insulated with chemically resistant ETFE. A relay kit (such as Radium 17-0031) is recommended to drive the FHST pump.
Key Features
- Drop-in installation — fits LH fuel tank opening, no cutting or permanent modification required
- OEM system undisturbed — factory DI pump, filter, FPR, and venturi jets all continue to operate as standard
- Surge tank functionality — 1,065LPH total fill capacity via three 1-way valves, eliminates fuel starvation
- Brushless pump compatible — supports the latest brushless high-flow pump technology
- High current electrical hardware — stainless studs with hermetically sealed, fuel-proof connections
- OEM fuel level sensors retained — factory gauge functionality preserved
- Anodised aluminium construction — lightweight, corrosion resistant, fuel safe
- E85 and alcohol fuel safe — compatible with gasoline, methanol, ethanol, and E85
- ETFE insulated in-tank wiring — chemically resistant throughout
Compatible Fuel Pumps
Requires a single aftermarket fuel pump (sold separately):
- Walbro F90000267 (sock filter included in kit)
- Walbro F90000274 (sock filter included in kit)
- Walbro F90000285 (sock filter included in kit)
- Walbro F90000295 (sock filter included in kit)
- Walbro GSS342 (sock filter included in kit)
- AEM 50-1200 (sock filter included in kit)
- Ti Automotive BKS1001 Brushless (sock filter included in kit)
- Bosch BR540 (sock filter included from pump manufacturer)
- Deatschwerks DW400 (sock filter included from pump manufacturer)
- Deatschwerks DW440 Brushless (sock filter included from pump manufacturer)
- Protec 11928 Brushless (sock filter included from pump manufacturer)
- Fuelab 49614 Brushless (sock filter included from pump manufacturer)
Vehicle Fitment
- Audi R8 Gen 1 (Type 42)
- Audi R8 Gen 2 (Type 4S)
- Lamborghini Gallardo LP550-2
- Lamborghini Gallardo LP560-4
- Lamborghini Gallardo LP570-4
- Lamborghini Huracan LP580-2
- Lamborghini Huracan LP610-4
- Lamborghini Huracan LP640-4
- Lamborghini Huracan EVO
- Lamborghini Huracan STO
- Lamborghini Huracan Tecnica
Available Part Numbers
- 20-0860 — Fuel Hanger Surge Tank (FHST), Audi R8 / Lamborghini Gallardo / Huracan
Why Radium Engineering?
- ✔ Designed and manufactured in the USA
- ✔ Drop-in installation — OEM system completely undisturbed
- ✔ 1,065LPH surge capacity — eliminates fuel starvation under all conditions
- ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
- ✔ Exclusively distributed in Australia by Coore
Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. Fuel pump sold separately. Relay kit 17-0031 recommended. For Gallardo LP and R8 Gen 1 applications, pair with Radium 20-0865 and 20-0867 kits. Professional installation recommended.
