Radium Distribution Block 3 x 8AN ORB to 1 x 10AN ORB w/Fittings
Radium Distribution Block 3 x 8AN ORB to 1 x 10AN ORB w/Fittings
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description

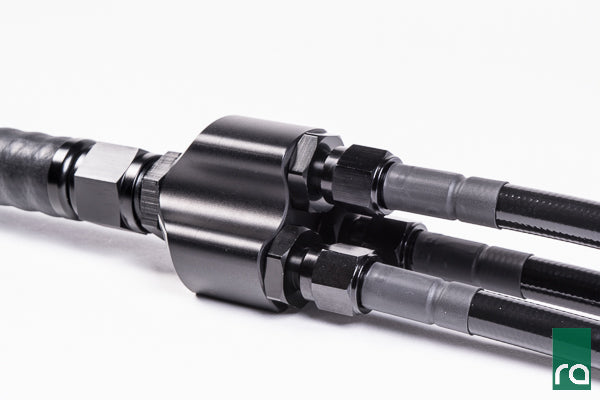

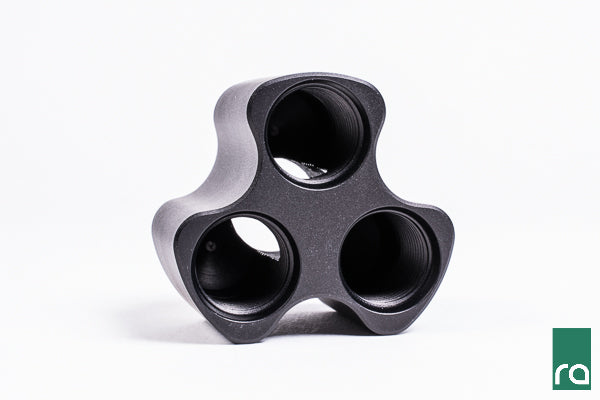

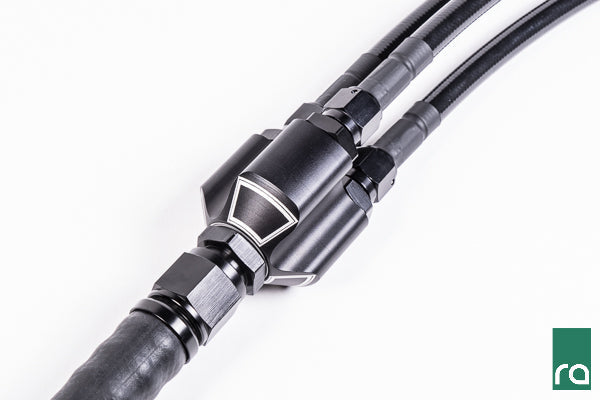

CNC-machined fuel distribution block with three 8AN ORB ports and one 10AN ORB port. Engineered by Radium Engineering to provide the most direct path for unrestricted fuel flow in high-performance fuel systems with versatile plumbing configurations.
Key Features
- ✓ CNC-machined 6061 aluminum construction
- ✓ Three 8AN ORB female ports on one side
- ✓ One 10AN ORB female port on opposing side
- ✓ Includes complete fitting kit for 6AN-8AN-10AN combinations
- ✓ Anodized finish for corrosion resistance
- ✓ Compatible with all fluids: alcohol, gasoline, coolant, water, air, oil
- ✓ Universal fitment for custom fuel system plumbing
- ✓ Professional-grade motorsport component
- Application: Universal - fuel system distribution
- Part Number: 20-0237
- Construction: CNC-machined 6061 aluminum
- Ports: 3x 8AN ORB female, 1x 10AN ORB female
- Finish: Anodized for corrosion resistance
- Fluid Compatibility: Gasoline, E85, alcohol, coolant, water, air, oil

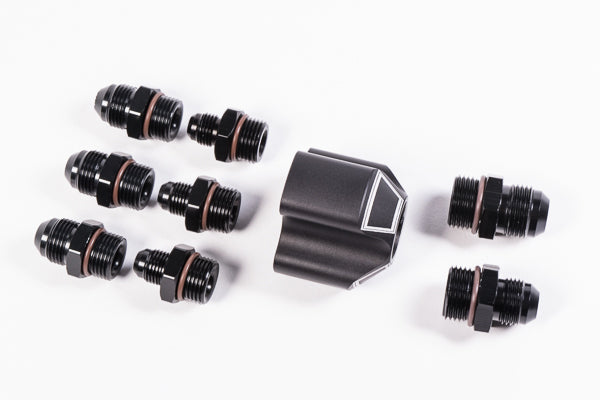

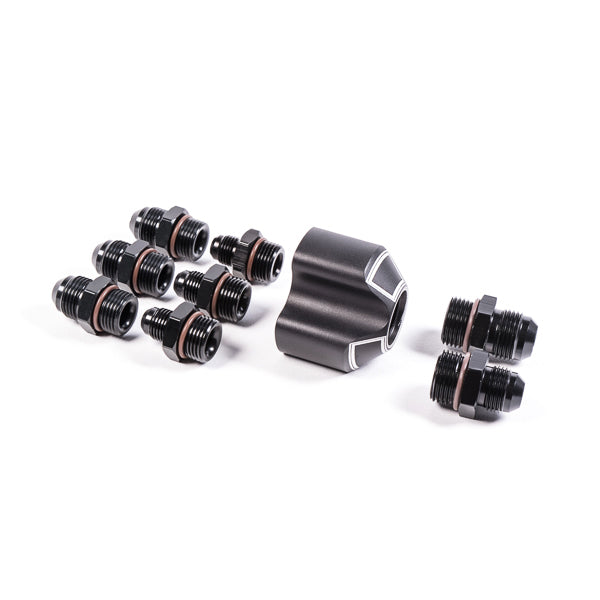

Includes
- Aluminum threaded distribution block (x1)
- 8AN ORB to 6AN male fitting (x3)
- 8AN ORB to 8AN male fitting (x3)
- 10AN ORB to 8AN male fitting (x1)
- 10AN ORB to 10AN male fitting (x1)
Applications
Ideal for custom high-performance fuel systems requiring distribution from a single large feed line to multiple smaller lines. Perfect for fuel rail plumbing, surge tank installations, or any application requiring versatile AN fitting configurations.
Installation Note: Use oil lubrication on O-rings prior to installing fittings for proper sealing.
