Paragon 2-piece Rotors Front Pair 320mm x 25mm- Honda Civic Type R FD2
Paragon 2-piece Rotors Front Pair 320mm x 25mm- Honda Civic Type R FD2
- Secure checkout
- 14-day returns
- Genuine parts
- Melbourne-based support
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Vehicle fitment
This part is listed to fit the following vehicles.
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description
Direct bolt-on without any modifications and designed to work flawlessly with OEM ABS and brake system while maintaining factory brake bias. Compatible with OEM brake pads or aftermarket pads with the same pad depth (D)
Directional ventilation vanes for optimal cooling performance, runs up to 30% cooler than O.E. rotors and increase cooling efficiency by up to 30%
Floating 2-piece design
Minimizing brake fade & judder during extended sessions
Weighs 13.68 lbs (6.21 kg)
Rotor to hat mounting system: D-Bobbin (long) - 10 bolt
Direct replacement of: Honda OEM part # 45251SNWJ11
Includes:

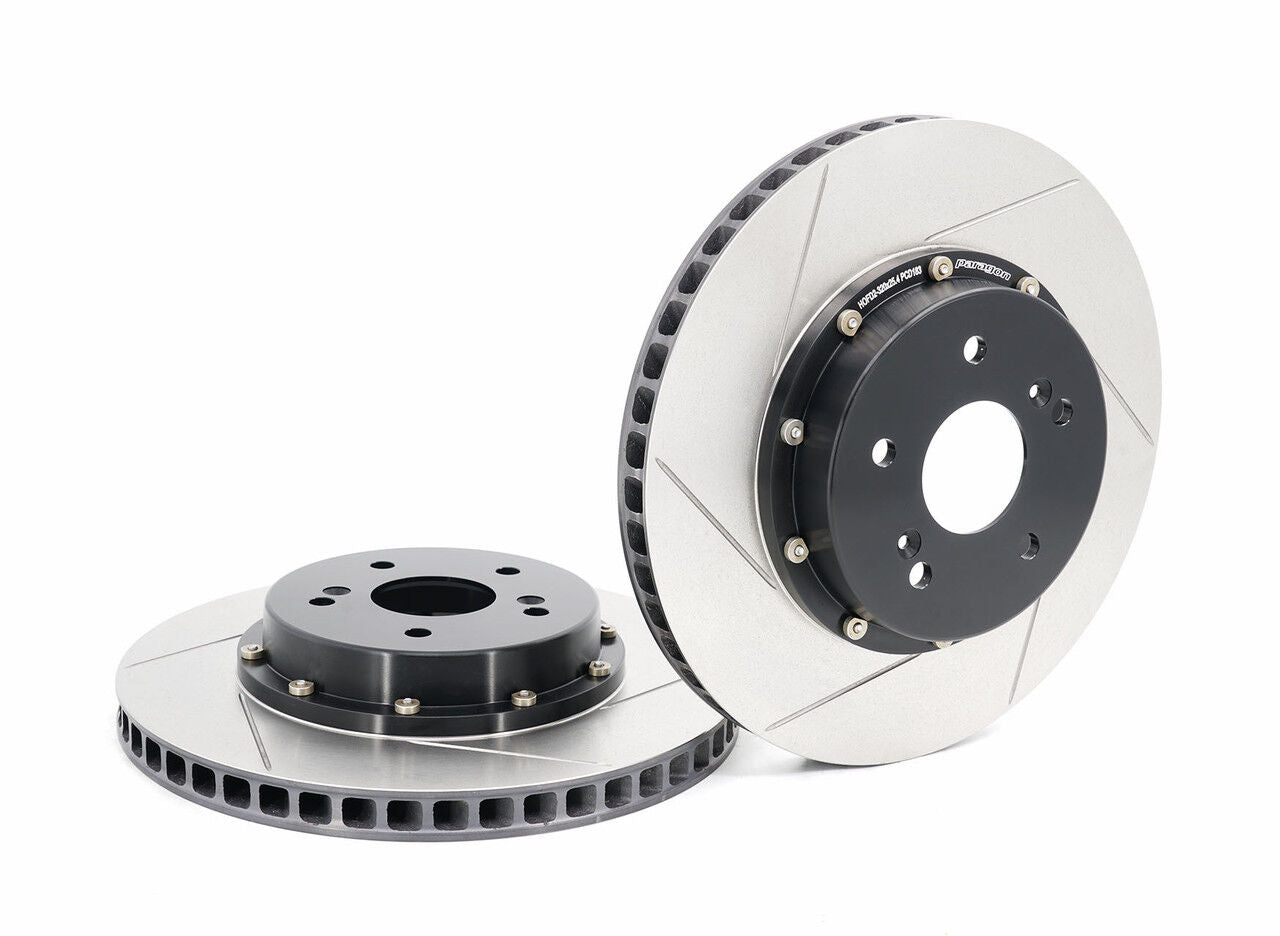

One pair of Paragon Performance 320mm x 25mm (12.60” x 0.98”) 2-piece rotor assemblies with black hard coat/hard anodized 6061-T6 aerospace grade aluminum hats, stainless steel bobbins, and anti-rattle clips (assembled and ready to install)
Detailed installation manual
Specifications:
- Diameter: 320mm (12.60")
- Thickness (new): 25mm (0.98")
- Thickness (min.): 23mm (0.91")
- Type: 2-piece floating
- Face Pattern: Slotted
- Vented / Solid: Directional ventilated
- Number of Vanes: 48
- Hat Material: 6061-T6 aluminum
- Friction Ring Material: CM-250 high carbon alloy cast iron
- Rotor Finish: CBN turned
- Weight (per rotor): 14.09 lbs (6.39 kg)
Specifications
- Part Number
- P2R.019.320.250.19600.08.03.01.F
- Brand
- Paragon Performance Brakes
