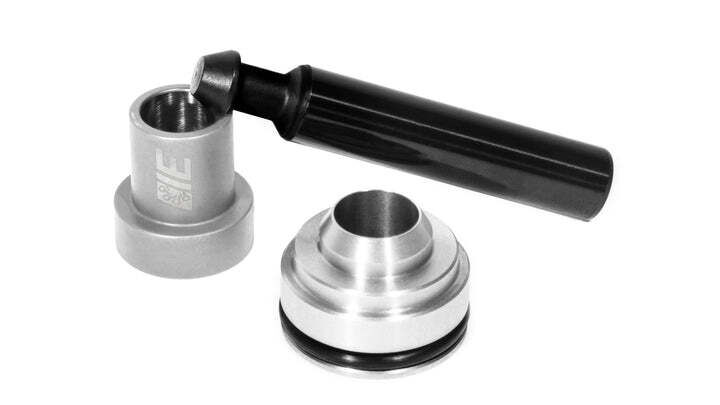

Integrated Engineering HPFP Internal Upgrade Kit - Audi A6/A7 C7/S4/S5 B8/B8.5/Q5/SQ5 8R

IE's HPFP internals upgrade kit for the Audi 3.0TFSI Supercharged engines is perfect for the DIY user looking to upgrade their factory-equipped HPFP pump body with new higher flowing internals. These USA-engineered and manufactured parts will reliably transform your stock pump housing into a high-flow fuel pump for use on dual pulley ECU tunes to provide enough flow for ethanol fuel blends. The 11.67mm piston is the largest sized diameter possible within the fuel-pump body.

The 3.0TFSI HPFP is an integral part of the direct injection fuel system and provides exceptionally high-pressure (exceeding 2900psi) to the injectors. When running dual pulley upgrades on ethanol fuel, the stock HPFP internal volume becomes the limiting factor. IE's HPFP internals install into your factory pump housing and increase the bore and piston size of the pump internals, allowing more flow, delivering more fuel, and allowing for more horsepower & torque.

Every piston and cylinder is CNC machined to exacting sizes, assembled, and measured as a matching set in-house. Tolerances are hand-verified using specialized measurement tools and verified down to 0.00005 of an inch to ensure reliability and proper function.

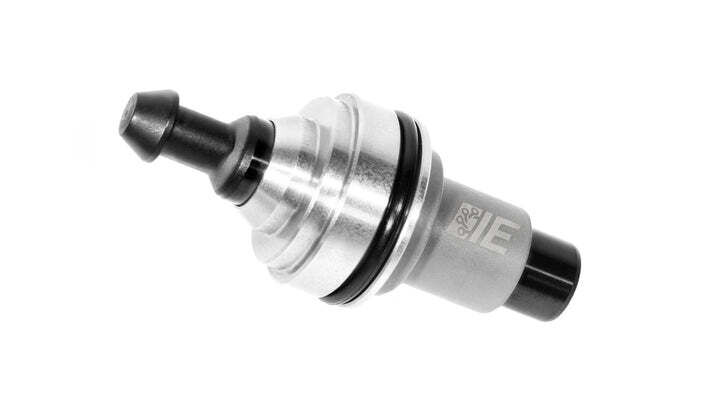

Many aftermarket options use a stepped-diameter piston in a cost-saving effort to reuse the factory seal. This design dramatically reduces the contact between the pin and cylinder leading to increased wear. IE HPFP assemblies use a constant diameter pin which maintains its size through the entire piston shaft. This engineering detail increases the contact between the pin and cylinder by over 50%, increasing pin stability and an even greater displacement.

DLC (diamond-like carbon coating) combines hardness and low friction, providing excellent wear properties and self-lubrication behavior that drastically extends the life of the tool steel piston.

The cylinder can see up to 19000 strokes a minute and is lubricated by fuel only. Our tool steel cylinder is infused with nitrogen atoms into the atomic structure of the outer surface of the component, increasing surface hardness and wear properties drastically. The thickness and quality of every nitride production batch are independently verified in a specialty lab.

Our own CNC-machined seal housing is home to an incredibly reliable molybdenum disulphide seal, which is ideal for reducing friction and maintaining stiffness. The seal is spring energized to increase stregnth and provide constant outward pressure. The body is sealed to the pump with a quality Buna-N (acrylonitrile butadiene) rubber o ring, ensuring it will hold up against heat and a wide range of fuels. What may seem like minor features add up to ensure long life and a trouble-free operation.

Every IE internal kit is run on our own application-specific fuel pump dyno to verify proper function and break-in before being packaging. This strict QC process, combined with our 100% in-house CNC machining and top-shelf components, is why IE HPFPs have earned their rock-solid reputation for extreme reliability.

Vehicle Fitment:

• 2010-2016 Audi A6 C7 3.0TFSI Supercharged (non-CREC)
• 2010-2016 Audi A7 C7 3.0TFSI Supercharged (non-CREC)
• 2008-2017 Audi Q5 8R 3.0TFSI Supercharged
• 2008-2017 Audi SQ5 8R 3.0TFSI Supercharged
• 2009-2016 Audi S4 B8/B8.5 3.0TFSI Supercharged
• 2013-2015 Audi S5 B8.5 3.0TFSI Supercharged
