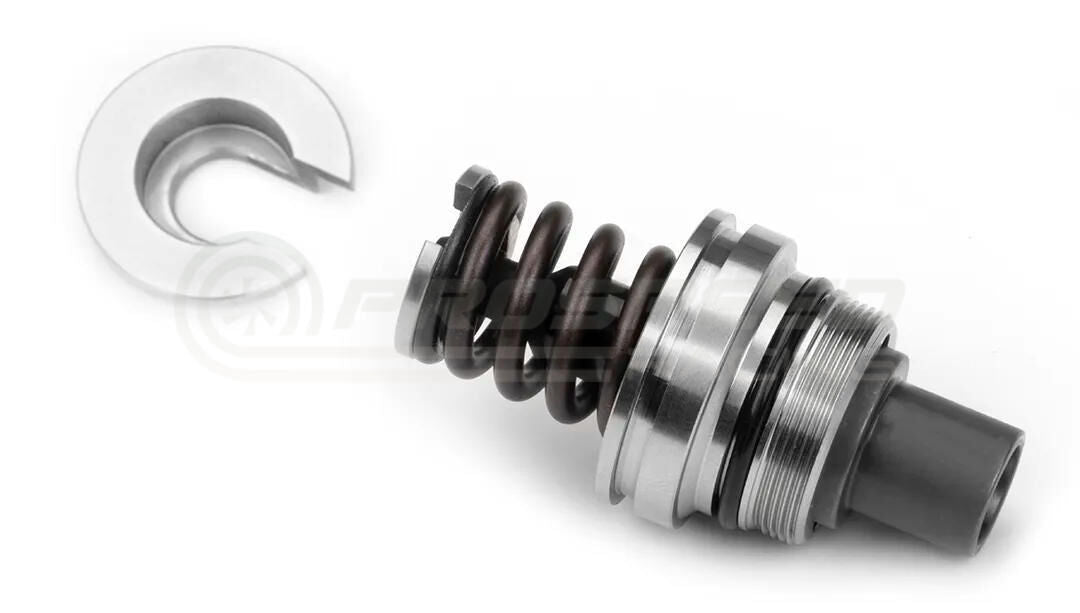

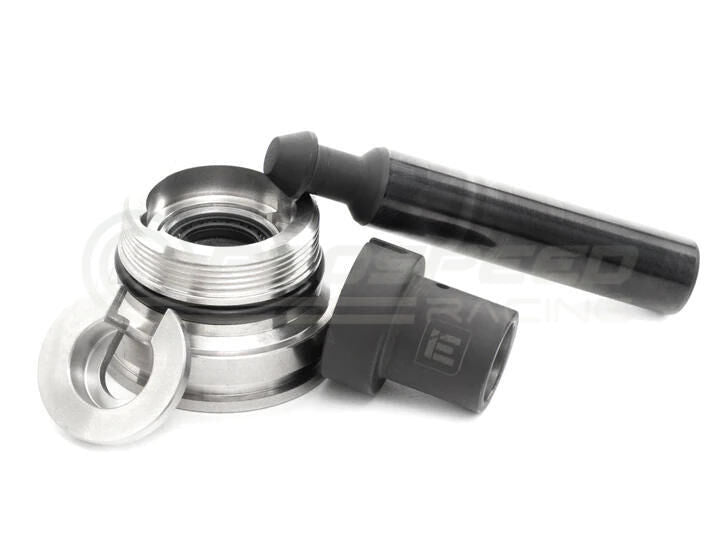

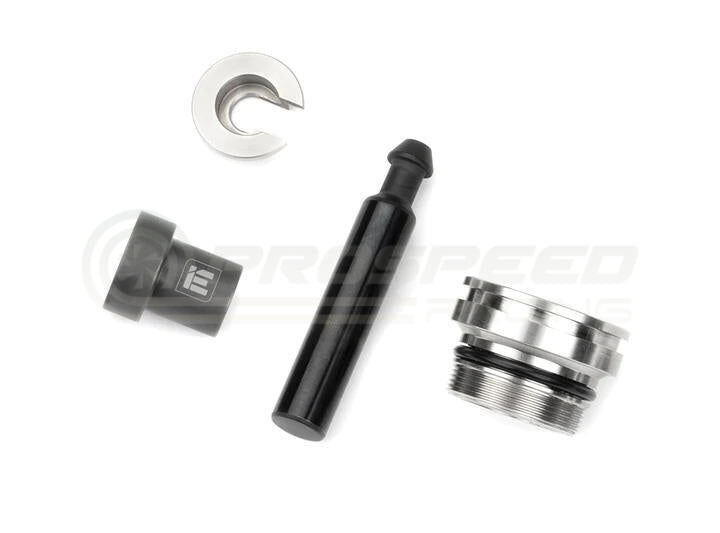

Integrated Engineering High Pressure Fuel Pump (HPFP) Upgrade Kit - Audi A3, S3 8V/TT, TTS 8S/VW Golf GTI, R Mk7 (EA888)

NOTE: Listing is for fuel pump internals only, not for full fuel pump assembly

The IE MQB HPFP upgrade kit unlocks fuel delivery for ethanol, larger turbos, and our TrueFlex ECU tunes for the VW & Audi MK7 & 8V 2.0T Gen 3 engines. The piston and cylinder assembly is the largest volume possible within the stock fuel pump body. Top-quality components and our strict QC process ensure extreme reliability. Increase your fueling overhead and enjoy worry-free HPFP operation for your MQB 2.0L turbocharged engine.

ADDED DISPLACEMENT

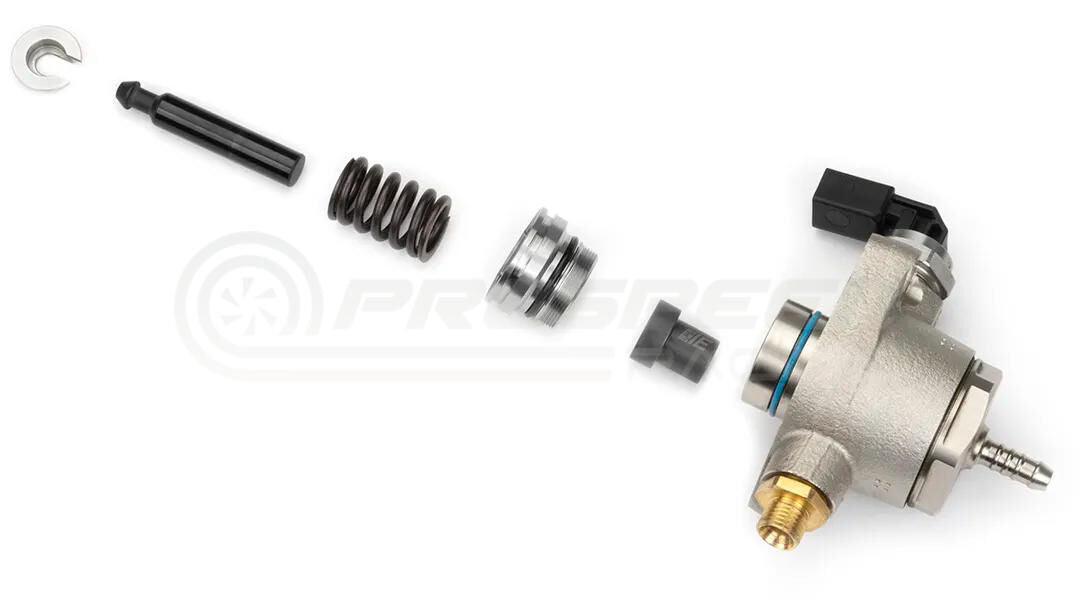

Your HPFP is an integral part of the MQB platform direct injection (DI) system and provides exceptionally high-pressure fuel (exceeding 2900psi) to the injectors. When running turbo upgrades or ethanol fuel, the stock HPFP internal volume becomes the limiting factor when increasing power. IE's HPFP internals install into your factory pump housing and increase the bore and piston size of the pump internals, allowing more flow, delivering more fuel, and allowing for more horsepower & torque.

FLOW TESTING

Upgrading to IE's HPFP reliably increases the flow rate of the high-pressure pump for more tuning headroom to increase power safely. The result is a maximum gain of 38.58% over stock!

RELIABILITY

Every piston and cylinder is CNC machined to exacting sizes, assembled, and measured as a matching set in-house. Tolerances are hand-verified using specialized measurement tools and verified down to 0.00005 of an inch to ensure reliability and proper function. These extreme manufacturing and QC processes are the foundation that has built IE’s leading reputation in HPFP reliability and the popular choice for anyone wanting worry-free operation.

Engineered & manufactured in the USA

PUMP DYNO VERIFICATION

IE HPFP designs are verified and torture-tested on our own application-specific fuel pump dyno. This machine is able to replicate countless miles and various RPM situations to substantiate every detail of the HPFP design. This strict engineering process, combined with our 100% in-house CNC machining, obsessed quality control, and top-shelf components is why IE HPFP Kits have earned their esteem and reputation for reliability.

INCLUDED LIMITED WARRANTY

Due to the extreme machining and coating tolerances, Integrated Engineering offers a limited warranty on this product:
Six months from the day of purchase (unlimited miles) for MQB internal HPFP kits.

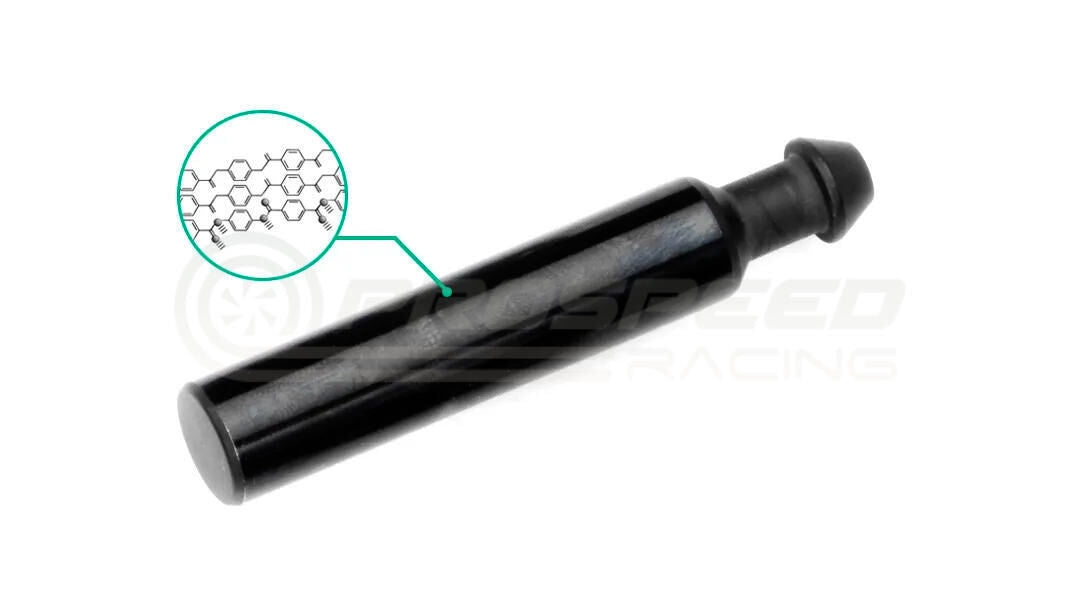

DLC COATED

DLC (diamond-like carbon coating) is an advanced coating process applied to the tool steel pin. This coating combines hardness and low friction, providing excellent wear properties and self-lubrication behavior that drastically extends pin life.

CONSTANT DIAMETER PIN

Many aftermarket HPFP options use a stepped-diameter piston in a cost-saving effort to reuse the factory seal. This design dramatically reduces the contact between the pin and cylinder, causing instability of the pin stroke leading to increased wear. IE’s uniquely designed constant diameter pinmaintains its larger size through the entire piston shaft. This engineering detail increases the contact between the pin and cylinder by over 50% compared to kits which do not replace the seal and nut, increasing pin stability.

NITRIDED CYLINDER

The cylinder can see up to 19000 strokes a minute with an astonishingly thin tolerance and is lubricated by fuel only. Our tool steel cylinder is nitrided to guarantee it can withstand this torture. This advanced process infuses nitrogen atoms into the atomic structure of the outer surface of the component, increasing surface hardness and wear properties drastically. The thickness and quality of every nitride production batch are independently verified in a specialty lab.

TITANIUM RETAINER

Our ultra-lightweight FEA optimized titanium retainer reduces the chance of valve float while securing the spring to the new IE pump assembly. The internal kit is designed correctly for the factory spring rate, avoiding the need for a stiffer spring that adds unnecessary pressure and wear on the camshaft.

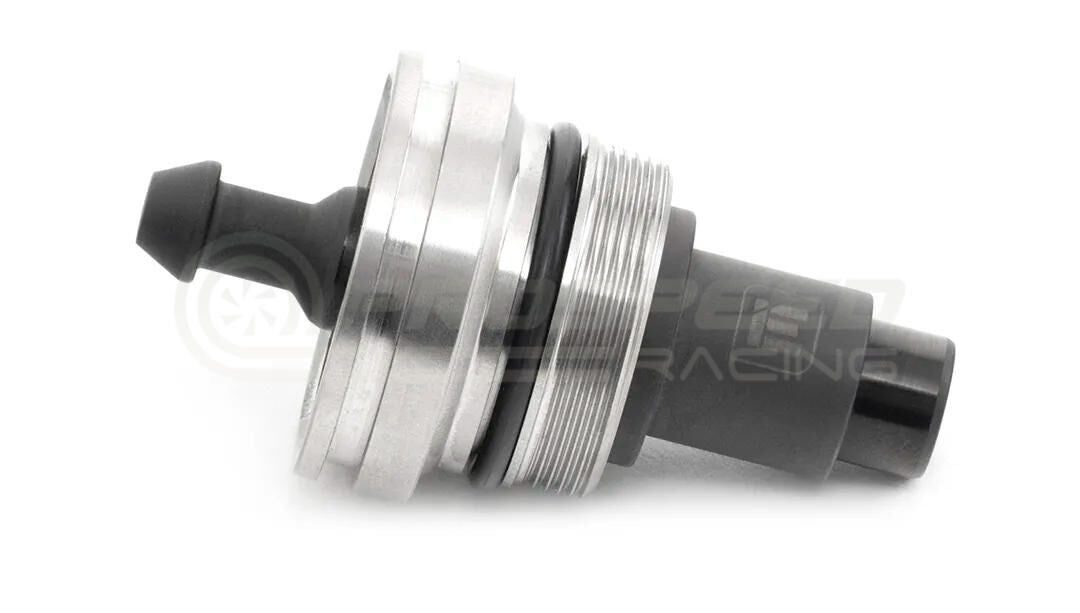

LEAK-FREE SEAL

A custom CNC Machined nut holds our molybdenum disulphide impregnated PTFE seal, which is ideal for reducing friction and maintaining stiffness. The seal is spring energized to increase reliability and provide constant outward pressure. The body is sealed to the pump with a quality Buna-N rubber o ring, ensuring it will hold up against heat and a wide range of fuels. What may seem like minor features add up to ensure long life and trouble-free operation.

Features:

• Highest flowing MQB HPFP upgrade on the market
• HPFP upgrade for ethanol & larger turbo tunes
• Fueling support for IE TrueFlex & ethanol tunes
• Reliably adds a larger fuel ceiling for increased flow
• The piston diameter increased from 9.92mm to 11.68mm
• Stroke volume increased from 231mm^3 to 321mm^3
• Broken-in and bench tested on in-house pump dyno
• Constant diameter piston design for long-life operation
• Tool steel DLC coated pin
• Nitrided tool steel cylinder
• Molybdenum disulphide impregnated leak-free seal
• Stainless steel seal body
• Buna-N rubber oil resistant o ring
• Engineered, designed, & manufactured in the USA

INSTALLATION

Installing your new HPFP kit is straightforward with the correct tools and does not require any permanent modifications. Involves fuel lines and special care to avoid contamination in a clean environment; experienced or professional installation is highly recommended.

Vehicle Fitment:

• Audi A3 8V (2.0 TFSI EA888)
• Audi S3 8V (2.0 TFSI EA888)
• Audi TT 8S (2.0 TFSI EA888)
• Audi TTS 8S (2.0 TFSI EA888)
• Volkswagen Golf GTI Mk7/Mk7.5 (2.0 TSI EA888)
• Volkswagen Golf R Mk7/Mk7.5 (2.0 TSI EA888)
