Description

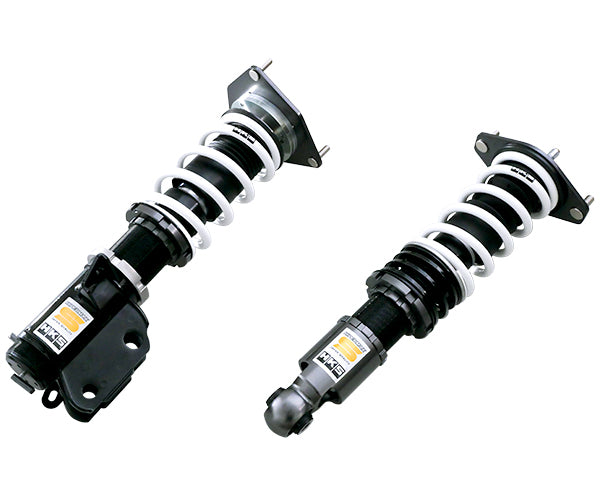

The HKS Hipermax S is a full coilover kit for the Toyota GR86 ZN8 and Subaru BRZ ZD8 (FA24, 2022 onwards). It provides 30-step damping force adjustment and a height-adjustable lower bracket, letting you dial in ride height and damping to suit street or track use. The front uses an inverted damper with a spherical-bearing upper mount; the rear uses a normal damper with a rubber upper mount and a helper spring.
Features
- 30-step damping force adjustment, front and rear
- Height-adjustable lower bracket, front and rear

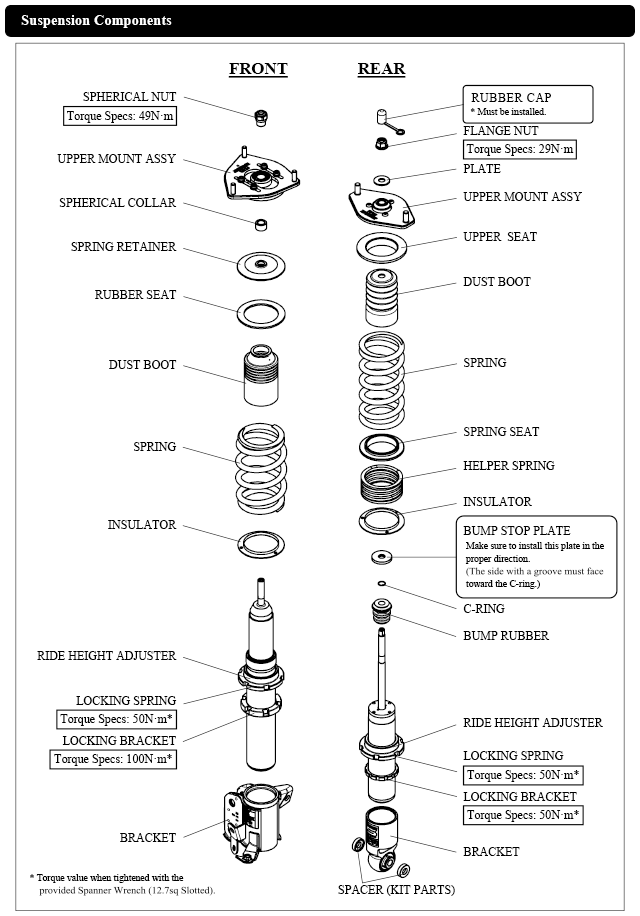

- Front: inverted damper, coilover spring layout, spherical-bearing upper mount
- Rear: normal damper, coilover spring layout, rubber upper mount
- Rear helper spring included (19.8 N/mm)
- Spring rates changeable at the factory (upgrade option available from HKS)
Fitment
- Toyota GR86 ZN8 - FA24 - 2022 onwards
- Subaru BRZ ZD8 - FA24 - 2022 onwards
Notes
- Professional installation and a wheel alignment are required after fitting
- Ride height measured from road surface to fender arch; lowest setting may not be road legal and can cause body or arm contact
- Setting the ride height lower than the HKS factory setting may void the product warranty
- JDM product: any HKS certification applies to the Japanese market. Check your state's regulations before road use in Australia.
Specifications
- Part Number
- 80300-AF020
- Brand
- HKS
- Damping adjustment
- 30 steps (front and rear)
- Front damper type
- inverted
- Front upper mount
- spherical bearing
- Rear damper type
- normal
- Rear upper mount
- rubber
- Rear helper spring rate
- 19.8 N/mm
- Front ride-height vs stock (HKS factory setting)
- -31 mm
- Rear ride-height vs stock (HKS factory setting)
- -28 mm
- Front adjustable range (vs stock)
- 0 to -61 mm
- Rear adjustable range (vs stock)
- 0 to -64 mm
