Description

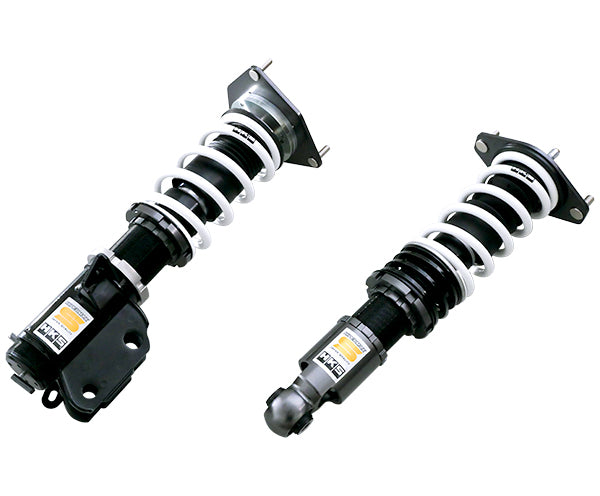

The Hipermax S Coilovers go beyond conventional expectations, delivering an exceptional blend of ride comfort and handling prowess. Engineered with HKS's renowned expertise, these coilovers offer a finely tuned balance that ensures a smooth and comfortable ride without compromising on the exhilarating handling performance that enthusiasts crave.
Application
Specification
- Damping force adjustment — 30 steps — 30 steps
- Base valve — - — -
- Height adjustable lower bracket — 〇 — 〇
- Upper mount — Spherical bearing — Rubber
- Inverted/Normal type — Inverted — Normal
- Damper/Spring layout — Coilover — Coilover
- Spring rate change at factory — Possible — Possible
- Damping force adjustment with wire — - — -
- Helper spring (Spring rate N/mm) — - — 〇 (19.8)
Ride Height
- FRONT — Ride height *1 — 640 [638] — 643 [â†] — 671 [665] ～ 610 [605] — 671 [665] ～ 610 [605]
- Against stock — -31 [-27] — -28 [â†] — 0 [0] ～ -61 [-60] — 0 [0] ～ -61 [-60]
- REAR — Ride height *1 — 645 [643] — ↠[â†] — 673 [670] ～ 609 [607] — 673 [670] ～ 609 [607]
- Against stock — -28 [-27] — ↠[â†] — 0 [0] ～ -64 [-63] — 0 [0] ～ -64 [-63]
[　] is the ride height data of MT model.
Front upper limit measured value: 669 *Please lengthen Shock Body Length to match the lower limit.
Rear upper limit measured value: 668 *Please lengthen Shock Body Length without engagement failure to match the lower limit.
*1. Height from road surface to fender arch.
*2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS' recommended setting.)
*3. Adjustable range (However, the lowest value may not be road legal.
Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive.
Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.)
*4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.)
Caution). Actual data depends on each vehicle.
Specifications
- Part Number
- 80300-AF020
- Brand
- HKS
- Engine
- FA24
- Model Year
- 21/08 -
- Remarks
- 　
