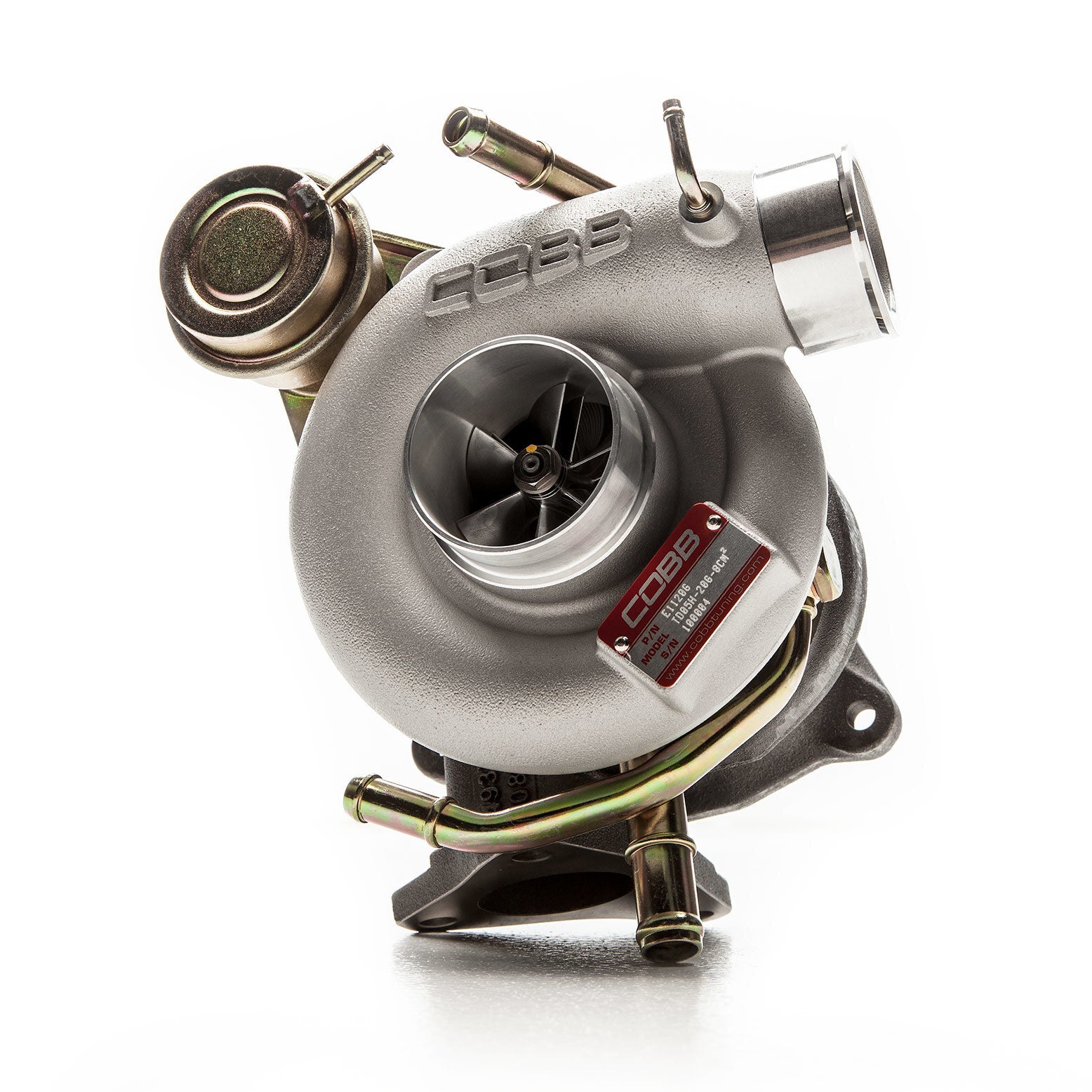

Cobb Tuning TD05H-20G Turbo - Subaru WRX 97-07/STI 97-21/Forester XT 97-08

$2,462.00

Cobb Tuning TD05H-20G Turbo - Subaru WRX 97-07/STI 97-21/Forester XT 97-08

Name: Cobb Tuning TD05H-20G Turbo - Subaru WRX 97-07/STI 97-21/Forester XT 97-08
Brand: Cobb Tuning
SKU: E1120G
Price: 2462.00 AUD
Availability: InStock

$2,462.00

SKU:

E1120G

Availability: Available to order

Get an ETA

Secure checkout
14-day returns
Genuine parts
Melbourne-based support

Vehicle fitment

This part is listed to fit the following vehicles.

In Melbourne? Fit it in our workshop.

We fit parts in-house at the RevZone workshop. Book a time and bring your car in.

Book a fitting

The COBB 20G is an ideal turbo upgrade for those looking to increase the top-end power of their STI while maintaining low and mid-range response. Capable of producing 400hp and retaining excellent throttle response, the COBB 20G is a perfect turbocharger for street or track use!

Why?

The COBB TD05H-20G is an ideal turbo upgrade for those looking to increase the top-end power of their STI while maintaining low and mid-range response. Capable of producing 400hp and retaining excellent throttle response, the COBB 20G is a perfect turbocharger for street or track use!

Features:

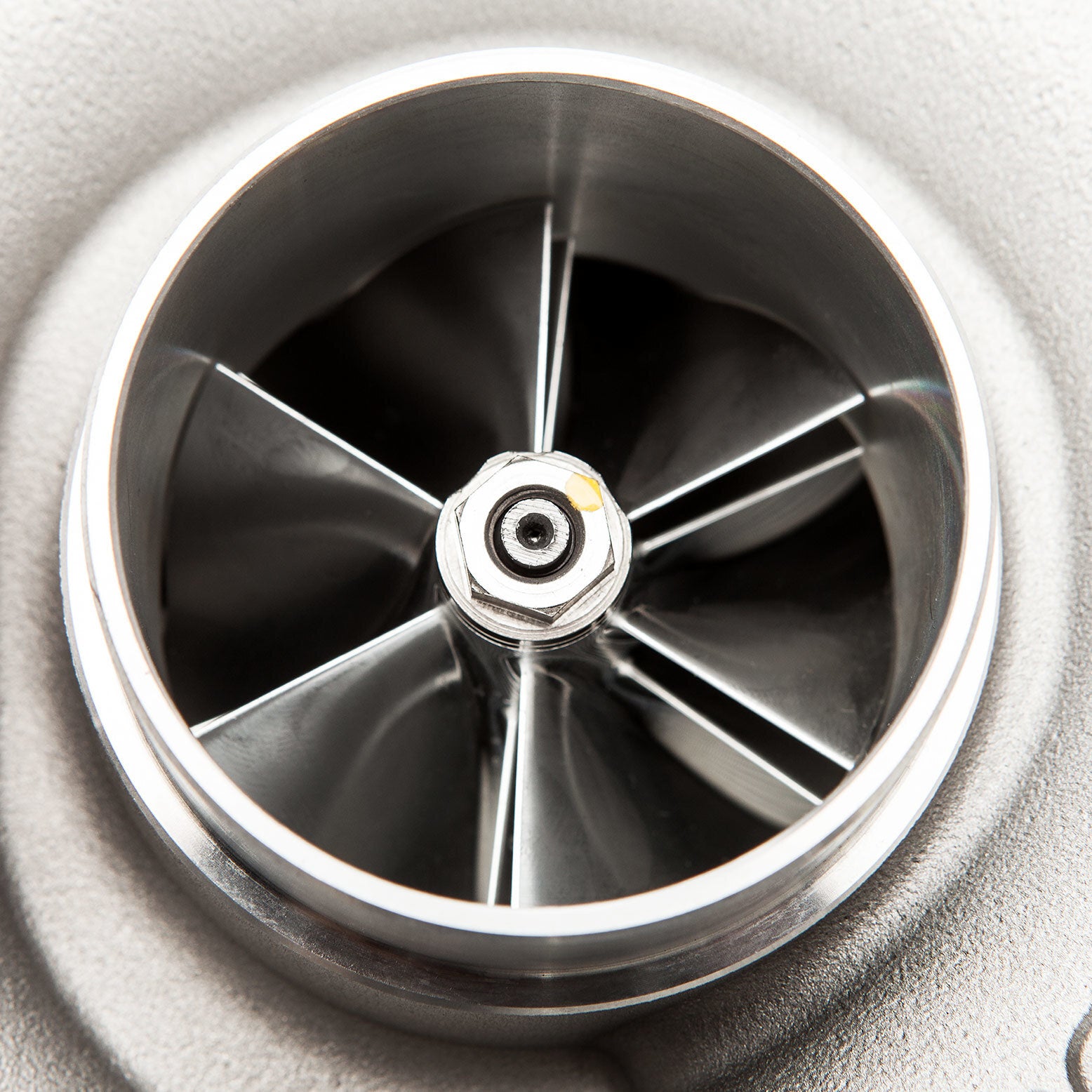

20G Compressor Housing with 68mm Billet Wheel
8cm^2 Turbine Housing with 55.8mm Wheel (TD05H)
640 CFM
.57 A/R

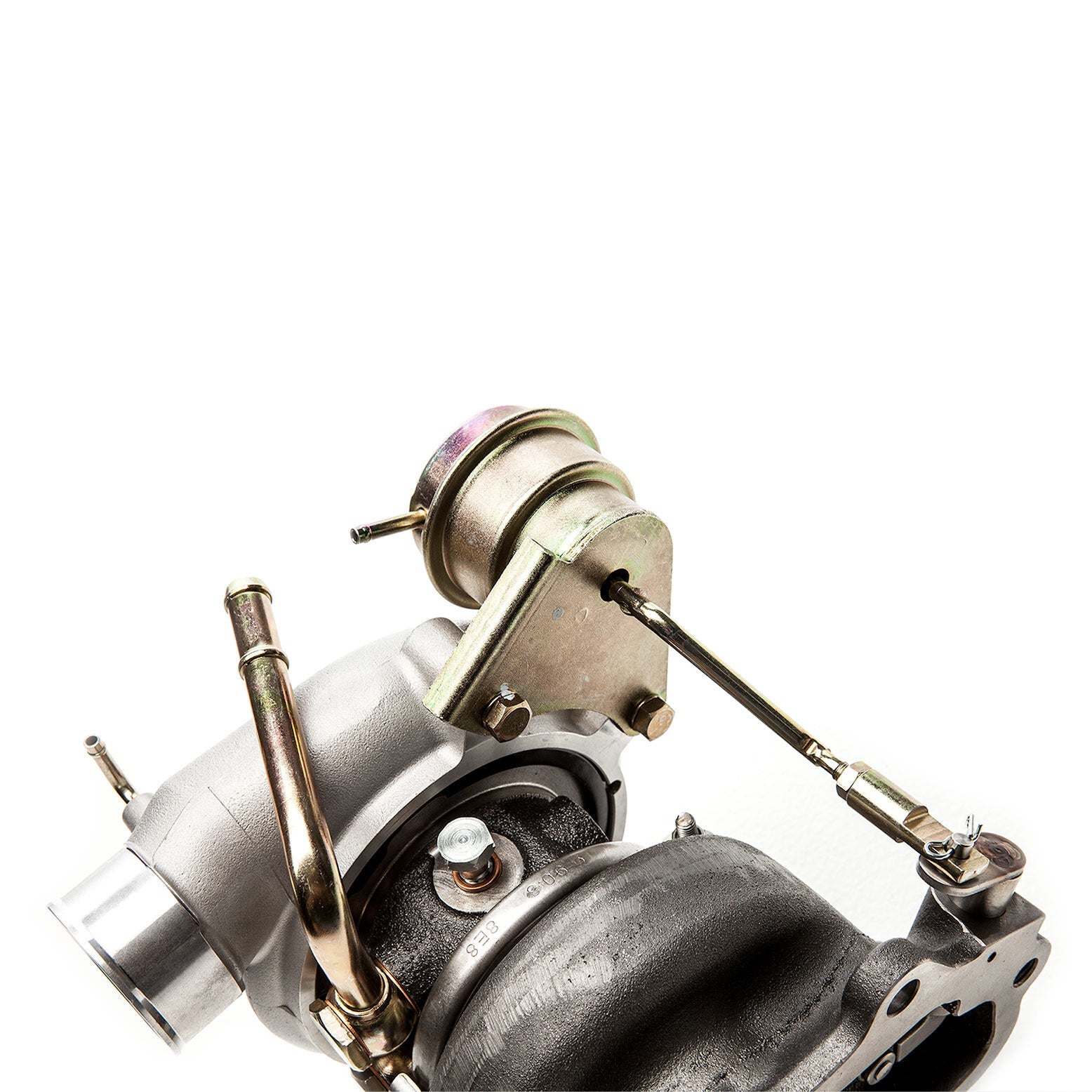

1 Bar Actuator
Single Scroll exhaust housing
Offset compressor outlet for more room around the throttle by wire connector
Sleeve bearing turbo with 360 degree thrust bearings with modified oiling strategy for greater thrust capacity

Specifications:

Compressor

Inducer: 52.5mm
Exducer: 68mm

Turbine

Inducer: 55.8mm
Exducer: 49.2mm

Vehicle Fitment:

1997-2000 Subaru WRX
2001-2007 Subaru WRX
1997-2000 Subaru STI
2001-2007 Subaru STI
2008-2014 Subaru STI
2015-2021 Subaru STI
1997-2002 Subaru Forester GT
2003-2008 Subaru Forester XT

Following models can be suitable if upgrading intercooler with "traditional" clamp on hot-side piping:

2008-2014 Subaru WRX
2008-2013 Subaru Forester XT
2007-2009 Subaru Liberty GT

Part Number: E1120G
Brand: Cobb Tuning
