SKU: 20-0608-1

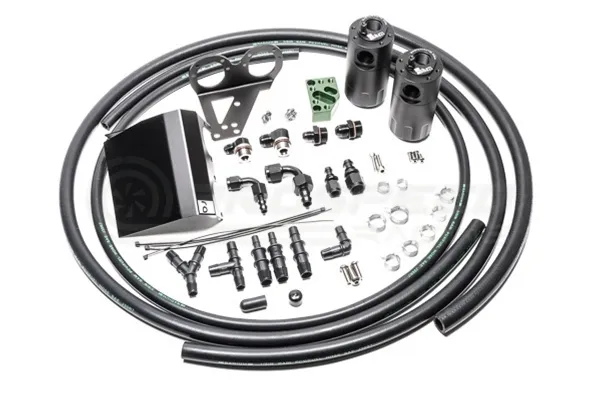

Radium Dual Fluid Lock Catch Can Kit w/RHD Bracket - Subaru WRX 08-14/STI 08-21
Availability:
Sold Out - Backorder Available
$850.00
or 4 payments of $212.50 with
Info
SKU: 20-0608-1
Availability:
Sold Out - Backorder Available
$850.00
or 4 payments of $212.50 with
Info
Note: Includes new PSR Bolt On RHD compatible mounting bracket and hardware.
RHD Mounting Bracket Notes:
For more information on the PSR RHD Bracket click here
An oil catch can is essential on a performance vehicle to protect the engine from elevated levels of crankcase blow-by oil that accumulate from aggressive driving. Excess oil saturated air circulating back into the air intake stream can lead to degraded performance by depositing oil on the inside of the induction system, intercooler, intake manifold, etc. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.
These kits do NOT vent to atmosphere (VTA), and instead maintain the factory plumbing strategy. This closed-loop system routes clean filtered air back in through the engine and promotes negative crankcase pressure for optimal performance. Furthermore, closed loop systems prevent unwanted oil vapors from being deteced in the cabin.
This kit contains two independent catch cans, each plumbed into different parts of the PCV system. It is designed for users wanting to keep the function of the the closed loop PCV valve which flows fresh air through the engine block to pull out blow-by gasses. The catch cans install on the RH strut tower, as shown below, and interface with the factory PCV and crankcase ventilation hoses. This kit may NOT be compatible with some rotated turbo setups. Please evaluate closely before purchasing.
Catch cans must be maintained and emptied on a regular basis. The frequency will depend on how much oil is collected which varies from vehicle to vehicle. For a maintenance-free solution, consider the Radium AOS-R.
Features:
HOW IT WORKS
During closed or light throttle, the PCV valve is open allowing fresh air to be pulled into and through the crankcase and into the intake manifold. The PCV line catch can will receive the most oil collection under this condition. The crankcase catch can will not see any oil collection in this circumstance.
Under full throttle conditions the PCV valve is closed (you do not want turbo boost entering the crankcase) and crankcase gasses are pushed out of the engine and into the turbo air inlet pipe.
This is opposite flow as the above diagram, and the time that the crankcase vent catch can will see the most oil collection.
Optional Petcock Drain Kits (Sold Separately)
This kit, sold seperately, can be used to remotely drain the catch cans without the need to unscrew the canister bodies. There is an option to put the remote drain kit on one or both catch cans. This is recommended for users that need to drain the catch can contents quickly and easily.
Vehicle Fitment:
| SKU | 20-0608-1 |
| Model # | 20-0608-1 |
| Brand | Radium Engineering |
