Zeitronix x RZ Flex Fuel Kit with Red Gauge - Toyota 86/Subaru BRZ

Plug-and-Play Ethanol Content Solution for BRZ/86

Revzone now offers the Zeitronix ECA-2 Kit with the new Flow Through Flex Fuel Sensor. This kit includes the Ethanol Content Analyser (ECA-2), Flow Through Flex Fuel Sensor, and an ECA harness with the correct connector for a true plug-and-play install to suit Subaru BRZ / Toyota 86.

Fitment Note: Some BRZ models have a black O2 sensor plug with two locating tabs instead of one. In these cases, the single tab on the ECA cable must be carefully shaved off.

Why monitor ethanol percentage?

The ethanol content of E85 can vary from about 60% to 92%. Every fill can change the blend in your tank. Knowing the actual ethanol percentage lets tuners optimise ignition timing and fueling to safely extract more power. E85 typically provides an effective octane of around 105 or higher, improving knock resistance and allowing more aggressive tunes compared to standard petrol.

The result: The Zeitronix ECA-2 delivers real-time ethanol percentage and fuel temperature data so you can get the most from your engine and tune.

Key features

• Two 0–5 V analogue outputs: Ethanol % and Fuel Temperature for ECUs, data logging, and engine management.
• Plug-and-play harness for BRZ/86 included. Harness length: 8 ft (2.4 m).

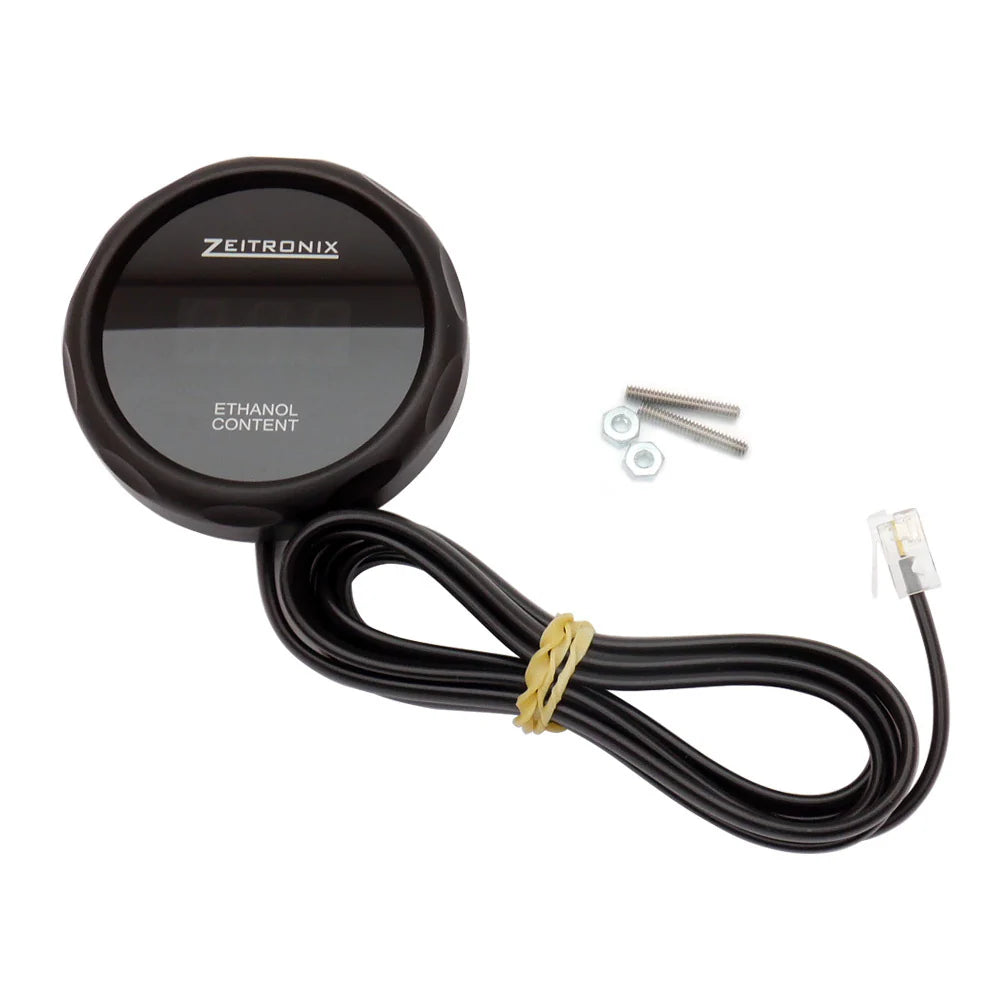

• Optional real-time E% Gauge:
  • Ultra-slim design, only 3/4 in (19 mm) thick with a flat back for easy surface mounting using Velcro or double-sided tape.
  • Fits standard 2 1/16 in (52 mm) gauge pods; includes set screws and nuts for alternative mounting.
  • Single-cable connection to the ECA-2 GAUGE port for both power and data. Cable length: 5 ft (1.5 m).
  • ECA-2 is required for E% Gauge operation.
• Compatible with Zeitronix Flow Through Flex Fuel Sensor and many OEM GM flex fuel sensors. Specs can vary across GM sensors; the included Zeitronix-tested sensor ensures reliable performance.
• ECA-2 enclosure size: 3 x 2 x 1 in (76 x 50 x 25 mm).
• Made in the USA.

Revzone kit bonus

• Includes additional fuel lines, connectors, and a flex sensor mounting bracket to streamline installation.

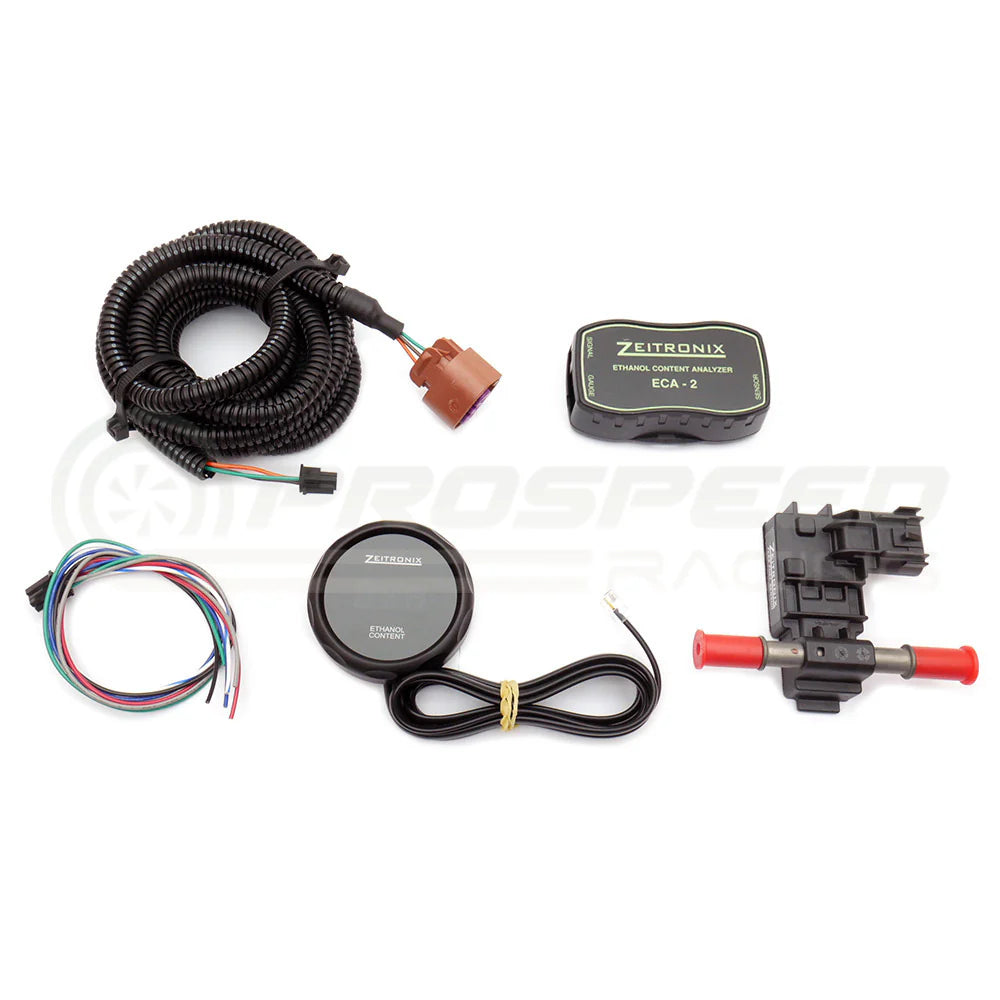

What is included

• ECA-2 Ethanol Content Analyser
• Flow Through Flex Fuel Sensor
• ECA-2 plug-and-play harness for Subaru BRZ / Toyota 86 (approx. 8 ft / 2.4 m)

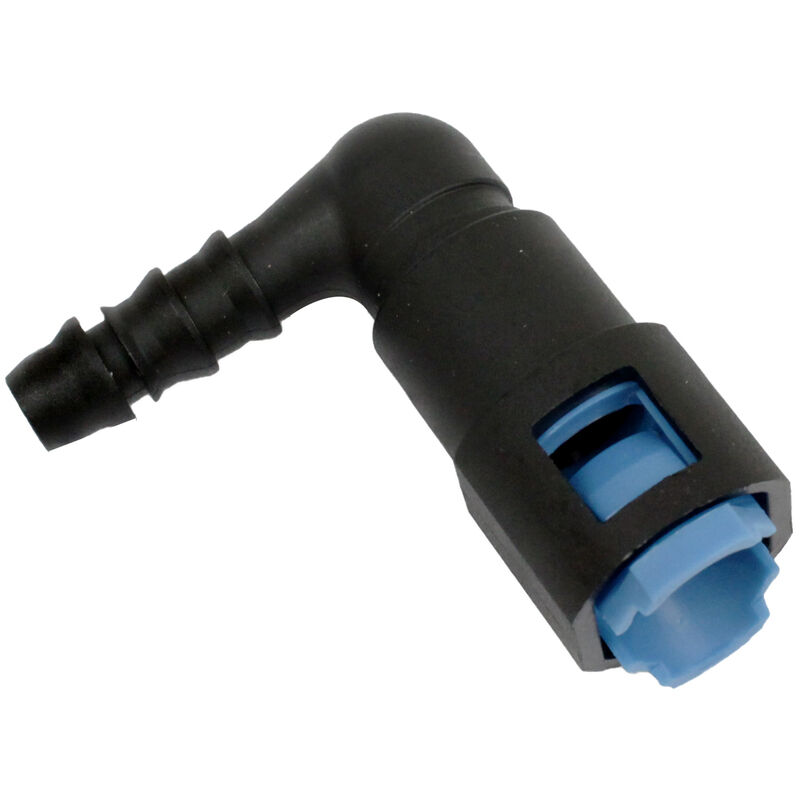

• Additional fuel lines and fittings

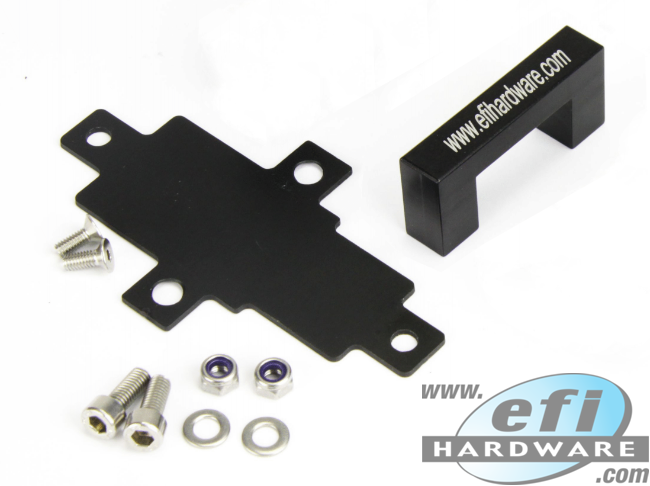

• Flex sensor mounting bracket
• Optional E% Gauge (if selected)

Installation and mounting

• Typical mounting location for the sensor is the return fuel line. Ensure the sensor is completely filled with fuel.
• Sensor tube sizes: 0.37 in for both tubes, 0.5 in at the flange.
• Professional installation by a workshop familiar with your vehicle and fuel system is required. Always check for fuel leaks.

ECA-2 analogue outputs

The flex fuel sensor itself does not provide 0–5 V outputs. The ECA-2 converts sensor data and provides two channels:

• Analog Output — Signal — Range
• Ethanol Percentage — 0–5 V — 0% to 100%
• Fuel Temperature — 0–5 V — -40 to 125 °C (-40 to 257 °F)

Formulas

• Ethanol % = 20 × Voltage
• Fuel Temp (°F) = -40 + 59.4 × Voltage
• Fuel Temp (°C) = -40 + 33 × Voltage

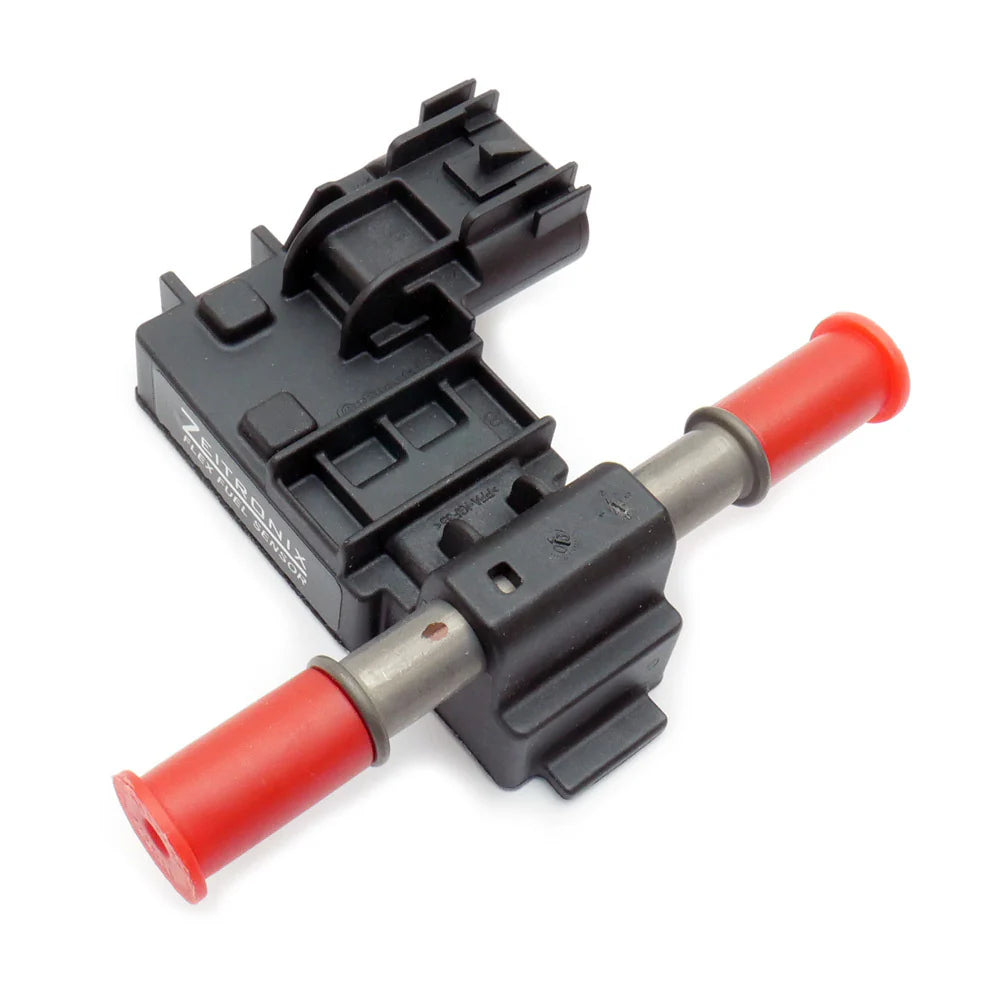

Flex Fuel Sensor technical specifications

• Measuring range: 0 to 100% alcohol (ethanol) in fuel mixtures
• Sensor accuracy: 5% of mixture ratio
• Output characteristic: Linear
• Operating temperature: Environment -40 °C to +125 °C, Fuel -40 °C to +90 °C
• Maximum fuel pressure: 10 bar (145 psi)
• Maximum pressure drop: 0.1 bar (1.45 psi)
• Maximum flow: 200 L/h
• Supply voltage: 6 to 18 V DC
• Sensor temperature error: < 1.5%
• Response time: < 250 ms after power on at any temperature
• Design: Suitable for installation in motor vehicles in any orientation. Waterproof housing.

Note: Always verify hose sizes and routing on your specific vehicle. After installation, prime the system and inspect for any leaks before driving.
