Radium Fuel Pump Hanger, Honda Civic EG / EK / Integra DC2 (1992-2001)

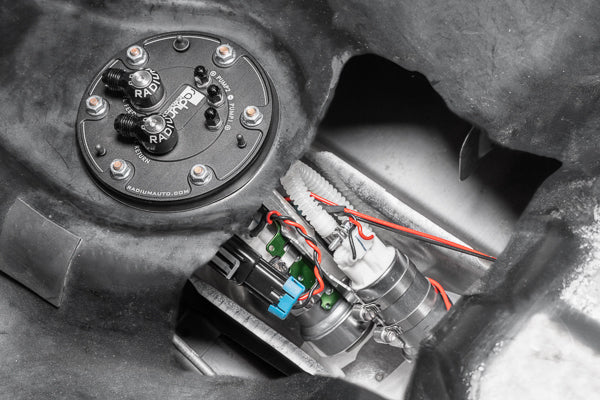

The Radium Engineering Fuel Pump Hanger is a drop-in replacement for the stock fuel pump assembly in the Honda Civic (EG / EK) and Integra (DC2). Configurable with one aftermarket fuel pump, or two pumps when paired with the Radium Dual Pump Add-On (sold separately). No cutting or modification of the vehicle's sheet metal or fuel tank is required.

Note: Fuel pumps are not included and must be purchased separately.

Plumbing

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. Three outlet adapter fittings are included:

• Pre-installed -6AN male fitting — for aftermarket feed lines
• Barbed adapter fitting — allows OEM feed line reuse on 1994-1995 Integra / 1992-1995 Civic
• SAE quick connect fitting — allows OEM feed line reuse on 1996-2001 Integra / 1996-2000 Civic

Two return port fittings are also included:

• Pre-installed barbed fitting — allows OEM return line reuse
• -6AN male fitting — for aftermarket return lines

All fittings are machined low enough to clear the fuel pump access cover.

Electrical

Custom designed stainless steel electrical studs handle the high current demands of modern high-flow fuel pumps. Connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodised aluminium acorn nuts prevent accidental short circuiting. In-tank wiring is insulated with chemically resistant ETFE.

• Single Walbro GSS342 (255LPH) installations can reuse the OEM fuel pump wiring
• Upgrading OEM wiring is recommended to ensure pumps receive full power

Key Features

• Drop-in installation — no cutting or tank modification required
• Dual pump capable — add the Radium Dual Pump Add-On (sold separately) for a second pump
• 8AN ORB merged pump-out port — supports high-flow aftermarket fuel systems
• OEM and aftermarket line compatible — fittings for both included
• High current electrical hardware — stainless studs, hermetically sealed, fuel-proof connections
• Fuel pump filter sock included
• Anodised aluminium construction — lightweight, corrosion resistant
• Stainless steel hardware and clamps
• E85 and alcohol fuel safe — compatible with gasoline, methanol, and E85

Pump Compatibility

• 20-0790-00 — suits AEM 50-1000, AEM 50-1200, Walbro GSS342, and pumps with the same physical shape and electrical connector
• 20-0792-00 — suits Walbro 39/50 DCSS pumps: F90000267, F90000274, F90000285, F90000295

Select the correct variant based on your chosen fuel pump. Fuel pumps sold separately.

Vehicle Fitment

• 1992-1995 Honda Civic (EG / EH / EJ)
• 1996-2000 Honda Civic (EK / EM / EJ)
• 1994-2001 Honda Integra (DC2)

Available Part Numbers

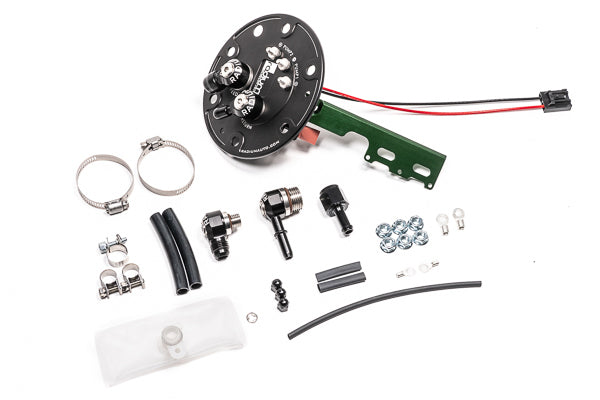

• 20-0790-00 — Fuel Pump Hanger, Honda Civic EG/EK / Integra DC2 — suits Walbro GSS342 / AEM 50-1200 style pumps

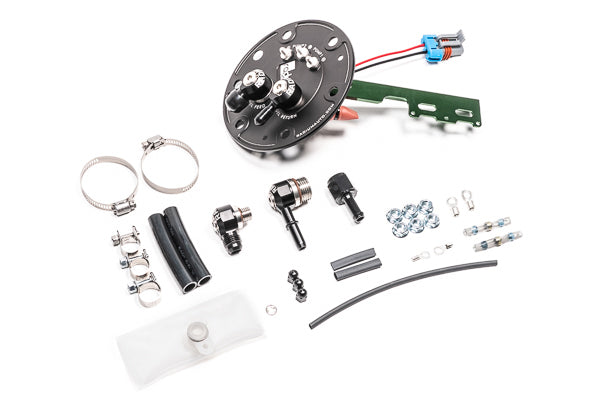

• 20-0792-00 — Fuel Pump Hanger, Honda Civic EG/EK / Integra DC2 — suits Walbro F90000267 / 274 / 285 / 295 (39/50 DCSS)
• 20-0796-00 / 20-0797-00 — Dual Pump Add-On (sold separately)

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ Drop-in fit — OEM and aftermarket line compatible out of the box
• ✔ Dual pump capable with add-on — scalable for high-power builds
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. Fuel pumps sold separately. Dual pump capability requires Radium 20-0796-00 or 20-0797-00 Add-On (sold separately). Select variant based on your pump model.
