Radium Side Feed Conversion Fuel Rail - Toyota 1JZ-GTE non-VVTi
Couldn't load pickup availability
Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from 6063 aluminum, media blasted, black anodized, and laser etched for a high quality surface finish. This kit is compatible with all fuel types including popular alcohol mixtures such as E85.

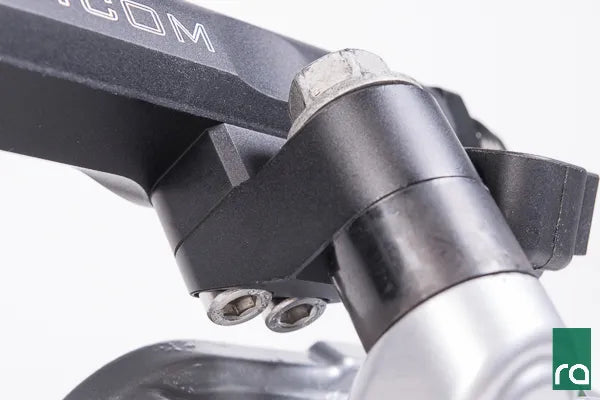

The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (NOT INCLUDED). The kit includes 2 different sets of mounting feet allowing various height fuel injectors to be used (short spacers shown). The anodized aluminum mounting feet secure the fuel rail to the intake manifold reusing the OEM Toyota thermal insulating spacers.

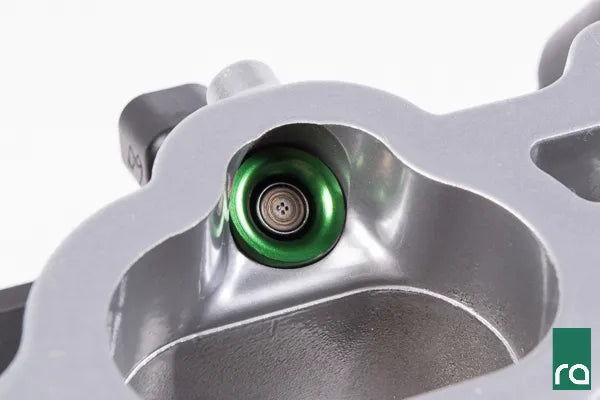

The fuel injector bores and the included press-fit injector seats are designed for 14mm injector O-rings. These seats include O-rings to prevent boost pressure leaks. They are CNC machined billet aluminum, anodized, and laser etched.
FUEL INJECTOR COMPATIBILITY

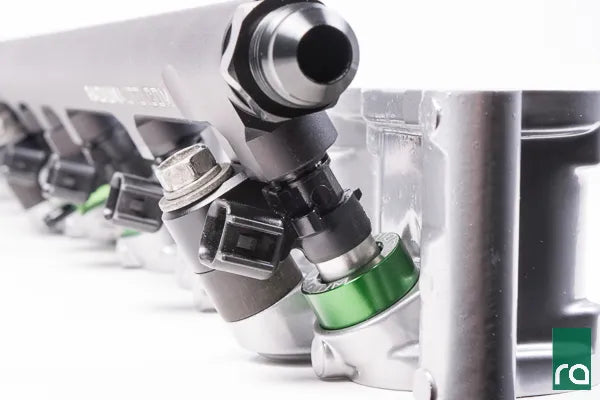

This fuel rail kit is compatbile with aftermarket universal fuel injectors with 14mm upper and lower O-rings. Two different sets of fuel rail mounting brackets are provided to accomodate 48mm and 34mm fuel injector heights.
NOTE: many aftermarket injectors have colorful aluminum caps that change the height and/or upper O-ring size. In most cases these adapters can be removed and the bare injector will be compatible with this fuel rail.
Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit using the tall spacers:
- Injector Dynamics ID1050-48-14-14
- Injector Dynamics ID1300-48-14-14
- Injector Dynamics ID1700-48-14-14
- Injector Dynamics ID2600-48-14-14
Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit using the short spacers:
- Injector Dynamics ID1050-34-14-14
- Injector Dynamics ID1300-34-14-14
- Injector Dynamics ID1700-34-14-14
- Injector Dynamics ID2600-34-14-14

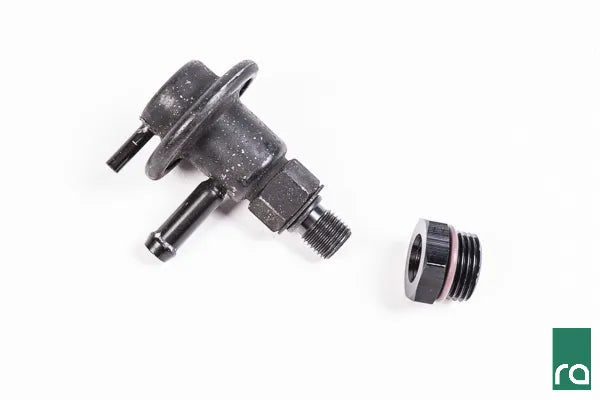

To reuse the OEM fuel pressure regulator, select the 14-0285 8AN ORB to M12x1.25mm Fitting (shown below).

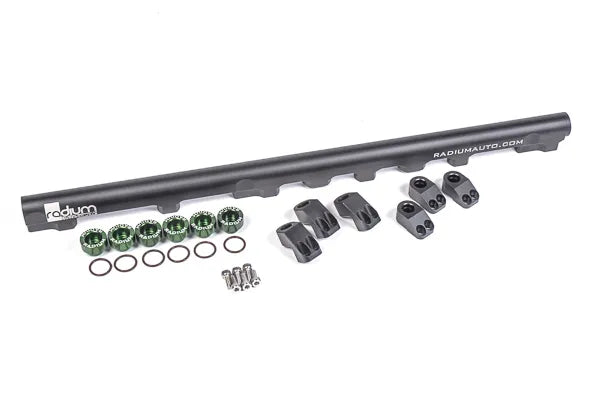

INCLUDED:
- Black Anodized Laser Etched Aluminum Fuel Rail
- Black Anodized Aluminum Mounting Feet, Tall and Short
- Stainless Steel Mounting Feet Bolts (x6)
- 20-0216-06 Toyota Injector Seat Kit, 6 Cylinder
