Radium IACV Spacer Kit — Nissan S14 / S15 Silvia (SR20DET)

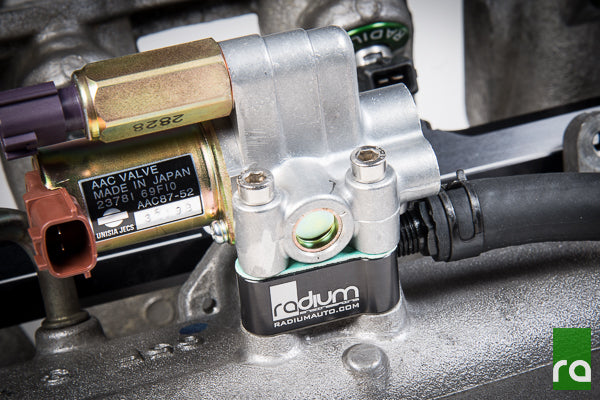

This Idle Air Control Valve (IACV) Spacer Kit is designed for the SR20DET engine in the Nissan Silvia S14 and S15. The OEM 2-bolt IACV bypass hard line is replaced by this anodized aluminium spacer to gain the necessary clearance for top-feed fuel rail installation. An anodized aluminium barb adapter and rubber hose are included to reroute the charge pipe hose externally around the manifold.
Suits:
- Nissan Silvia S14 — SR20DET
- Nissan Silvia S15 — SR20DET

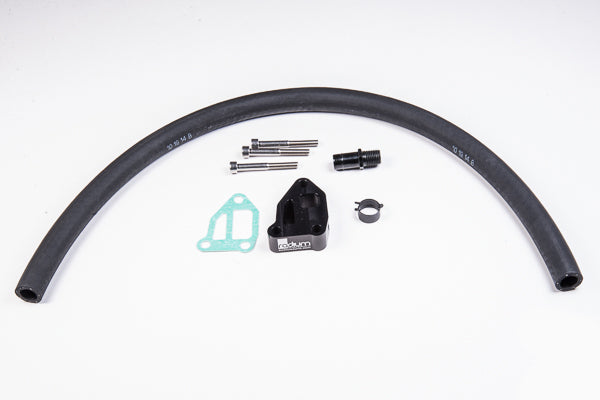

Kit Includes:
- 1x Anodized aluminium IACV spacer, laser-etched
- 1x Anodized aluminium barb adapter fitting
- 1x Radium 18-0014 IACV gasket (Nissan)
- 1x OEM-style spring action hose clamp
- 1x Rubber hose, 1/2" ID, 2 ft length
- 3x Stainless steel M6x1mm bolts
Specifications:
- Application: Replaces OEM 2-bolt IACV bypass hard line
- Purpose: Clears top-feed fuel rail installation on SR20DET
- Material: Anodized aluminium (spacer and barb adapter)
- Finish: Laser-etched
- Hardware: Stainless steel M6x1mm bolts
Available Part Numbers:
- 20-0162 — IACV Spacer Kit, Nissan S14 / S15 SR20DET
Why Radium Engineering?
- ✅ Manufactured in the USA to motorsport-grade tolerances
- ✅ CNC-machined anodized aluminium spacer with laser-etched finish for precision fit and durability
- ✅ Trusted by tuners and race teams running high-power SR20DET builds worldwide
- ✅ Bolt-on fitment — replaces OEM IACV hard line to clear top-feed fuel rails without cutting or fabrication
- ✅ Compatible with E85, ethanol, methanol, pump petrol, and flex fuel sensor integration
