Description

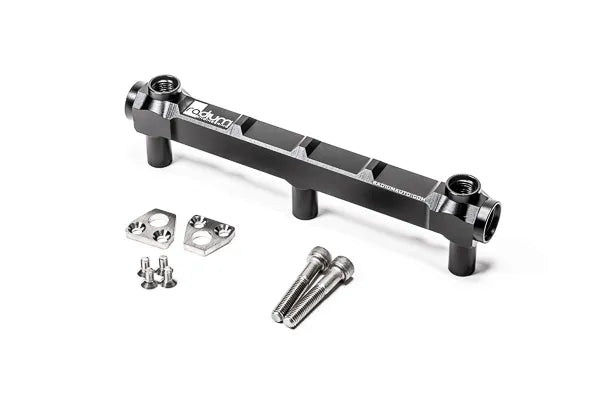

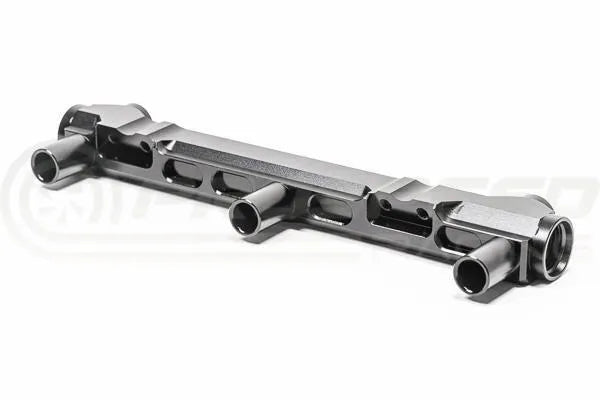

The Radium Engineering 20-0766 Fuel Rail Kit is a billet aluminium fuel rail solution for the Toyota GR Yaris (XPA16R) and GR Corolla (GZEA14R), both powered by the G16E-GTS turbocharged three-cylinder engine. With a large 0.6" internal bore, this rail supports all engine power requirements without flow restriction — from stock builds through to high-power forced induction applications.
The OEM fuel injectors are compatible with these rails. Machined ports accept 11mm upper injector O-rings. Due to the tight clearance in the upper engine area, aftermarket injector electrical connectors may be difficult to fit — Bosch EV14 format injectors are confirmed compatible. The rail can also be converted to a pressure-regulated return fuel system for custom builds.
This kit includes the fuel rail and all necessary mounting hardware only — ideal for custom fuel system builds. For a plug-and-play OEM hookup, pair with the Radium 20-0766-PK Plumbing Kit.
Key Features
- Large 0.6" internal bore — supports all engine power requirements without flow restriction
- Dual port configuration — 2x end ports: 8AN ORB (3/4"-16); 2x top ports: 6AN ORB (9/16"-18) for tight upper engine clearance
- OEM injector compatible — machined for 11mm upper injector O-rings; OEM injectors fit directly
- Bosch EV14 aftermarket injector compatible
- Convertible to return fuel system — can be configured for a pressure-regulated return system

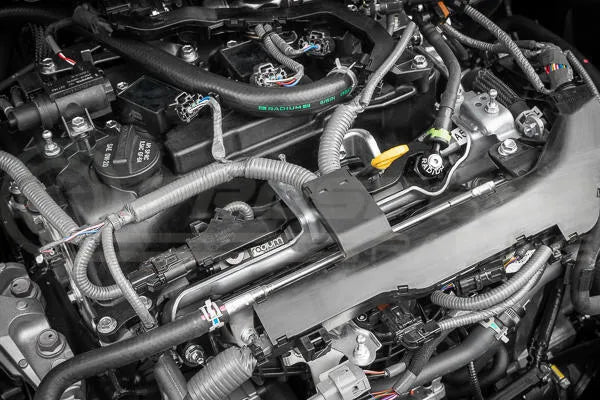

- Fits under the factory engine cover — no clearance modifications required
- Stainless steel mounting tabs — superior strength over aluminium alternatives
- Anodised surface finish — wear and corrosion resistant
- No special tools required for installation
Kit Includes
- Billet aluminium fuel rail
- Stainless steel mounting tabs and hardware
Note: Fittings not included. For a plug-and-play OEM hookup, see Radium 20-0766-PK Plumbing Kit. Aftermarket injector electrical connectors may be difficult to fit due to tight upper engine clearance — verify clearance before purchasing high-profile injectors.
Vehicle Fitment
- 2020+ Toyota GR Yaris (XPA16R) — G16E-GTS
- 2023+ Toyota GR Corolla (GZEA14R) — G16E-GTS
Available Part Numbers
- 20-0766 — Fuel Rail Kit, Toyota GR Yaris XPA16R / GR Corolla GZEA14R (rail and hardware only)
- 20-0766-PK — Fuel Rail Plumbing Kit — plug-and-play OEM hookup (sold separately)
Why Radium Engineering?
- ✔ Designed and manufactured in the USA
- ✔ Stainless steel mounting tabs — superior strength, precision fit
- ✔ Dual port sizing — 8AN end ports and 6AN top ports engineered for the G16E-GTS engine bay
- ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
- ✔ Exclusively distributed in Australia by Coore
Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. Fittings sold separately. Pair with 20-0766-PK Plumbing Kit for a complete OEM-style installation. Professional installation recommended.
Specifications
- Part Number
- 20-0766
- Brand
- Radium Engineering
