Description
Radium Fuel Rail Kit — Subaru BRZ / Toyota 86 / GR86 (2012-2021 & 2022+)

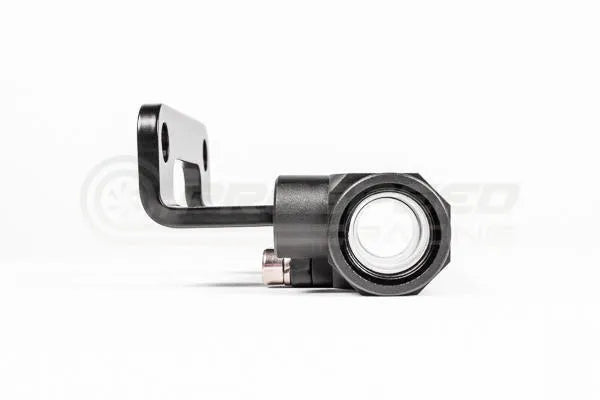

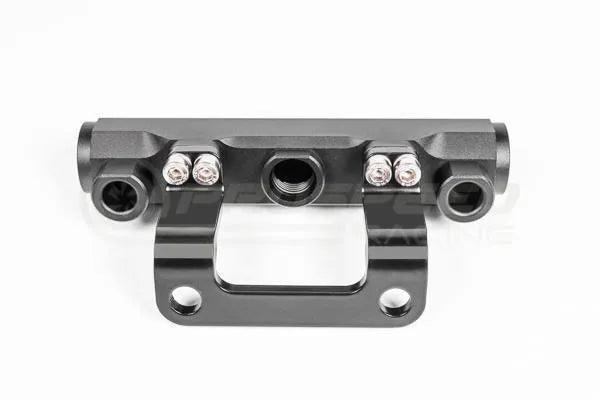

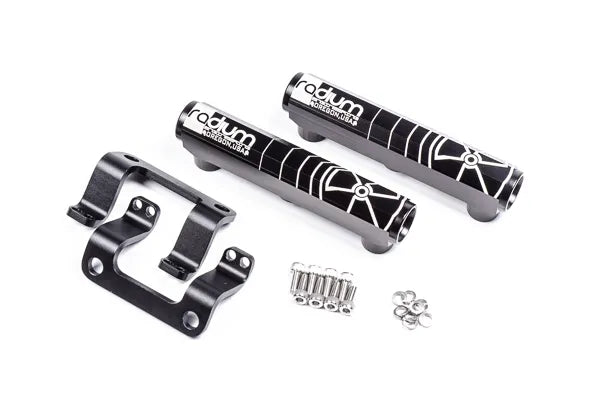

These Radium Engineering fuel rails feature a large 0.69" internal bore capable of supporting all necessary engine power requirements across the full range of BRZ and 86 builds. The left and right rails are identical, featuring anodized aluminium bodies and mounting brackets. End ports are tapped for 8AN ORB and the centre port is tapped for 6AN ORB — providing maximum flexibility for fuel system plumbing.
Note: This listing includes fuel rails and mounting brackets only. Fittings and adapters are sold separately. For a complete plumbing kit, see 20-0111-PK. This option is ideal for custom fuel system builds where specific fittings and line routing are required.
Ensure ample clearance around the fuel rail port(s) for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. Dimensional drawings are available on the product page for reference.
Vehicle Fitment:
- Subaru BRZ ZC6 (2012-2021)
- Subaru BRZ ZD8 (2022+)
- Toyota 86 ZN6 (2012-2021)
- Toyota GR86 ZN8 (2022+)
Fitment Note — 2012-2021 BRZ and 86: Consider purchasing the Radium 20-0353 ECU Mount as a complement. This prevents the need to cut the OEM steel ECU mount and permits easy access to the RH fuel rail. Not compatible with the 2022+ BRZ and GR86.
Injector Compatibility: Compatible with factory and OEM-equivalent fuel injectors including Injector Dynamics. If upgrading injectors, consult your aftermarket injector supplier for dimensional compatibility. Radium Engineering specifies OEM-equivalent dimensions only.
Specifications:
- Internal bore: 0.69"
- End ports: 8AN ORB (x2)
- Centre port: 6AN ORB (x1)
- Material: Anodized aluminium body and mounting brackets
- Left and right rails: Identical
- Fittings: Not included — sold separately
Available Part Numbers:
- 20-0111-02 — Fuel Rail Kit (rails and brackets only), Subaru BRZ / Toyota 86 / GR86
- 20-0111-PK — Fuel Rail Plumbing Kit (fittings and hoses, sold separately)
- 20-0353 — ECU Mount (2012-2021 BRZ/86 only, sold separately)
Why Radium Engineering?
- ✅ Manufactured in the USA to motorsport-grade tolerances
- ✅ CNC-machined anodized aluminium with 0.69" bore — supports all power levels from street to full race
- ✅ Trusted by tuners and race teams running high-power BRZ/86/GR86 builds worldwide
- ✅ 8AN ORB end ports and 6AN ORB centre port for maximum fuel system plumbing flexibility
- ✅ Compatible with E85, ethanol, methanol, pump petrol, and flex fuel sensor integration
Specifications
- Part Number
- 20-0111-02
- Brand
- Radium Engineering
