Radium CCV Fluid Lock Catch Can Kit, Subaru BRZ / Toyota 86 / GR86 (2012+)

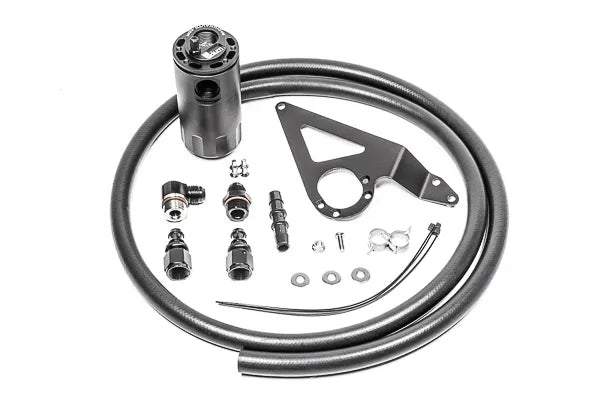

The Radium Engineering 20-0902-FL CCV Fluid Lock Catch Can Kit is a purpose-built crankcase ventilation solution for the Subaru BRZ and Toyota 86 / GR86 across all generations (2012+). Mounting on the left-hand side of the engine bay, this kit runs inline with the 1/2" CCV breather port — intercepting oil-saturated crankcase vapours before they re-enter the intake stream.

At low loads, this circuit sees atmospheric pressure. Under high load (WOT), it experiences vacuum — conditions that would normally draw crankcase vapours, unspent fuel, and oil sludge directly into the air filter intake pipe. On turbocharged or supercharged applications, this oil accumulates in the intercooler, lowering thermal efficiency and degrading performance. The Radium catch can collects these contaminants before they reach the intake.

This kit is a closed-loop design — it does not vent to atmosphere (VTA), making it emissions compliant and track legal. It can be used independently or paired with the 20-0911-FL PCV Catch Can Kit for complete crankcase ventilation coverage (available as the 20-0913-FL Dual Kit).

Note: Because the Radium catch cans are pressure sealed, they are suitable for boosted applications and can be connected to the intake manifold.

Key Features

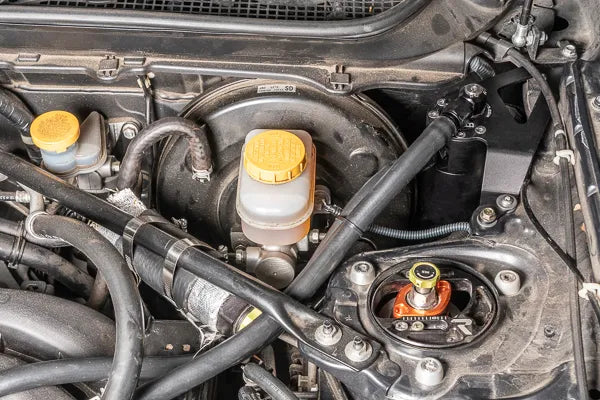

• CCV circuit coverage — mounts LH side, inline with the 1/2" breather port
• Fluid Lock design — prevents fluid from draining back into the engine when the can is full
• Large 10AN ORB ports — maximise flow and minimise restriction
• 4AN ORB drain port — easy, clean draining without removing the can
• 2-step oil separation baffling — highly effective at separating oil mist from blow-by vapour
• O-ring sealed dipstick — check fluid level without opening the system
• Closed-loop system — emissions compliant and track legal, no VTA
• Boost safe — pressure sealed, suitable for forced induction applications
• RHD and LHD compatible — some brake line clearancing required on RHD installations
• No permanent modification — mounts using factory bosses and holes, no cutting or drilling required
• Compatible with all current aftermarket forced induction kits

Catch Can Specifications

• Capacity: 6 fl oz
• Height (without fittings): 5 inches
• Outside Diameter: 2.45 inches

Vehicle Fitment

• 2012-2021 Subaru BRZ (ZC6) — FA20
• 2022+ Subaru BRZ (ZD8) — FA24
• 2012-2021 Toyota 86 (ZN6) — FA20
• 2022+ Toyota GR86 (ZN8) — FA24

Available Part Numbers

• 20-0902-FL — CCV Fluid Lock Catch Can Kit, LH side (this kit)
• 20-0911-FL — PCV Fluid Lock Catch Can Kit, RH side (sold separately)
• 20-0913-FL — Dual Fluid Lock Catch Can Kit — includes both CCV and PCV kits

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined billet aluminium — precision fit, no compromise
• ✔ Closed-loop, track-legal design — no VTA
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. Professional installation recommended. Pair with 20-0911-FL PCV kit or purchase the 20-0913-FL Dual Kit for complete coverage.
