Radium CCV Fluid Lock Catch Can Kit, Toyota GR Supra A90 / A91 (2019+)

The Radium Engineering 20-0750-FL CCV Fluid Lock Catch Can Kit is a purpose-built crankcase ventilation solution for the Toyota GR Supra A90/A91 (2019+). Running inline between the crankcase vent (CCV) port and the intake pipe, this kit intercepts oil-saturated blow-by before it accumulates in the air filter intake pipe and intercooler — protecting the B58 engine from oil contamination and preserving intercooler thermal efficiency under high-load driving.

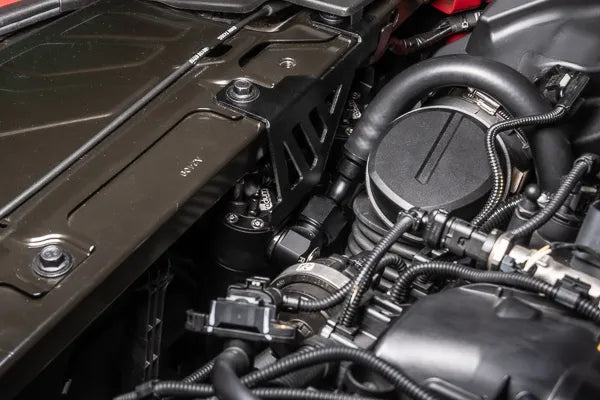

The catch can mounts to two holes on the front radiator support and is specifically designed to clear strut braces. The kit uses factory holes — no cutting, drilling, or permanent modifications required. It is a closed-loop design — it does not vent to atmosphere (VTA), making it emissions compliant and track legal.

Note: This kit addresses the CCV side only. It does not address blow-by from the PCV side of the crankcase. For complete coverage, pair with the Radium 20-0749 PCV Catch Can Kit.

CCV Circuit

At low loads, the CCV circuit sees atmospheric pressure. Under high load (WOT), it experiences high flow from the crankcase into the intake system — conditions that would normally deposit oil and sludge in the air filter intake pipe and spread into the intercooler. Oil accumulation in the intercooler lowers its thermal efficiency and leads to decreased performance. The Radium catch can captures these contaminants and routes clean filtered air back into the intake, promoting negative crankcase pressure for optimal performance.

Key Features

• CCV circuit coverage — inline between CCV port and intake pipe
• Strut brace clearance — specifically designed to clear aftermarket and OEM strut braces
• Radiator support mount — mounts to 2 holes on the front radiator support using factory holes
• Fluid Lock design — prevents fluid from draining back into the engine when the can is full
• Large 10AN ORB ports — maximise flow and minimise restriction
• 4AN ORB drain port — easy, clean draining without removing the can
• 2-step oil separation baffling — highly effective at separating oil mist from blow-by vapour
• O-ring sealed dipstick — check fluid level without opening the system
• Closed-loop system — emissions compliant and track legal, no VTA
• No permanent modifications required — no cutting or drilling

Vehicle Fitment

• 2019+ Toyota GR Supra (A90 / A91) — B58

Available Part Numbers

• 20-0750-FL — CCV Fluid Lock Catch Can Kit, Toyota GR Supra A90/A91 2019+ (CCV side only)
• 20-0749 — PCV Catch Can Kit, Toyota GR Supra A90/A91 2019+ (sold separately)

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined billet aluminium — precision fit, no compromise
• ✔ Closed-loop, track-legal design — no VTA
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. CCV side only — does not address PCV blow-by. Pair with Radium 20-0749 PCV Kit for complete coverage. Professional installation recommended. No permanent vehicle modifications required.
