Radium CCV Fluid Lock Catch Can Kit, Mitsubishi Evo X

The Radium Engineering 20-1106-FL CCV Fluid Lock Catch Can Kit is a purpose-built crankcase ventilation solution for the Mitsubishi Evo X. Designed to intercept oil-saturated blow-by vapours before they re-enter the intake stream, this kit protects your turbocharger, intercooler, and intake system from oil contamination — a critical upgrade on any performance-driven Evo X.

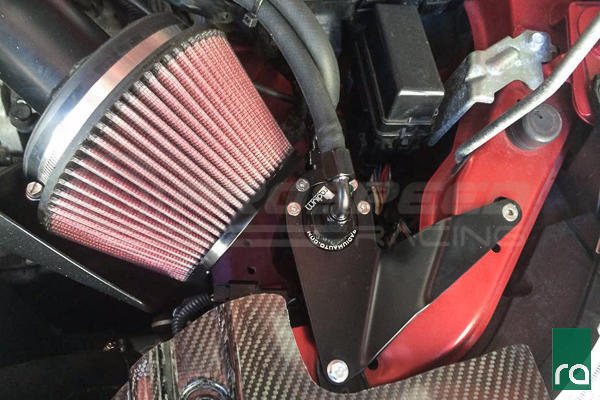

This kit installs in-line with the CCV hose that runs from the valve cover port to the turbo air intake pipe. Left unaddressed, this hose routes crankcase vapours, unspent fuel, and oil sludge directly into the intake — coating the intercooler core, reducing thermal efficiency, and degrading performance over time. The Radium catch can collects these contaminants before they reach the intake.

The system is a closed-loop design — it does not vent to atmosphere (VTA), making it emissions compliant and track legal. Clean, filtered air is routed back through the engine to promote negative crankcase pressure for optimal performance, while preventing oil vapours from entering the cabin.

Key Features

• Fluid Lock design — prevents fluid from draining back into the engine when the catch can is full
• Large 10AN ORB ports — maximise flow and minimise restriction
• 4AN ORB drain port — easy, clean draining without removing the can
• 2-step oil separation baffling — highly effective at separating oil mist from blow-by vapour
• O-ring sealed dipstick — check fluid level without opening the system
• Billet aluminium construction — CNC machined with integrated condenser
• Closed-loop system — emissions compliant and track legal, no VTA
• Compatible with all Evo X models and years — including both metal and plastic valve cover variants

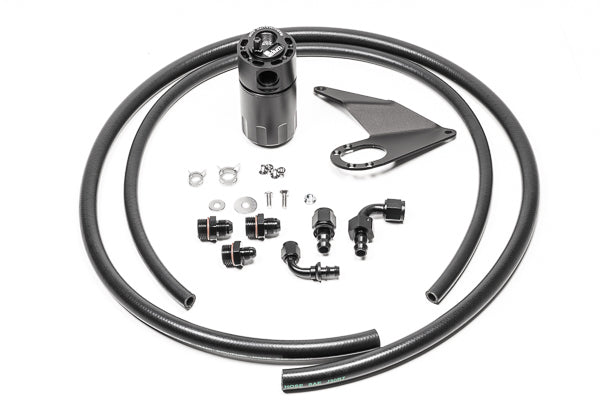

Kit Includes

• Billet oil catch can with integrated condenser and dipstick
• Laser cut, powder coated LH mounting bracket
• Anodised aluminium hose ends and adapter fittings
• Sufficient PCV hose for custom applications
• Stainless steel mounting hardware

Vehicle Fitment

• 2007-2015 Mitsubishi Lancer Evolution X (Evo X)

Note: This kit was designed for use with the OEM intake system. If an aftermarket intake is installed, consider purchasing the 20-0300 Alternate Location Mount separately.

Available Part Numbers

• 20-1106-FL — CCV Fluid Lock Catch Can Kit, Mitsubishi Evo X (this kit)

Why Radium Engineering?

• ✔ Designed and manufactured in the USA
• ✔ CNC machined billet aluminium — precision fit, no compromise
• ✔ Closed-loop, track-legal design — no VTA
• ✔ Trusted by professional motorsport teams and serious enthusiasts worldwide
• ✔ Exclusively distributed in Australia by Coore

Genuine Radium Engineering product. Stocked in Sydney for fast Australian delivery. Professional installation recommended. Contact us to verify fitment for modified vehicles.
