Radium AN Male to Female Fitting w/Inline 1/8" NPT Female Port
Couldn't load pickup availability
Radium AN Male to Female Fitting w/Inline 1/8" NPT Female Port
Tee adapter fitting engineered by Radium Engineering to provide inline sensor or gauge port capability in AN hose systems. This versatile fitting features AN male to AN female connections with an integrated 1/8" NPT female port, allowing installation of sensors or gauges inline without interrupting hose flow.

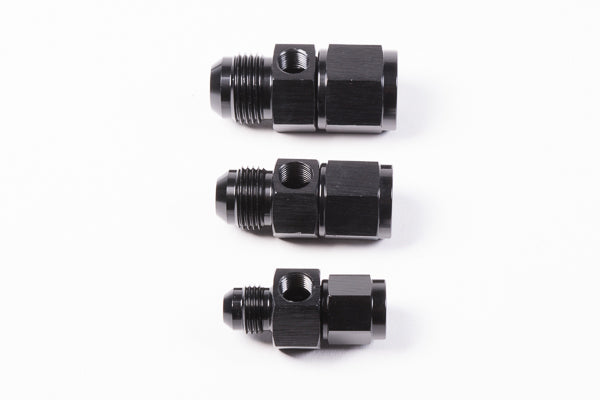

Available Sizes
- 6AN Male to 6AN Female with 1/8" NPT Female
- 8AN Male to 8AN Female with 1/8" NPT Female
- 10AN Male to 10AN Female with 1/8" NPT Female
Key Features
- ✓ AN male to AN female tee adapter
- ✓ Integrated 1/8" NPT female port for sensors or gauges
- ✓ CNC-machined billet aluminum construction
- ✓ Anodized finish for corrosion resistance
- ✓ E85 and all fuel types compatible
- ✓ Professional-grade motorsport component
- ✓ Inline installation without interrupting flow
Technical Specifications
- Application: Universal - inline sensor/gauge port
- Part Number: 14-0148 (6AN), 14-0148-08 (8AN), 14-0148-10 (10AN)
- Inlet: AN male (6AN, 8AN, or 10AN)
- Outlet: AN female (6AN, 8AN, or 10AN)
- Port: 1/8" NPT female
- Construction: CNC-machined billet aluminum
- Fuel Compatibility: Gasoline, E85, and alternative fuels
Applications

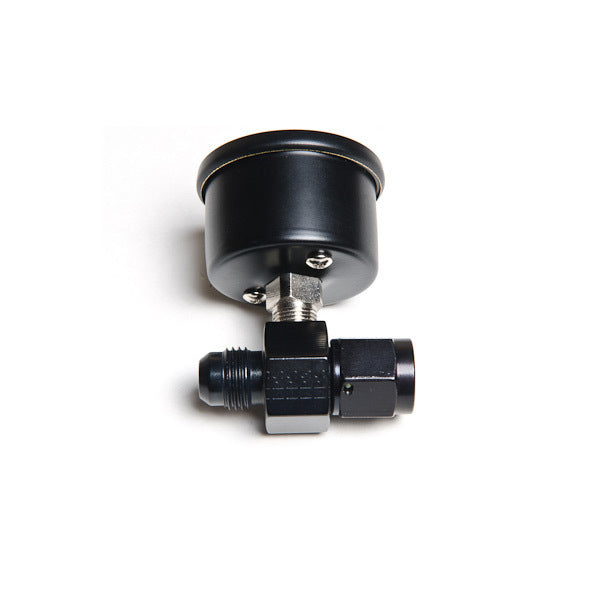

Ideal for installing fuel pressure gauges, oil pressure sensors, temperature sensors, or other 1/8" NPT sensors inline with AN hose systems. Perfect for fuel systems, oil systems, and other high-performance applications requiring inline monitoring without interrupting flow.
Benefits
- Inline installation maintains clean hose routing
- 1/8" NPT port accepts wide range of sensors and gauges
- CNC-machined precision ensures leak-free fitment
- Anodized finish provides long-term durability
- Available in multiple AN sizes for versatility
- Professional motorsport-grade construction
Important Note: Gauge or sensor not included. Verify AN size and sensor thread compatibility before ordering.
Fast shipping available throughout Australia. Lead times may vary - contact us for current availability.
