Radium 10AN Male Swivel Banjo 13.5mm Press Fit Fitting - Toyota 2JZ Exhaust
Radium 10AN Male Swivel Banjo 13.5mm Press Fit Fitting - Toyota 2JZ Exhaust
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description

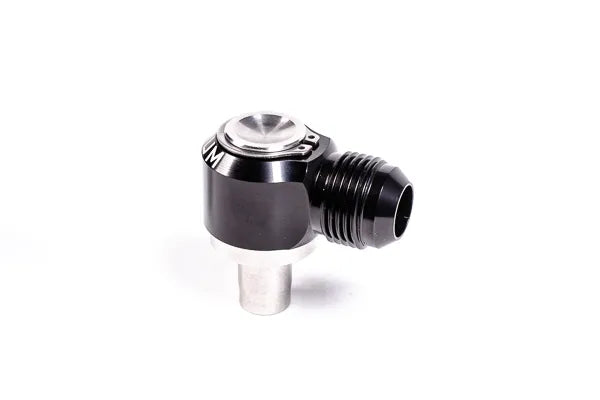

10AN male swivel banjo fitting with 13.5mm press fit for Toyota 2JZ exhaust manifolds. Engineered by Radium Engineering to provide a professional, leak-free connection for fuel rail plumbing on Toyota inline-six engines.
Compatibility
- Toyota 2JZ-GTE engines - exhaust manifold
- Toyota Supra (JZA80)
- Toyota Aristo (JZS147, JZS161)
- Toyota Chaser (JZX90, JZX100)
- Toyota Mark II (JZX90, JZX100)
- Toyota Soarer (JZZ30)
Key Features
- ✓ 13.5mm press fit diameter for Toyota 2JZ exhaust manifolds
- ✓ 10AN male swivel fitting for versatile hose routing
- ✓ Low-profile design with 19.1mm long snout
- ✓ Stainless steel and aluminum construction
- ✓ 360-degree swivel for optimal hose alignment
- ✓ Viton O-rings for high-temperature sealing
- ✓ Professional-grade motorsport component
- ✓ Anodized and laser engraved
- ✓ Simple press-fit installation - no drilling or welding required
- Application: Toyota 2JZ exhaust manifolds
- Part Number: 20-0409
- Construction: Stainless steel and aluminum
- Press Fit Diameter: 13.5mm
- Snout Length: 19.1mm
- Fitting Size: 10AN male swivel
- Includes: Banjo fitting, Viton O-rings
Applications
Ideal for Toyota 2JZ fuel rail installations requiring professional plumbing connections to the exhaust manifold. Perfect for high-performance and motorsport applications requiring reliable, leak-free fuel delivery in high-temperature environments.
Installation Note: Press fit installation requires proper tooling for secure, leak-free installation.
Fast shipping available throughout Australia. Lead times may vary - contact us for current availability.
Specifications
- Part Number
- 20-0409
- Brand
- Radium Engineering
