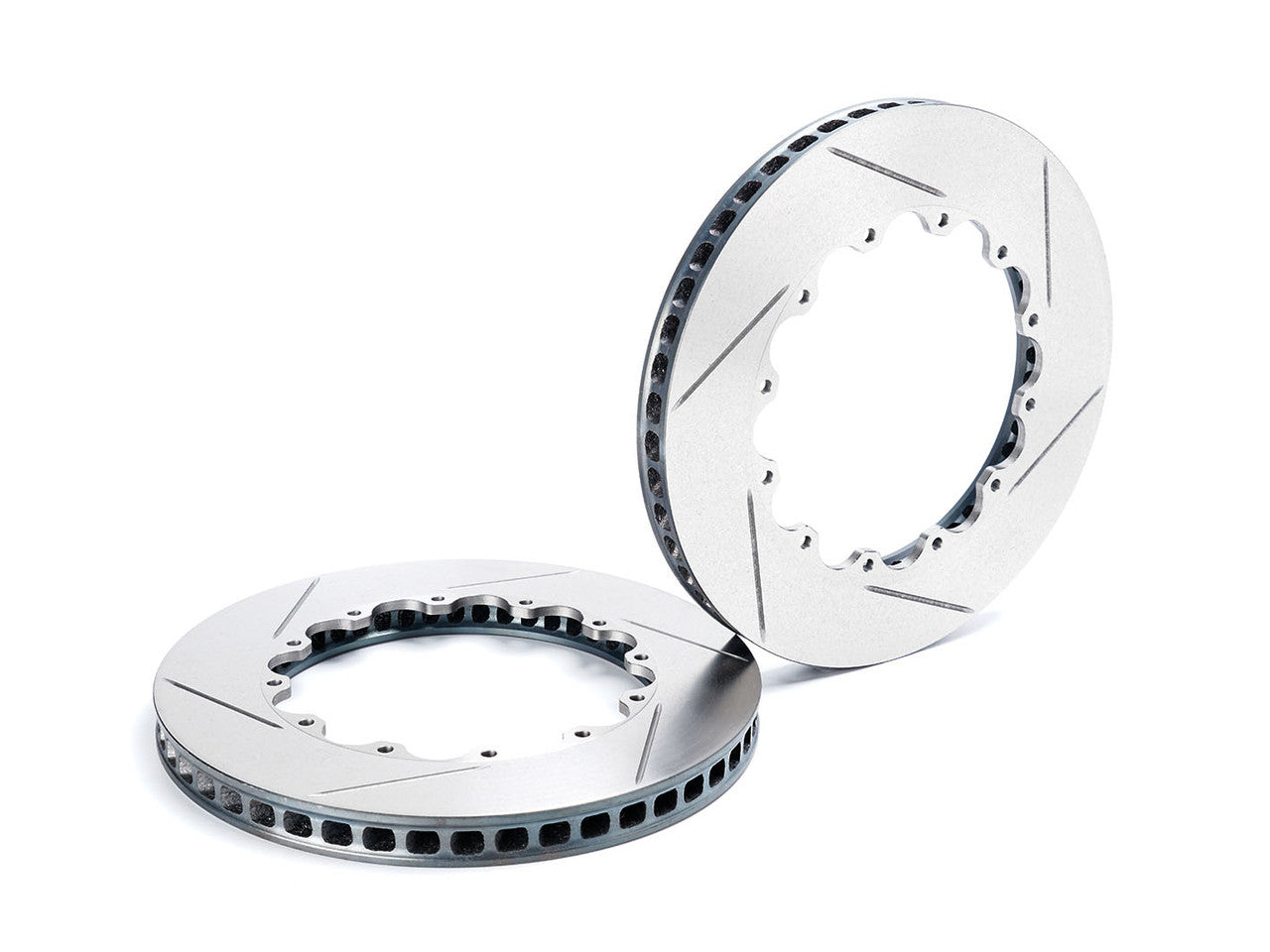

Paragon Brake Rotor Ring 271x18mm 180mm PCD – Formula 3 Dallara F308 / Mygale M07
Couldn't load pickup availability
Precision-engineered brake rotor ring designed for Formula 3 competition, delivering consistent performance under the extreme thermal and mechanical demands of open-wheel racing. Manufactured to exacting tolerances, this Paragon rotor ring features four forward-facing curved slots that comply with F3 regulations while optimizing brake modulation and pad bite.
Paragon's motorsport heritage ensures every rotor ring meets the rigorous standards required for professional racing applications. The curved slot design enhances gas evacuation and maintains consistent friction characteristics throughout extended race sessions, while the precision-machined mounting interface guarantees perfect fitment with Dallara F308 and Mygale M07 chassis equipped with PFC brake systems.
- Diameter: 271mm
- Thickness: 18mm
- Annulus: 35.5mm
- Air Gap: 7mm
- Offset: 0.3mm
- PCD (Pitch Circle Diameter): 10 x 180mm
- Mounting Holes: 15mm x 9.5mm rectangle
- Inside Diameter: 200mm
- Flange Inside Diameter: 159mm
- Flange Thickness: 4.35mm
- Vanes: 48
- Slot Configuration: 4 forward-facing curved slots (F3 compliant)
- Dallara F308 – Front/Rear with PFC brake system
- Mygale M07 – Front/Rear with PFC brake system
- Formula 3 Competition – FIA F3 regulation compliant
Direct Replacement of:
Forza Flat Discs part # FFD.271.18.180.XAL/R
Forza Flat Discs Slotted 271x18mm 180mm PCD suit Formula 3 - Dallara F308 Front/Rear, Mygale M07 with PFC (Pair)
- F3 Regulation Compliant – Four forward-facing curved slots meet FIA Formula 3 technical regulations
- Precision Machined – Tight tolerances ensure perfect balance and consistent performance
- Optimized Vane Design – 48 internal vanes maximize heat dissipation and thermal stability
- Race-Proven Geometry – Curved slot pattern enhances pad bite and modulation
- Direct Fitment – Engineered specifically for Dallara F308 and Mygale M07 chassis with PFC systems
Paragon has established itself as a trusted name in motorsport braking solutions, delivering components that meet the exacting demands of professional racing teams worldwide. Every rotor ring undergoes rigorous quality control to ensure dimensional accuracy, material consistency, and performance reliability under competition conditions.
Fast Australian Shipping: In-stock items ship same-day from our Australian warehouse. Backed by Paragon's quality assurance and Coore's commitment to motorsport excellence.
Engineered for champions, trusted by professionals.
