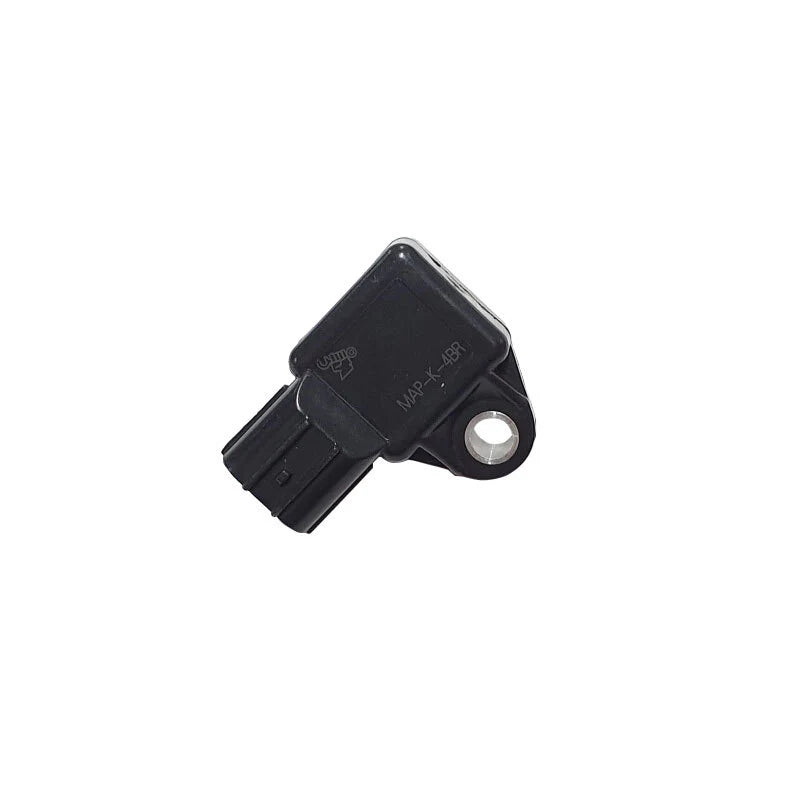

Omni Power 4 Bar MAP Sensor - Honda K Series/Subaru BRZ/Toyota 86

Regular price $219.95
Regular price Sale price $219.95
Shipping calculated at checkout.
Brand: Revzone
Availability: Out of stock
SKU: MAP-K-4BR
Regular price $219.95
Regular price Sale price $219.95

Omni Power USA 3, 4 & 5 Bar MAP Sensors

Omni Power USA MAP (Manifold Absolute Pressure) sensors use state-of-the-art bipolar op amp circuitry with thin film resistor networks built into each microchip. A specially designed silicon pressure sensor calculates pressure changes on a true linear 0–5 volt scale, automatically compensating for temperature changes to maintain 99%+ accuracy from 32°F to 180°F.

This true linear scaling means no re-tuning is required at different altitudes, unlike many competitors' sensors which can cause idle issues, drivability problems, or even engine damage when elevation changes.

The 4 Bar MAP sensor can precisely measure boost from 1–43+ psi while maintaining smooth OEM drivability, all in a housing that matches OEM dimensions for easy plug-and-play installation.


Key Features

  • Cases designed to withstand over 130 PSI without leaking
  • Operating range: -40°F to 260°F (-40°C to 127°C)
  • Ultra-fast response time: 10% to 90% of the pressure scale in 0.001 seconds
  • Automatic temperature compensation
  • True linear scaling for perfect drivability at all boost and vacuum levels
  • Compatible with all aftermarket engine management systems
  • Minimum 99% accuracy across full range under all conditions
  • Improves engine operation, allows higher boost, and enhances drivability
  • Direct plug-and-play with OEM dimensions and appearance
  • Hand-assembled, pressure and function checked in the USA for quality control

Technical Specifications

3 Bar Sensor

  • Min Volts: 0.6 @ 30 kPa
  • Max Volts: 4.75 @ 300 kPa
  • Transfer Function: Vout = 5(.003074074 × P + .027777778)
  • Multiplier: 9.436
  • Offset: -1.311

4 Bar Sensor

  • Min Volts: 0.6 @ 30 kPa
  • Max Volts: 4.75 @ 400 kPa
  • Transfer Function: Vout = 5(.002243243 × P + .052702703)
  • Multiplier: 12.931
  • Offset: -2.905

5 Bar Sensor

  • Min Volts: 0.6 @ 30 kPa
  • Max Volts: 4.75 @ 500 kPa
  • Transfer Function: Vout = 5(.001765957 × P + .067021277)
  • Multiplier: 16.426
  • Offset: -5.504

Note: Professional installation is recommended to ensure proper performance and calibration.
