Description
MCA Reds are MCA's longest-running performance line and the control suspension in several racing categories in Australia and overseas. Valving and spring rates are chosen by MCA for each customer, so a set can be built for circuit, time attack, drift, drag or roll racing, or softened off for comfortable street use.
Suited to
- Custom valving and springs chosen by MCA for your use
- Suits most tarmac-based applications, from street to competition
- Height range set to suit your build
Features
- Designed, developed and assembled to order by MCA Suspension in Brisbane
- Custom valving and springs chosen by MCA for your use

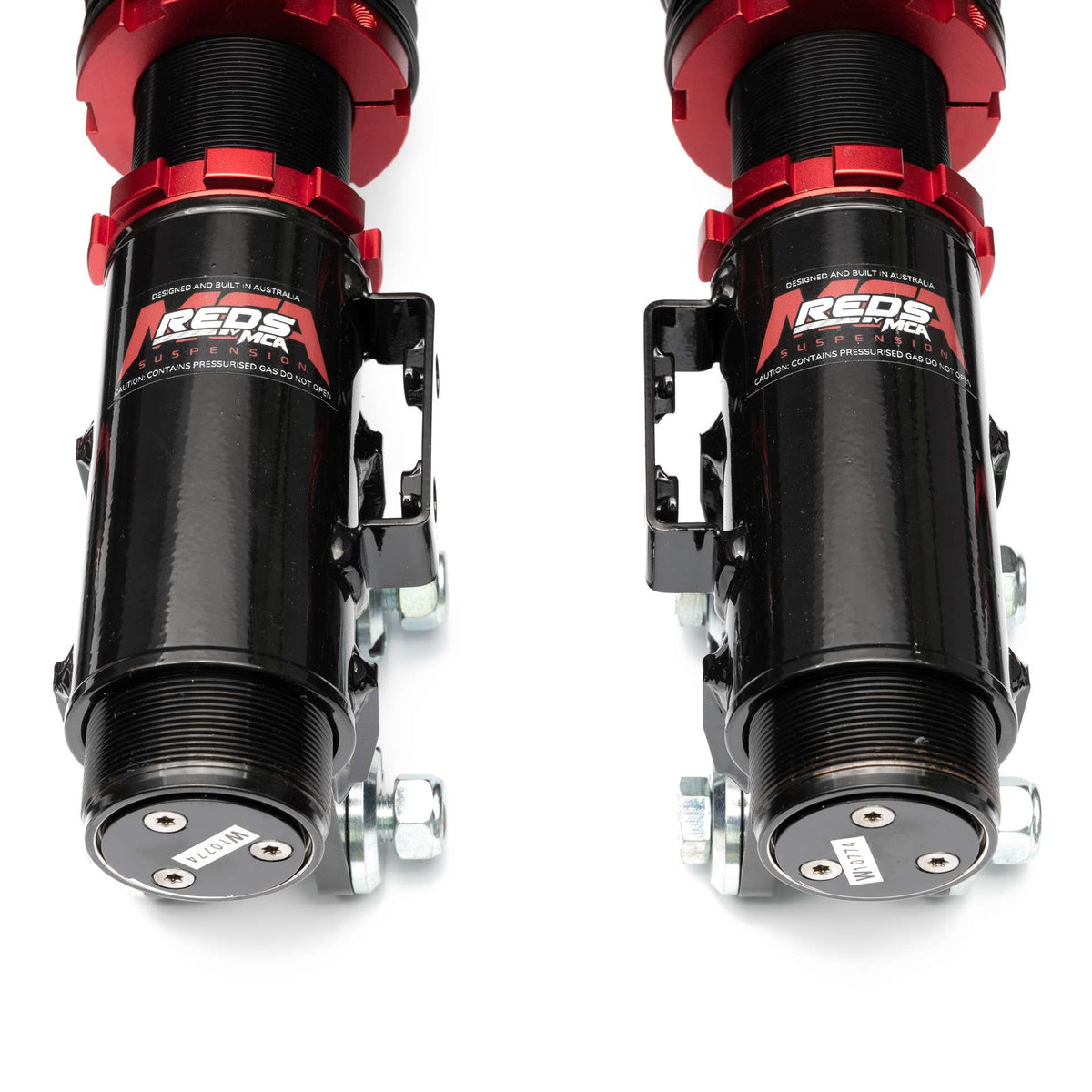

- Monotube dampers with MCA Fusion valving
- 12-click hard/soft damper adjustment (bump and rebound together)

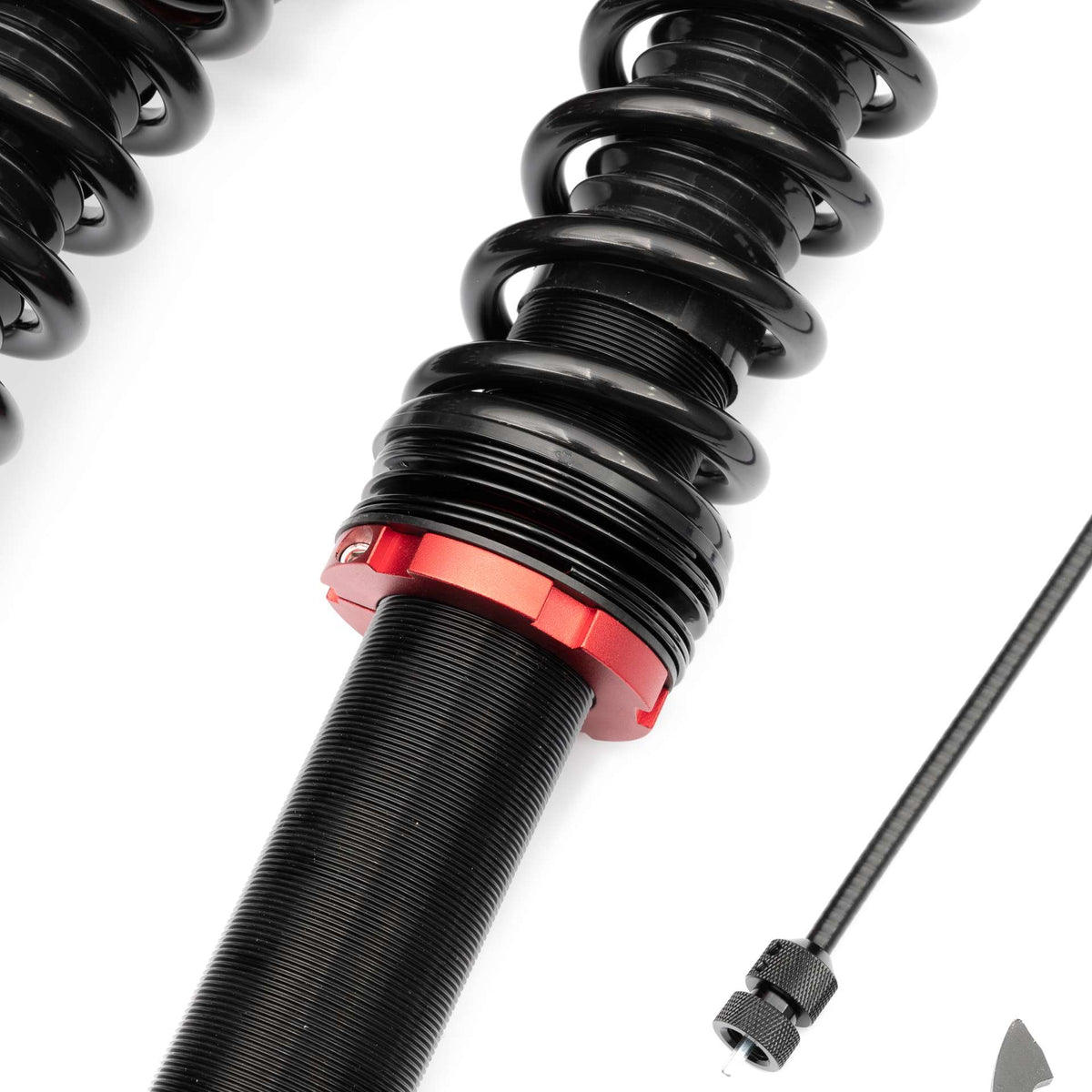

- Ride height set by spring seat position, with wheel travel preset by MCA at the bottom mount

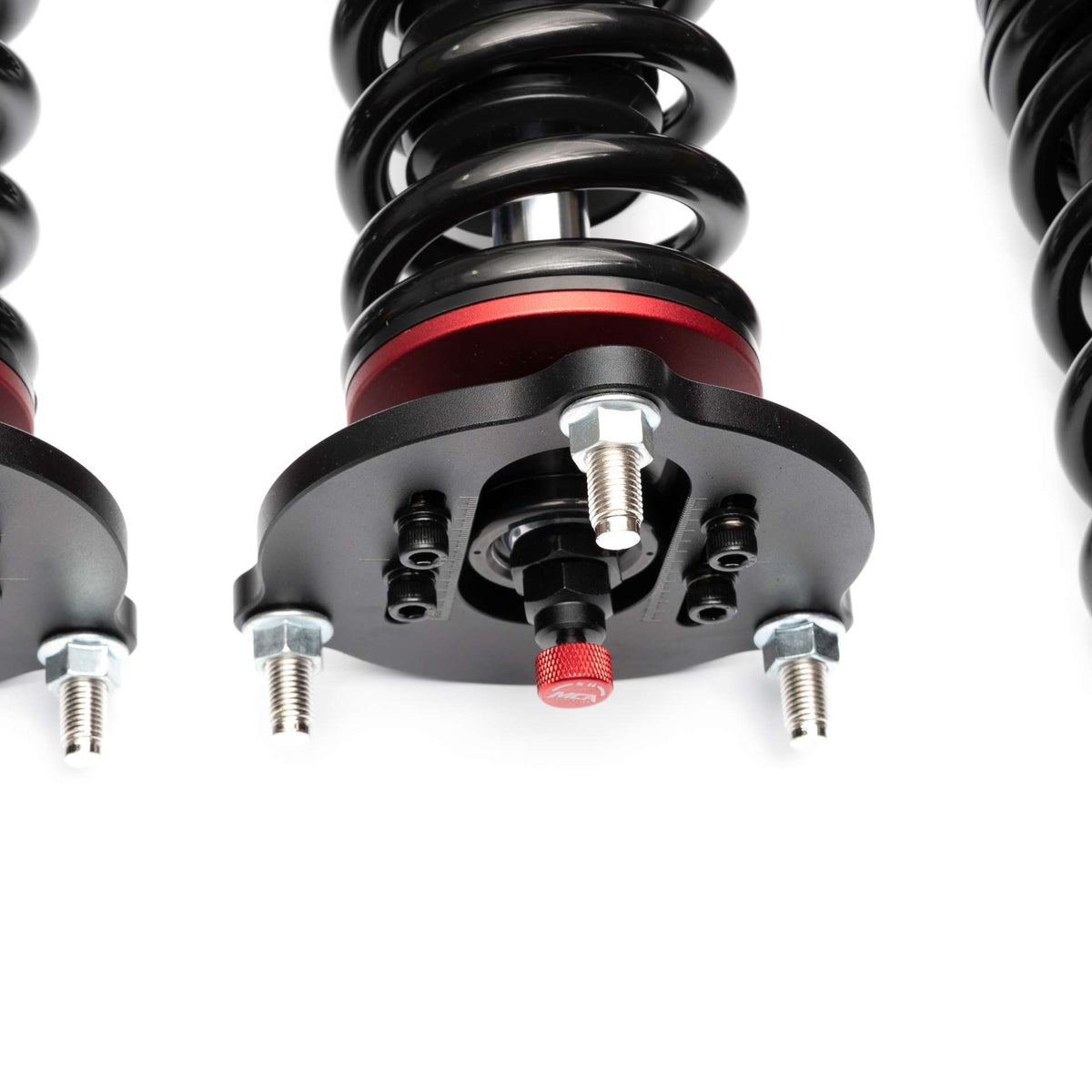

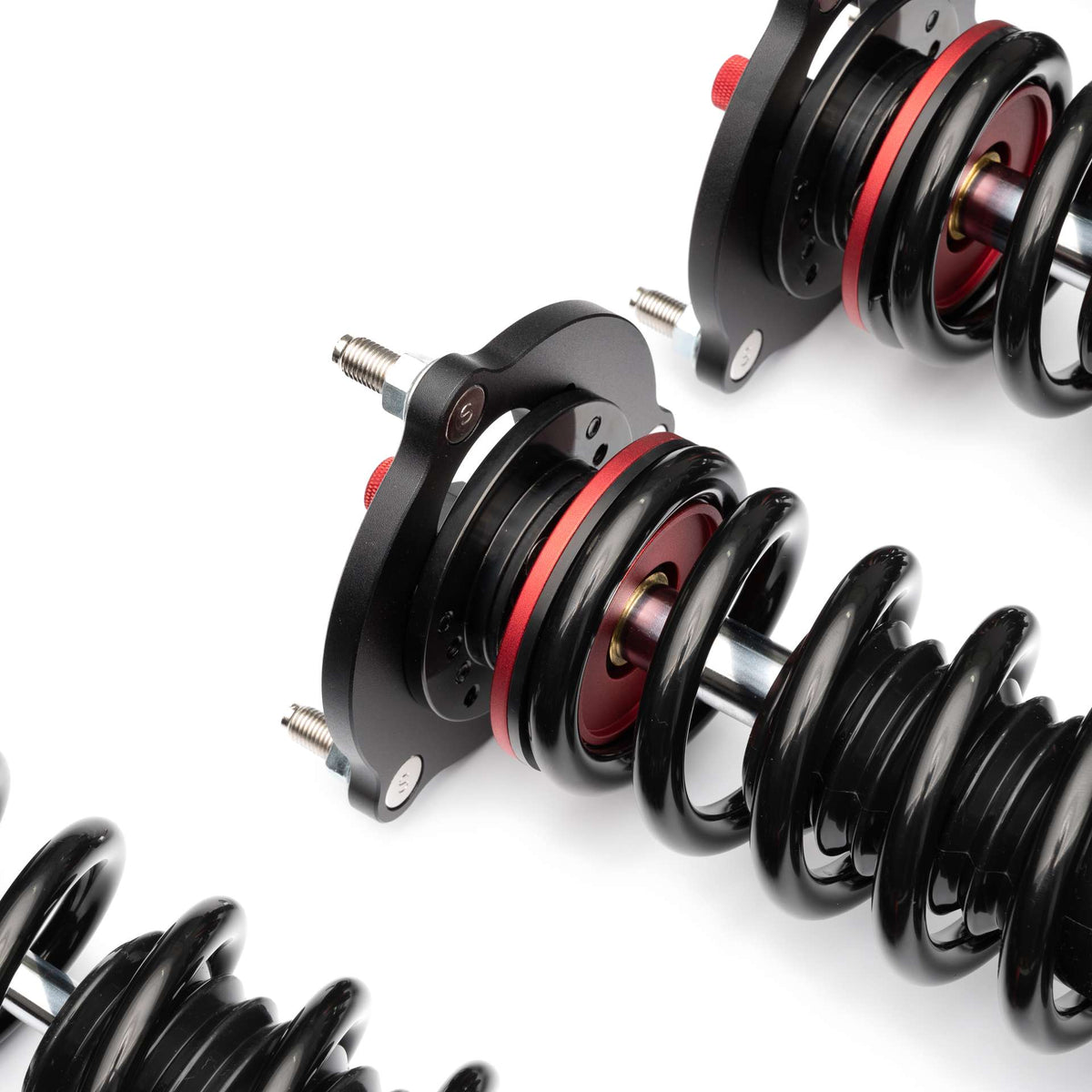

- Camber-adjustable top mounts and camber washer bottom mounts where the vehicle allows

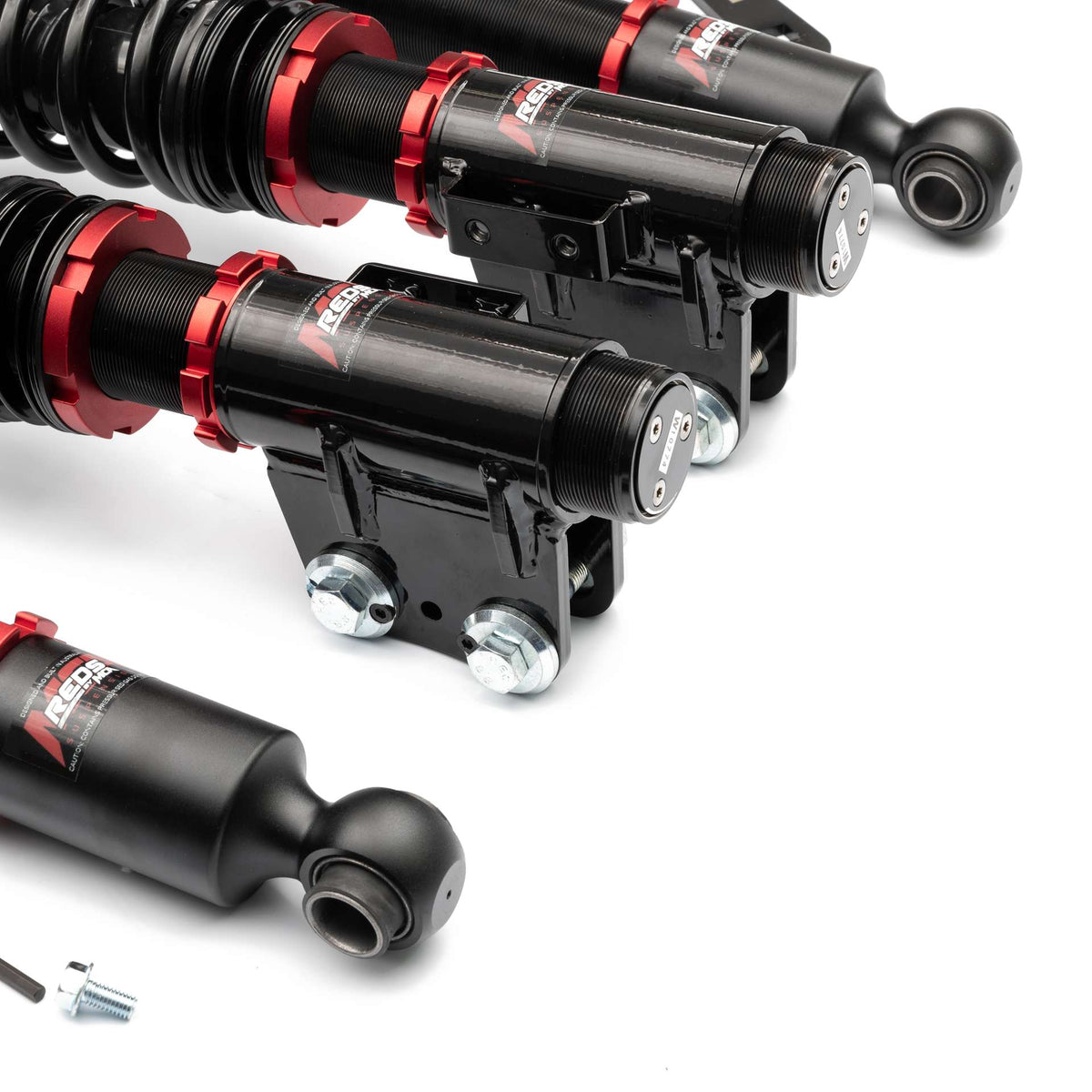

- Damper adjuster extenders and reinforced double-gusseted lower mounts where needed
- Helper springs keep the main spring captive at full droop
- Can be repaired, reconditioned, revalved and resprung in Australia
- 3 year transferable warranty that covers motorsport use
Fitment
- Nissan 180SX RPS13 (1989-1998)
- Front: Non-inverted strut design, camber tops, camber washer bottom mounts
- Rear: Coilover design, 20cm damper adjuster extenders

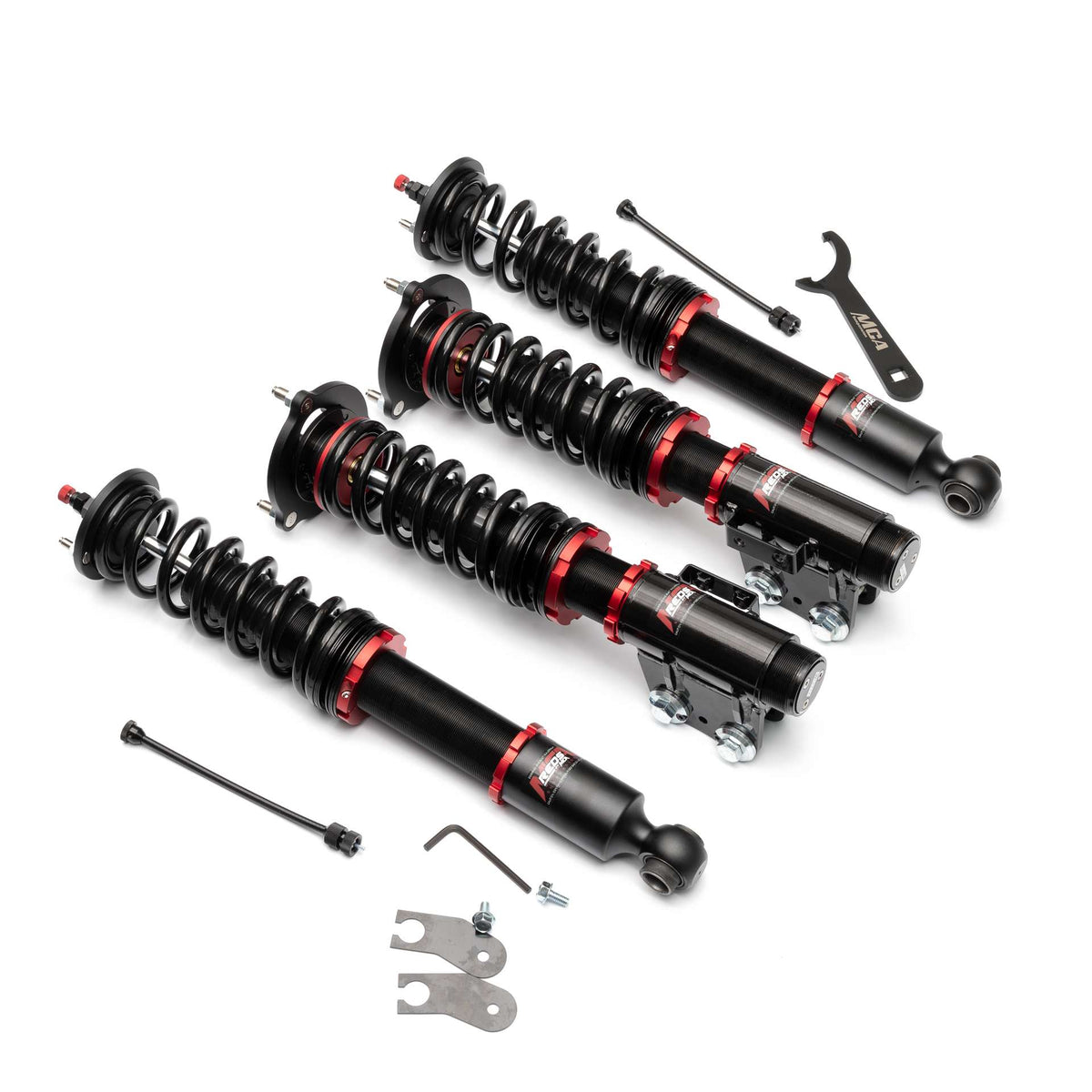

In the box
- Complete suspension system (or the front or rear pair you choose)
- Height adjustment tools
- Setup sheet and information sheets
Notes
- Made to order: MCA assembles each set fresh once it is ordered. Allow approx 4 weeks for assembly and dispatch.
- Choose a complete set, or a front or rear pair to do one axle.
- After you order we will contact you for your build details (power, weight, wheels and tyres, and how the car is used) so MCA can set the valving and spring rates.
- Check your state's ride height rules before lowering a road-registered car.
Specifications
- Part Number
- NIS180-RS
- Brand
- MCA Suspension
- Series
- Reds
- Vehicle
- Nissan 180SX RPS13 (1989-1998)
- Spring Rates
- Custom, set by MCA for your build
- Front
- Non-inverted strut design, camber tops, camber washer bottom mounts
- Rear
- Coilover design, 20cm damper adjuster extenders
- Damper Adjustment
- 12 clicks, bump and rebound together
- Height Range
- Set to suit your build
- Construction
- Monotube
- Assembly
- Made to order in Brisbane, Australia
- Lead Time
- Approx 4 weeks
- Warranty
- 3 years, transferable, covers motorsport use
