MCA Pro Drag Coilovers - Subaru Impreza WRX STI GDB 05-07
MCA Pro Drag Coilovers - Subaru Impreza WRX STI GDB 05-07
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
- Secure checkout
- 14-day returns
- Genuine parts
- Melbourne-based support
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description
MCA Pro Drag comes from MCA's work with drag teams running in the 6s. It is designed around drag radials on prepped surfaces, but the valving is versatile enough for unprepped surfaces and roll racing too. MCA can adjust the spring rates to suit your car.
Suited to
- Drag racing on prepped and unprepped surfaces (firmer clicks)
- Roll racing (softer clicks)
- Street use with a firm but not harsh ride
- Height range from factory height down to top of tyre level with the guard (estimate)
Features
- Designed, developed and assembled to order by MCA Suspension in Brisbane
- Pre-selected valving and spring package from MCA's Reds range
- Monotube dampers with MCA Fusion valving
- 12-click hard/soft damper adjustment (bump and rebound together)
- Ride height set by spring seat position, with wheel travel preset by MCA at the bottom mount
- Camber-adjustable top mounts and camber washer bottom mounts where the vehicle allows

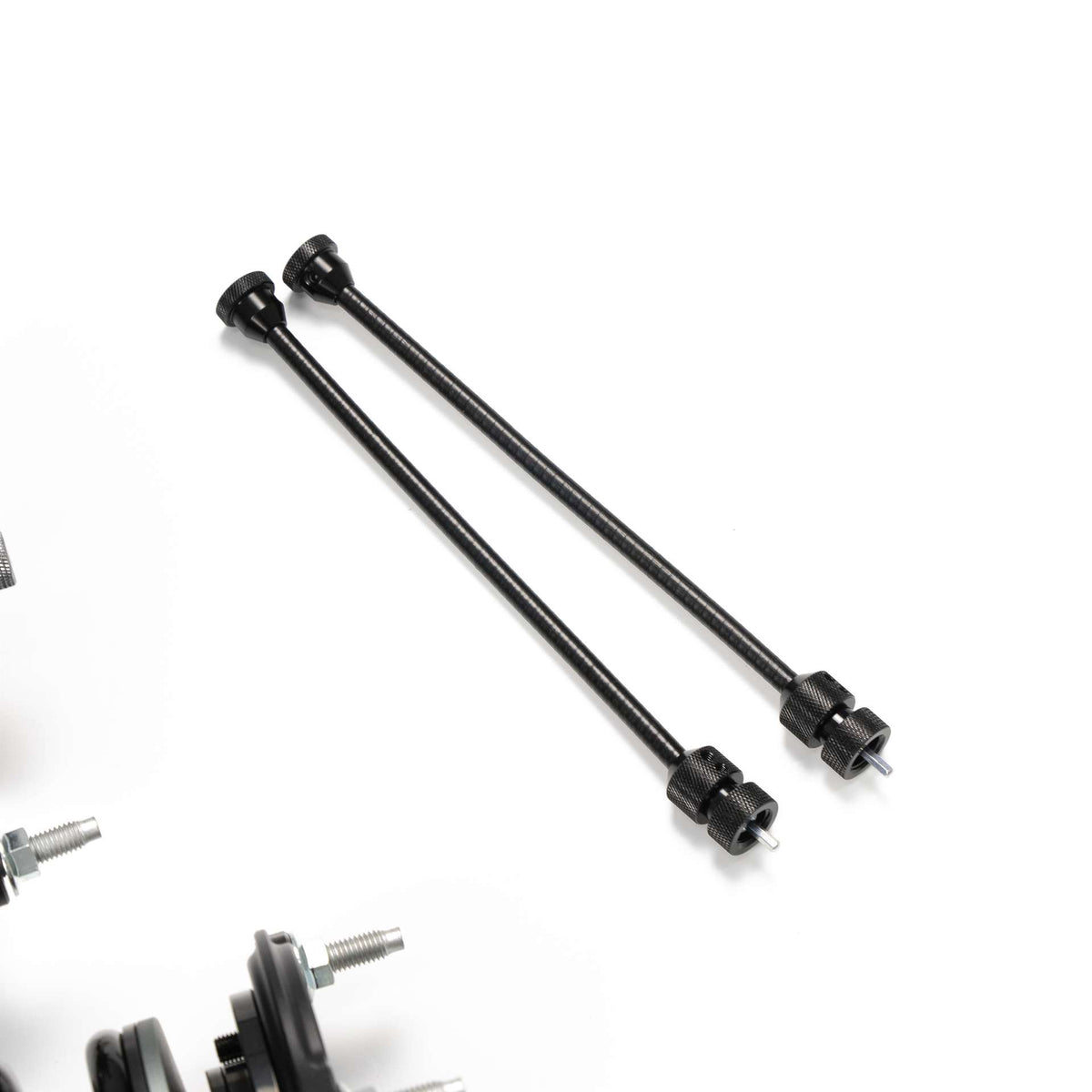

- Damper adjuster extenders and reinforced double-gusseted lower mounts where needed
- Helper springs keep the main spring captive at full droop
- Can be repaired, reconditioned, revalved and resprung in Australia
- 3 year transferable warranty that covers motorsport use
Fitment
- Subaru Impreza WRX STI GDB (2005-2007)
- Front: Non-inverted strut design, camber tops, camber washer bottom mounts, 5x114.3 front stud pattern, MCA shock shield compatible
- Rear: Non-inverted strut design, camber tops, camber washer bottom mounts, 20cm damper adjuster extenders, MCA shock shield compatible
In the box
- Complete suspension system (or the front or rear pair you choose)
- Height adjustment tools
- Setup sheet and information sheets
Notes
- Made to order: MCA assembles each set fresh once it is ordered. Allow approx 4 weeks for assembly and dispatch.
- Choose a complete set, or a front or rear pair to do one axle.
- After you order we will contact you for your build details (power, weight, wheels and tyres, and how the car is used) so MCA can set the spring rates to suit.
- Check your state's ride height rules before lowering a road-registered car.
Specifications
- Part Number
- SUBGD03-PDRAG
- Brand
- MCA Suspension
- Series
- Pro Drag
- Vehicle
- Subaru Impreza WRX STI GDB (2005-2007)
- Spring Rates
- Front 9kg, Rear 6kg
- Front
- Non-inverted strut design, camber tops, camber washer bottom mounts, 5x114.3 front stud pattern, MCA shock shield compatible
- Rear
- Non-inverted strut design, camber tops, camber washer bottom mounts, 20cm damper adjuster extenders, MCA shock shield compatible
- Damper Adjustment
- 12 clicks, bump and rebound together
- Height Range
- Factory height down to top of tyre level with the guard (estimate)
- Construction
- Monotube
- Assembly
- Made to order in Brisbane, Australia
- Lead Time
- Approx 4 weeks
- Warranty
- 3 years, transferable, covers motorsport use
