Koyo Performance Radiator - Toyota GR Yaris GXPA16 G16E-GTS MT 2020+

$899.00

Koyo Performance Radiator - Toyota GR Yaris GXPA16 G16E-GTS MT 2020+

Name: Koyo Performance Radiator - Toyota GR Yaris GXPA16 G16E-GTS MT 2020+
Brand: Koyo
SKU: KH013831
Price: 899.00 AUD
Availability: InStock

$899.00

or 4 interest-free payments of $224.75 with Afterpay or Zip

SKU:

KH013831

Availability: Available to order

Get an ETA

Secure checkout
14-day returns
Genuine parts
Melbourne-based support

Vehicle fitment

This part is listed to fit the following vehicles.

Toyota GR Yaris GXPA16

In Melbourne? Fit it in our workshop.

We fit parts in-house at the RevZone workshop. Book a time and bring your car in.

Book a fitting

Application: Toyota GR Yaris | 4BA-GXPA16 (3D Hatch) | G16E-GTS 1.6L Turbo Petrol AWD | Manual Transmission

Part Number: KH013831

The GR Yaris is one of the most exciting homologation specials in decades - a purpose-built rally-derived hot hatch with a 200kW 1.6L three-cylinder turbo, a bespoke AWD system, and a chassis that punches well above its class. The G16E-GTS is a highly stressed engine that generates serious heat, and with the GR Yaris increasingly popular on track and in rally events, cooling performance matters.

Koyorad's all-aluminium radiator is a direct bolt-in performance upgrade for the GXPA16, engineered to the same factory fit and mounting points as the OE unit. Nocolok furnace brazed, precision TIG welded by hand, and triple pressure tested - it retains all OEM fan shroud mounts and stock hose connections with no modifications required.

Why Koyorad?

Precise Tube & Fin Alignment - Strict quality control ensures optimal coolant flow and maximum heat transfer efficiency across the entire core.
Nocolok Furnace Brazing - All tubes, fins, headers, and brackets are bonded in a state-of-the-art Nocolok furnace, creating a structure that resists vibration, road debris, and the elements.
Billet Filler Neck - Precision-machined billet filler necks are fitted to every unit for superior strength, durability, and a reliable seal.
OE-Specific Mounting - Application-specific mounting points for fan shrouds, inlet/outlet hoses, and top/bottom pins ensure a pain-free, no-modification install.
Hand-Crafted Heliarc Welds - Each radiator is individually Heliarc welded by hand, creating the strongest possible aluminium-to-aluminium bond across all components.

Cross Reference

Koyorad	KH013831
Toyota OEM	16400 18050

Fitment

Year	Make	Model	Chassis	Submodel
2020+	Toyota	GR Yaris	4BA-GXPA16 (3D Hatch)	GR - G16E-GTS 1.6L Turbo Petrol AWD (200kW)

Sold individually. Manual transmission fitment only. Lead times may apply - contact us for availability and shipping estimates.

Brand: Koyo
Part Number: KH013831

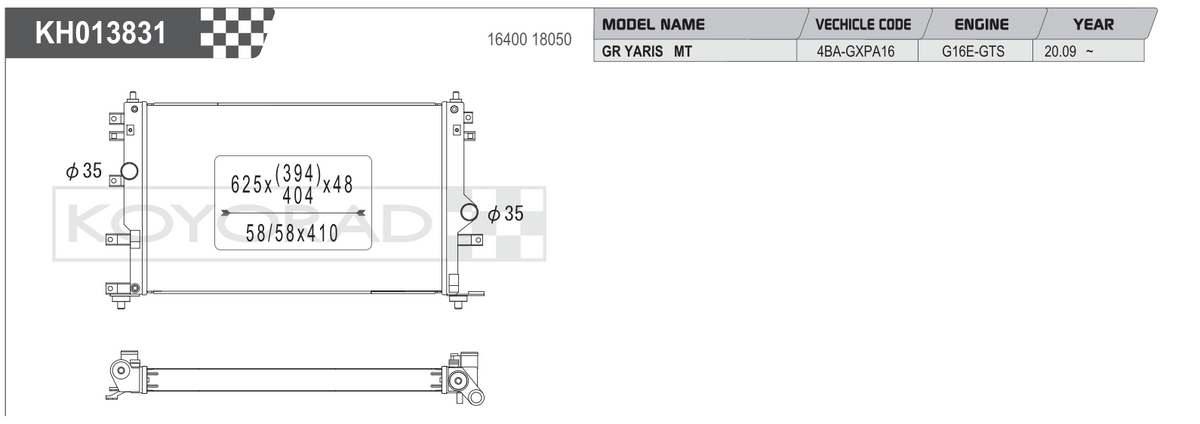

Core Thickness: 48mm
Core Dimensions (H × W): 625 × 394/404mm
Tube Pitch: 58/58 × 410mm
Inlet / Outlet Diameter: Ø35mm (left & right)
Construction: All Aluminium, Nocolok Brazed, Heliarc Welded
Transmission: Manual (MT)
Fan Shroud: Retains OEM mounts
Hoses: Compatible with stock radiator hoses
Fitment: Direct bolt-in, no modifications required
