Koyo 83-85 Mazda RX-7 fits 1.1/1.3L MT (Includes GSL-SE Trim)

Koyo 83-85 Mazda RX-7 fits 1.1/1.3L MT (Includes GSL-SE Trim)

SKU:
KOYHH063146
$719.95
$719.95 $774.31 Save $54.36

or 4 interest-free payments of $179.98 with Afterpay or Zip
In stock, 8 left Ships from our international warehouse via DHL Express, usually delivered in approx 3-4 business days.
  • Secure checkout
  • 14-day returns
  • Genuine parts
  • Melbourne-based support

In Melbourne? Fit it in our workshop.

We fit parts in-house at the RevZone workshop. Book a time and bring your car in.

Book a fitting
Description
Manual Transmission only. FB Chassis. Includes M12 x 1.25 provision for low coolant sensor located on top tank center. Does not include emissions switch provision on driver's side bottom tank.

This Part Fits:

Year Make Model Submodel
1983-1985 Mazda RX-7 GS
1983-1985 Mazda RX-7 GSL
1984-1985 Mazda RX-7 GSL-SE
1983 Mazda RX-7 Limited Edition
1983-1985 Mazda RX-7 S
Specifications
Brand
Koyo
Part Number
HH063146 / KH063144
Core Type
HH Series - Ultra High Fin Density
Core Thickness
48mm

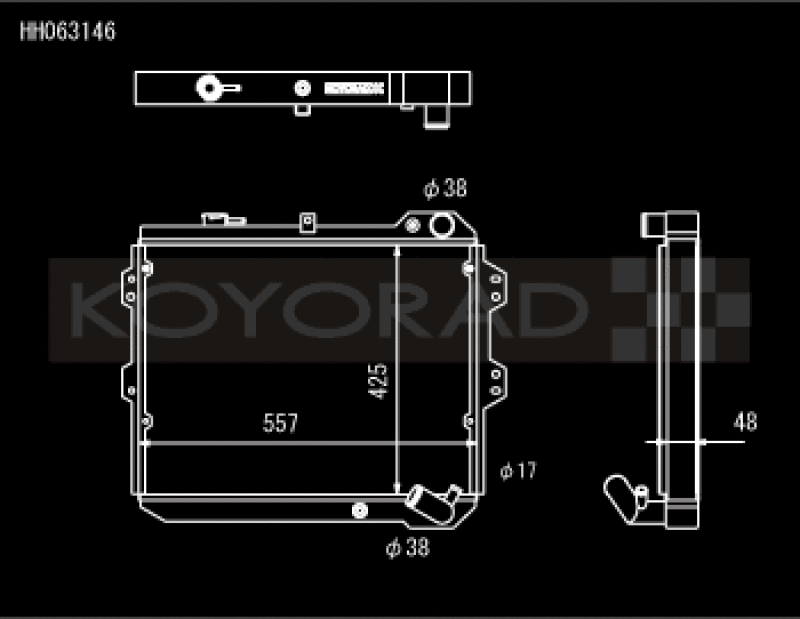

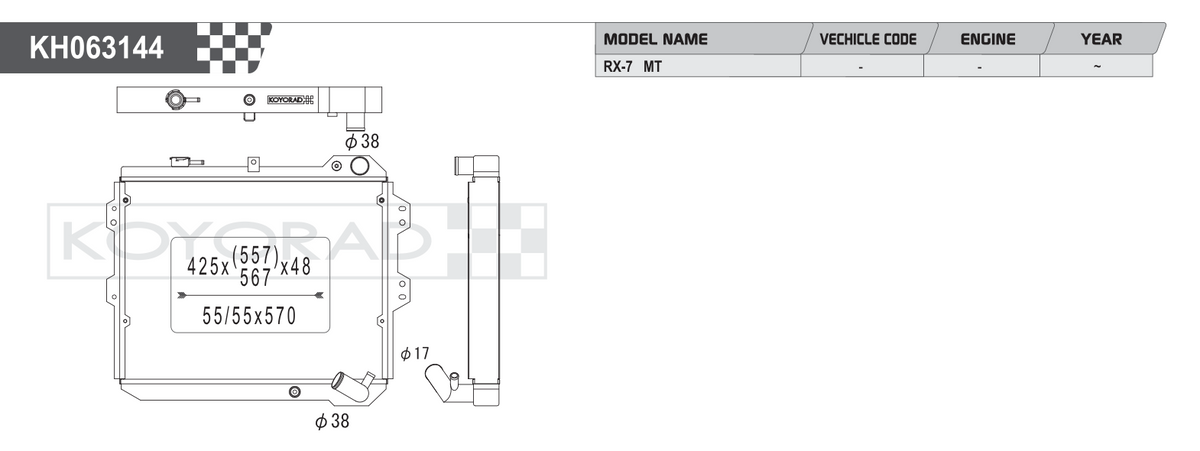

Core Dimensions (H × W)
425 × 557/567mm
Tube Pitch
55/55 × 570mm
Inlet / Outlet Diameter
Ø38mm (top & bottom) / Ø17mm (overflow)
Construction
All Aluminium, Nocolok Brazed, Heliarc Welded
Transmission
Manual (AT requires external transmission cooler)
Fan Shroud
Retains OEM mounts
Sensor Provision
M12 × 1.25 low coolant sensor (top tank centre)
Fitment
Direct bolt-in, no modifications required
