Koyo Performance Radiator - Honda Integra DC5 K20A MT 2001+
Koyo Performance Radiator - Honda Integra DC5 K20A MT 2001+
- Secure checkout
- 14-day returns
- Genuine parts
- Melbourne-based support
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description
Application: Honda Integra MT | LA-DC5 | K20A | Manual Transmission
Part Number: KV081255R | V2425
The DC5 Integra is one of Honda's most celebrated front-wheel-drive performance platforms - a high-revving, naturally aspirated machine built around the legendary K20A engine. Whether you're running a stock build or pushing the DC5 hard on track, the factory radiator can become a limiting factor under sustained high-load conditions. The Koyorad KV081255R is a direct bolt-in performance upgrade engineered specifically for the DC5, delivering improved cooling capacity without any cutting, drilling, or fabrication.
Koyorad's all-aluminium construction and high-efficiency core design dissipate heat faster and more effectively than the factory unit, keeping coolant temperatures in check even under sustained high-load driving. Nocolok furnace brazed, precision TIG welded by hand, and triple pressure tested - it retains all OEM fan shroud mounts and stock hose connections with no modifications required.
Why Koyorad?
- Precise Tube & Fin Alignment - Strict quality control ensures optimal coolant flow and maximum heat transfer efficiency across the entire core.
- Nocolok Furnace Brazing - All tubes, fins, headers, and brackets are bonded in a state-of-the-art Nocolok furnace, creating a structure that resists vibration, road debris, and the elements.
- Billet Filler Neck - Precision-machined billet filler necks are fitted to every unit for superior strength, durability, and a reliable seal.
- OE-Specific Mounting - Application-specific mounting points for fan shrouds, inlet/outlet hoses, and top/bottom pins ensure a pain-free, no-modification install.
- Hand-Crafted Heliarc Welds - Each radiator is individually Heliarc welded by hand, creating the strongest possible aluminium-to-aluminium bond across all components.

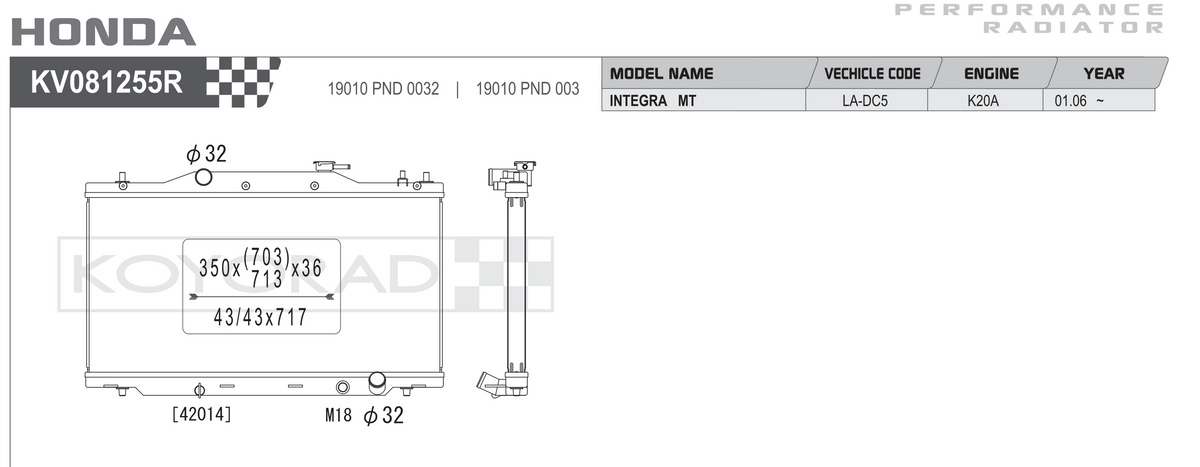

Cross Reference
| Koyorad | KV081255R |
| Honda OEM | 19010 PND 0032 / 19010 PND 003 |
Fitment
| Year | Make | Model | Chassis | Submodel |
|---|---|---|---|---|
| 2001+ | Honda | Integra | LA-DC5 | K20A - Manual Transmission |
Sold individually. Manual transmission fitment only. Lead times may apply - contact us for availability and shipping estimates.
Specifications
- Brand
- Koyo
- Part Number
- KV081255R
- Koyorad SKU
- V2425

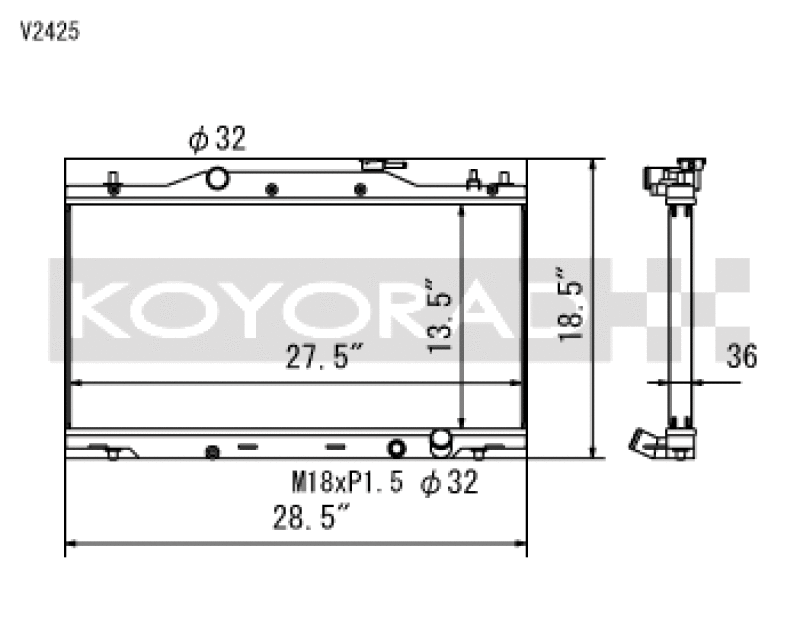

- Core Thickness
- 36mm
- Core Dimensions (H × W)
- 350 × 703/713mm
- Tank Dimensions
- 43/43 × 717mm
- Inlet / Outlet Diameter
- Ø32mm (top and bottom)
- Drain Plug
- M18
- Construction
- All Aluminium, Nocolok Brazed, Heliarc Welded
- Transmission
- Manual (MT)
- Fan Shroud
- Retains OEM mounts
- Hoses
- Compatible with stock radiator hoses
- Fitment
- Direct bolt-in, no modifications required
