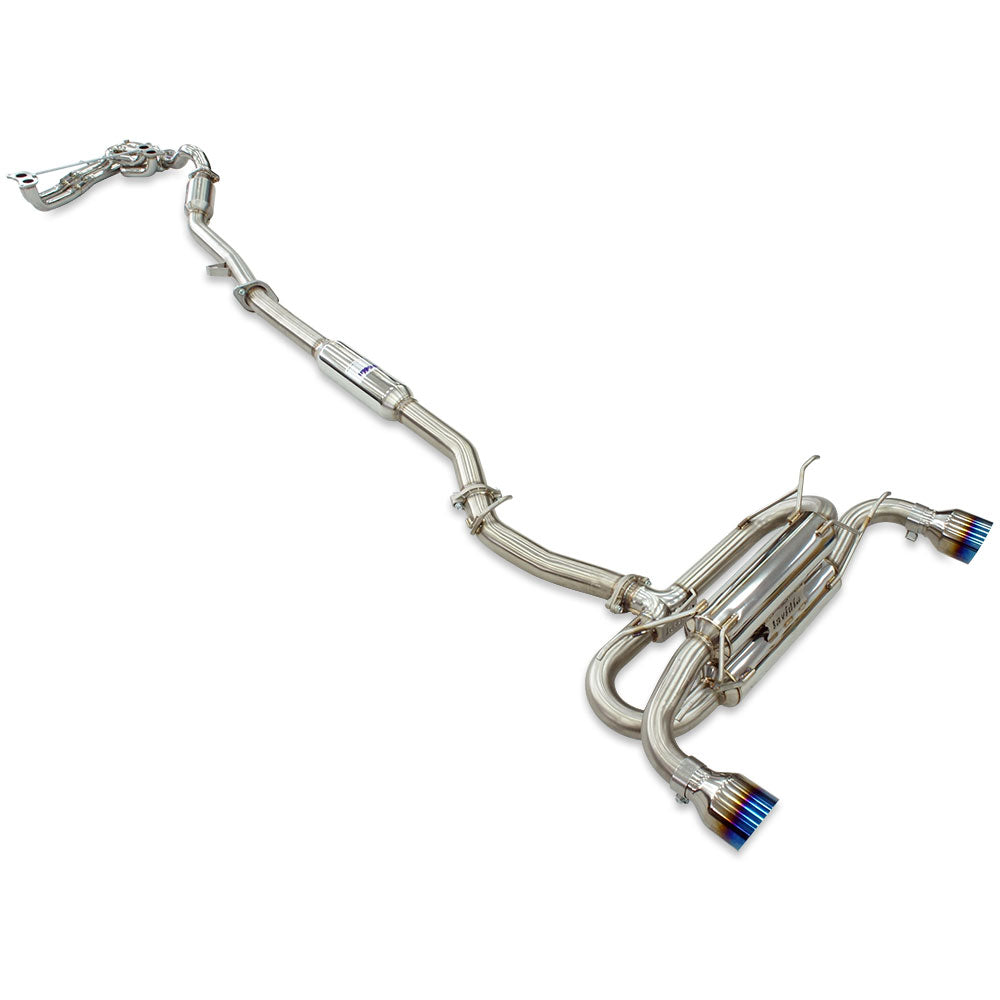

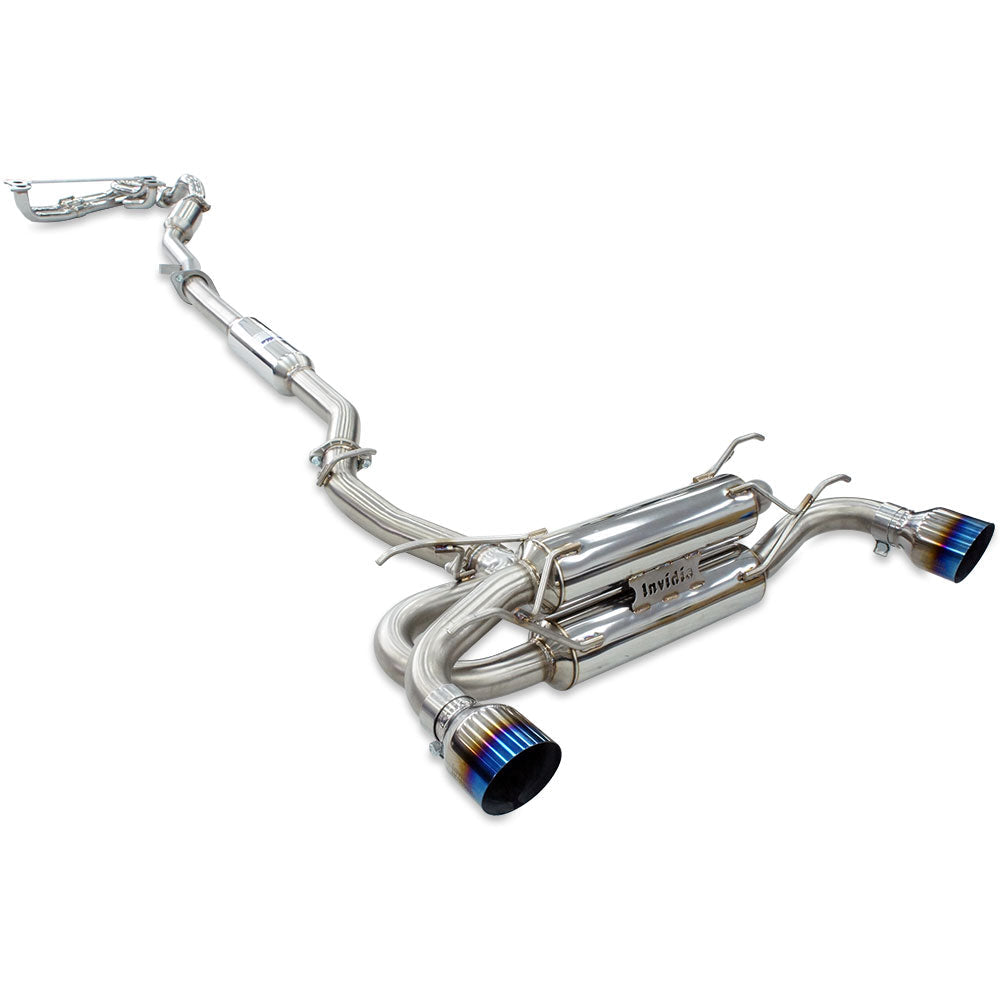

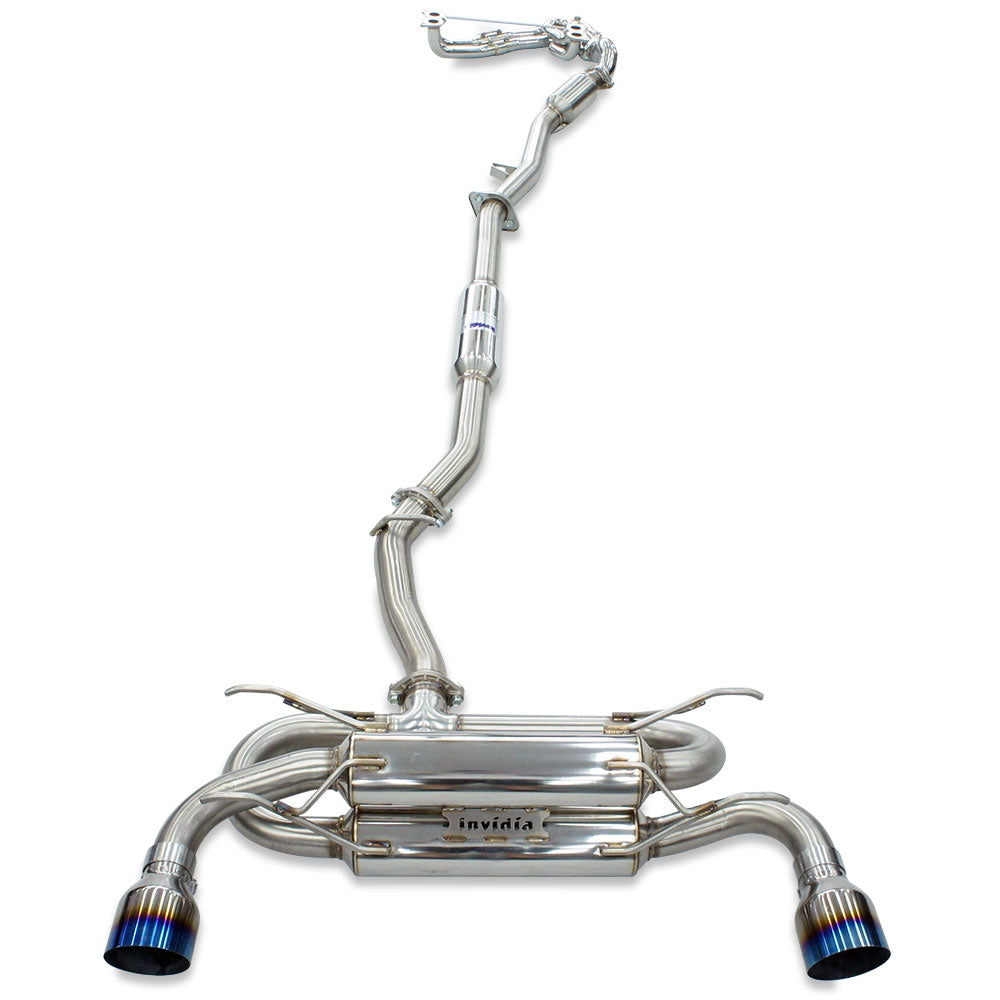

Invidia Q300 70mm Engine Back Exhaust w/PSR Unequal Headers - Subaru BRZ & Toyota 86 12-21, 22+ (6MT)

Note: Suits Manual Transmission Only

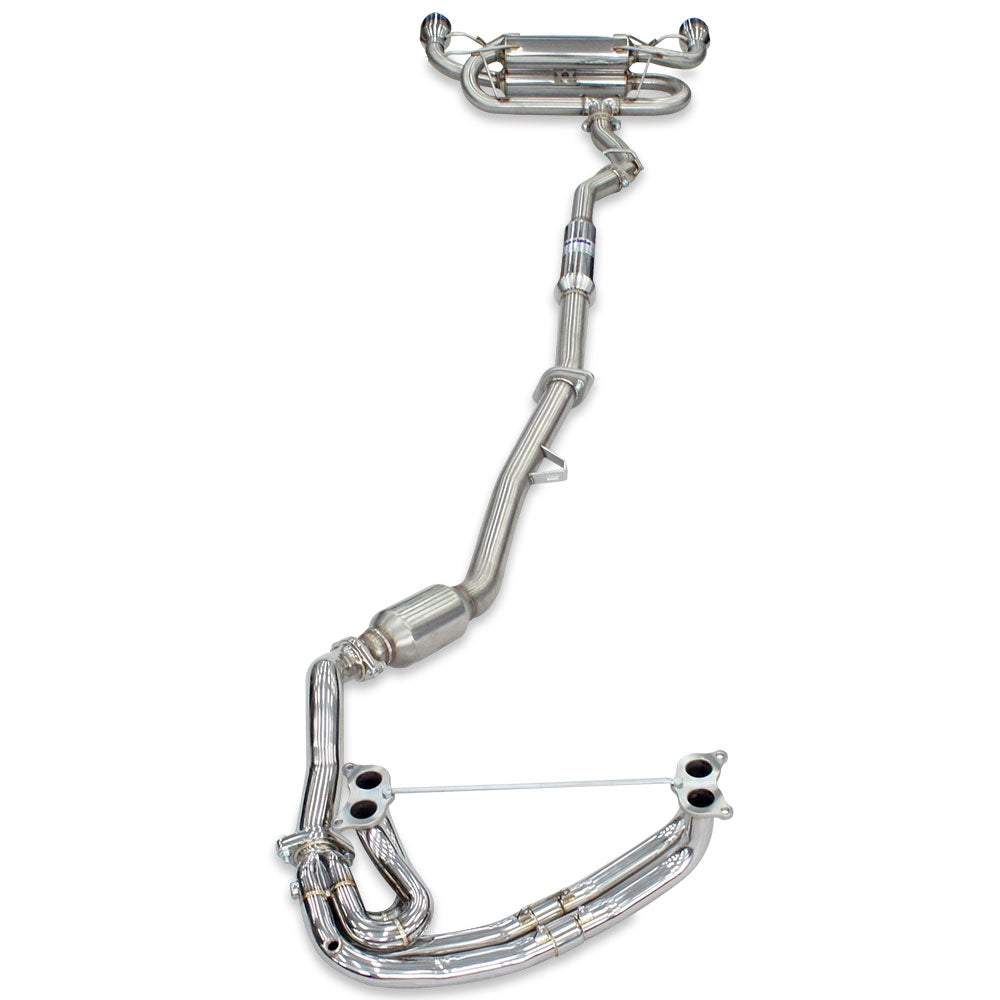

PSR Headers and Over-Pipe

Designed for optimum exhaust efficiency whilst adding that unique boxer rumble, the PSR Unequal length headers provide a high quality and high performance solution for the Toyota 86 and Subaru BRZ FA20 models. Utilising the latest in exhaust manufacturing technology ensures a direct fitment, optimum exhaust flow and durability.

Included is a 2.5" Over-Pipe to further improve the performance potential of these headers. Compatible with either the factory front-pipe or any direct-fit aftermarket replacement front-pipe.

Manufactured from 304 Stainless Steel and lost-wax stainless flanges for strength and reliability. A full gasket kit is included for simple, bolt-on installation.

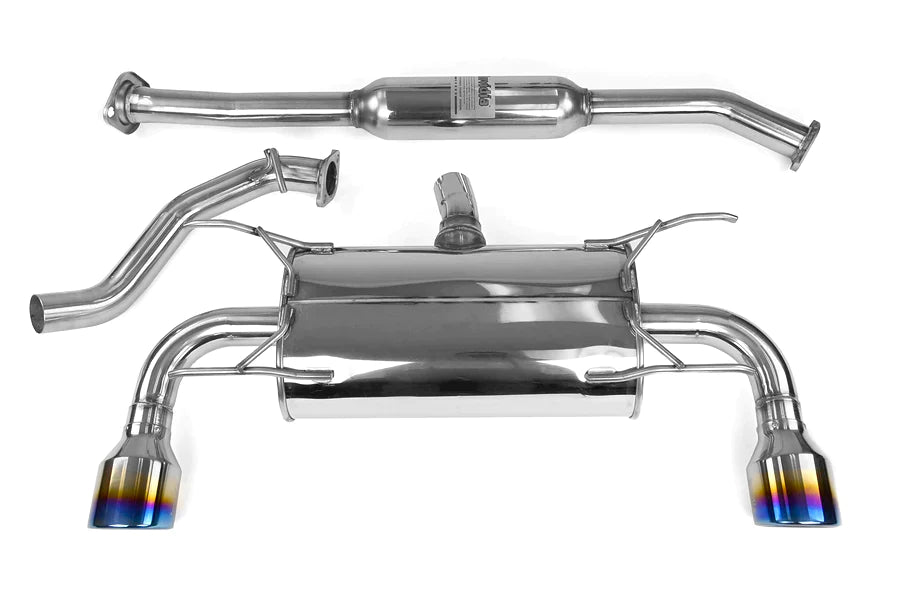

INVIDIA Q300 CAT BACK EXHAUST

Tuned Muffler - For optimal flow and enhanced sound

Invidia's Q300 tuned muffler systems provide a quieter exhaust sound than both the R400 and N1 Invidia Exhausts. While still keeping volumes in check, their high flow design ensures efficient exhaust flow for optimum engine performance and prevents sacrificing any increases to power or torque. The Q300 mufflers offer a rich, deep, sporty exhaust note which enhances the natural tone of your car's engine without introducing any unwanted sound qualities or excessive volume. The Q300 exhaust system utilises specially sized resonators and muffler baffles to maintain power output while still producing a deep and mellow exhaust tone

From start to finish the Invidia Q300 Exhaust Systems are designed with performance in mind with the exhaust route carefully selected to ensure minimal bends, allowing for an unobstructed exit of exhaust gases with minimal restrictions and turbulence. This will allow for improvements in both horsepower and torque, along with improvements in throttle response with a reduction in turbo lag for turbocharged vehicles. Additionally, you get the reward of an aggressive exhaust note.

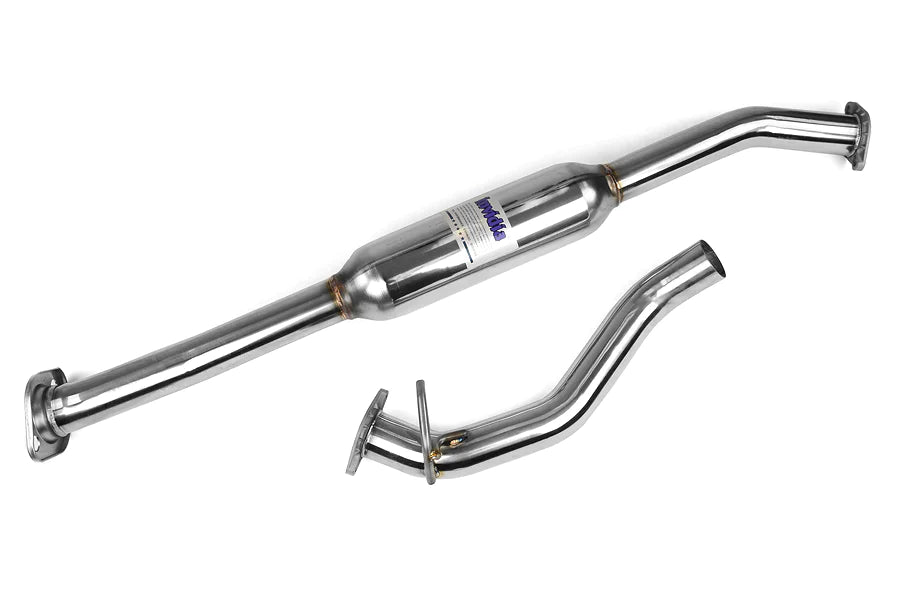

INVIDIA FRONT PIPE

The factory exhaust will always have restrictions and these restrictions are normally highest near where the catalytic converter is found. Invidia Exhausts use a larger pipe diameter and smooth bends which allows exhaust gases to pass with fewer restrictions and turbulence. A High-Flow catalytic converter is then utilised to still control emissions for street driving legalities but with minimal impact to exhaust flow. In some cases Invidia will also offer catless versions for off-road use where every ounce of performance is required.

Because of these reasons, Invidia front pipes and cat pipes make for the most popular exhaust upgrade that adds a substantial bump in both horsepower and torque.

To withstand the high temperatures laser cut cast steel flanges are used to ensure long lasting leak free reliability. This is a 100% bolt on installation for right-hand drive vehicles with no modifications or changes required. Factory O2 sensor locations are also retained where required to ensure compatibility with factory systems.

• Piping Diameter: 70mm
• Piping Thickness: 1.5mm
• Piping Material: 304 Stainless Steel
• Piping Finish: Polished
• Flange Material: Cast 304 Stainless Steel
• Resonated: Yes
• Single/Dual Exit: Dual
• Muffler Style: Q300
• Tip Quantity: 2
• Tip Material: Titanium
• Tip Finish:  Burnt Titanium
• Tip Style: Rolled Edge
• Tip Diameter: 110mm

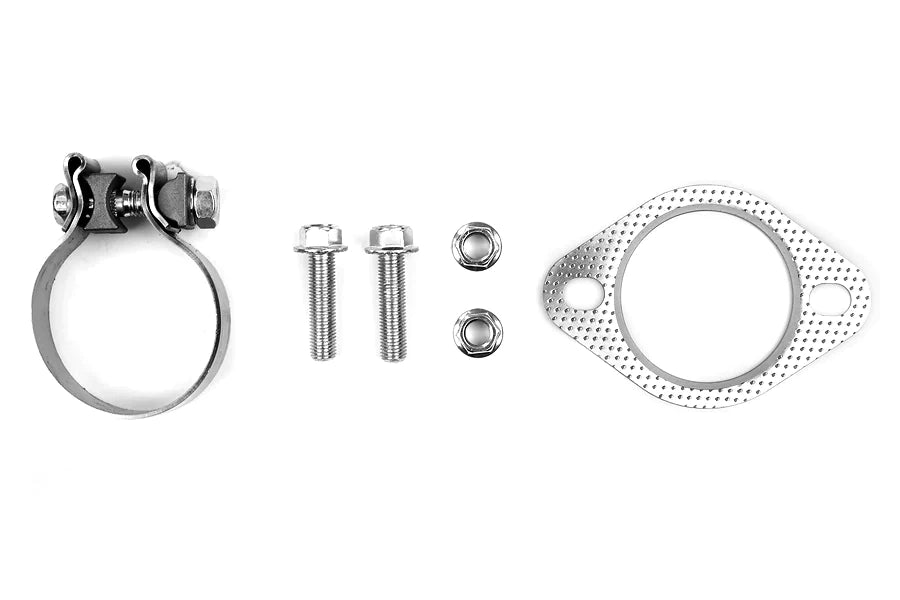

• Included Hardware:
  • Gaskets
  • Nuts/Bolts
