HKS Legamax Sports Catback Exhaust - Mazda MX-5 RF ND 16+
HKS Legamax Sports Catback Exhaust - Mazda MX-5 RF ND 16+
- Secure checkout
- 14-day returns
- Genuine parts
- Melbourne-based support
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Vehicle fitment
This part is listed to fit the following vehicles.
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description

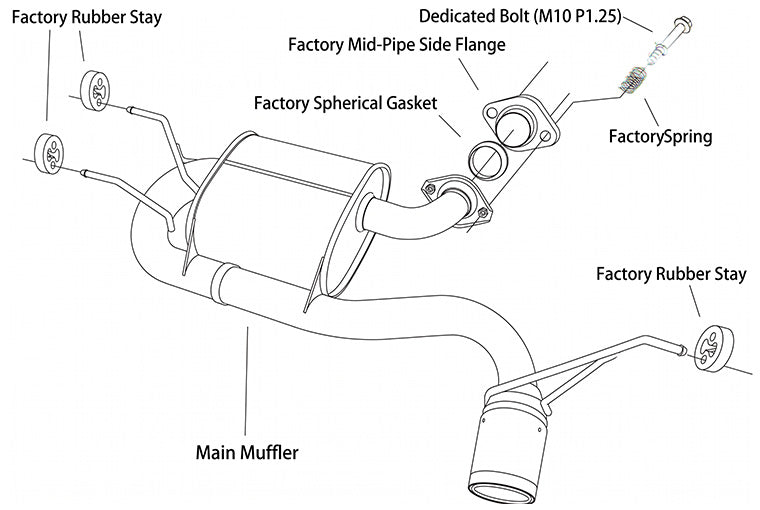

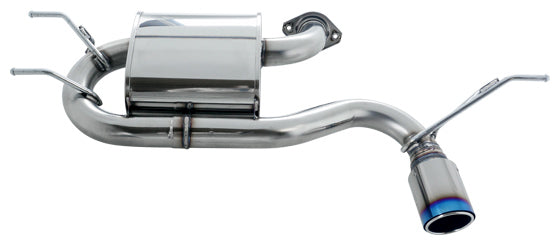

The HKS LEGAMAX Sports is a full cat-back exhaust system for the Mazda MX-5 RF (ND, 2.0L). It replaces the factory rear muffler with a SUS304 stainless system finished with a titanium tip, tuned for a sportier note while keeping a streetable idle level. The 60.5mm centre pipe and 94mm titanium tip trim the rear end to 7.4kg and give the RF a cleaner look and sound.
Features
- Full cat-back system (centre pipe and rear muffler) for the MX-5 RF
- SUS304 stainless steel construction with a titanium exhaust tip
- 60.5mm centre pipe diameter
- 94mm titanium tip
- 7.4kg total weight for a lighter rear end
- Sporty note with a street-friendly idle level (88 dB idle, stock 87 dB)
- Main muffler flange included in the kit
Fitment
- Mazda MX-5 RF / Roadster RF, chassis 5BA-NDERC
- Engine: PE-VPR(RS) 2.0L
- Build dates: December 2016 to December 2023
- Transmission: AT and MT (MT from July 2018)
- Not confirmed for vehicles fitted with the MAZDA SPEED rear underskirt
Notes
- Minimum ground clearance 194mm on stock suspension (152mm at the factory heat shield); check clearance if your car is lowered.
- HKS certification number JQR10161134 applies to the Japanese market. Check your state regulations before road use in Australia.
- Ships direct from HKS Australia.
Specifications
- Part Number
- 32018-AZ011
- Brand
- HKS
- Series
- LEGAMAX Sports
- Material
- SUS304 stainless steel
- Exhaust Tip
- Titanium, 94mm
- Centre Pipe Diameter
- 60.5mm
- Weight
- 7.4kg
- Idle Noise
- 88 dB (stock 87 dB)
- Minimum Ground Clearance
- 194mm
- Certification Number
- JQR10161134
