HKS Cold Air Intake Full Kit - Toyota GR86 ZN8/Subaru BRZ ZD8 22+ (FA24)
HKS Cold Air Intake Full Kit - Toyota GR86 ZN8/Subaru BRZ ZD8 22+ (FA24)
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Vehicle fitment
This part is listed to fit the following vehicles.
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description

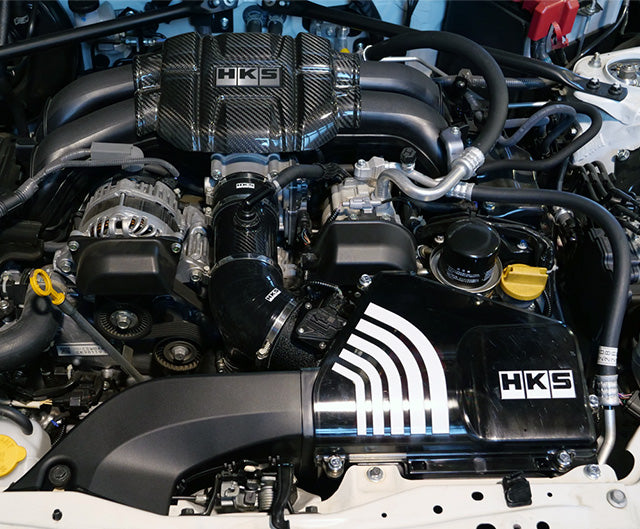

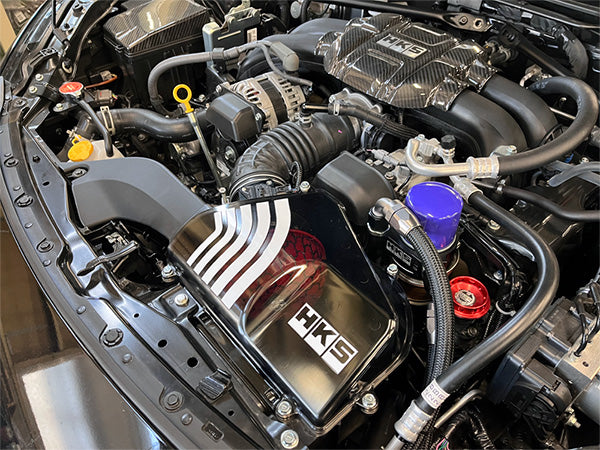

The HKS Cold Air Intake Full Kit is a complete three-piece intake system for the FA24-powered Toyota GR86 (ZN8) and Subaru BRZ (ZD8). It pairs a sealed cold air intake box, a dry carbon suction pipe, and a single-piece moulded intake duct to draw cooler air and cut intake resistance over the factory setup.
Features
- Sealed cold air intake box houses the Super Power Flow filter (D150-80, wet type, 2-layer) to shield it from engine bay heat and keep intake air temperatures stable.
- Clear smoke upper case shows the filter while matching the engine bay; the air flow meter keeps its factory position to retain stock controls.

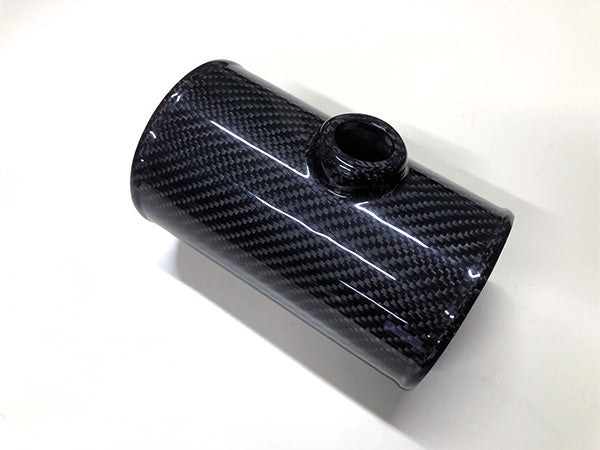

- 3K twill-weave carbon suction pipe with a unidirectional carbon core, cured in a high-pressure silicone bag, replaces the restrictive factory pipe.

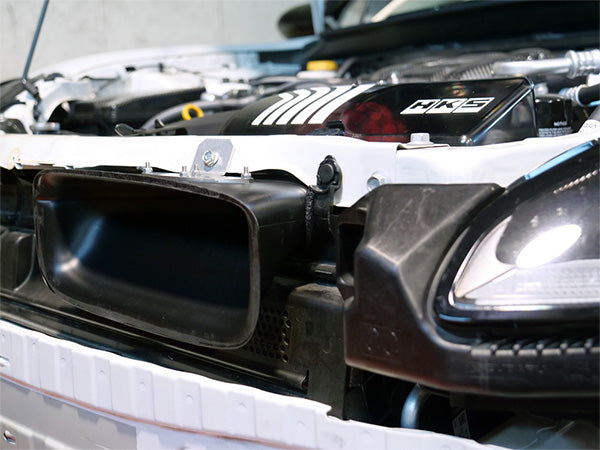

- Single-piece moulded air intake duct widens the narrowest diameter from 50mm to 87.5mm for freer flow and is shaped so it does not trap rainwater.
- Secondary intake duct further reduces airflow resistance.
Fitment
- Toyota GR86 (ZN8) and Subaru BRZ (ZD8)
- Engine: FA24
- Build date: 2021/10 onwards (MY22+)
Notes
- Complete kit, HKS code 70026-AT012: cold air intake box (70026-AT010), carbon suction pipe (70026-AT011), and air intake duct (70999-AT003).
- Cannot be fitted together with the HKS GT2 Supercharger.
- Marks or slight dimming on the inside of the air cleaner cover are a normal result of manufacturing; do not clean it with organic solvents, which can damage the resin.
- Allow around 4.0 hours for installation.
- HKS certification applies to the Japanese market; check your state regulations before road use in Australia.
Specifications
- Part Number
- 70026-AT012
- Brand
- HKS
- Kit Type
- Full kit (3-piece)
- Cold Air Intake Box
- 70026-AT010
- Carbon Suction Pipe
- 70026-AT011
- Air Intake Duct
- 70999-AT003
- Filter
- Super Power Flow D150-80, wet type, 2-layer
- Suction Pipe Material
- 3K twill carbon over unidirectional carbon core
- Intake Duct Minimum Diameter
- 87.5mm (factory 50mm)
- Engine
- FA24
- Fitment
- Toyota GR86 ZN8 / Subaru BRZ ZD8
- Install Time
- 4.0 hours
