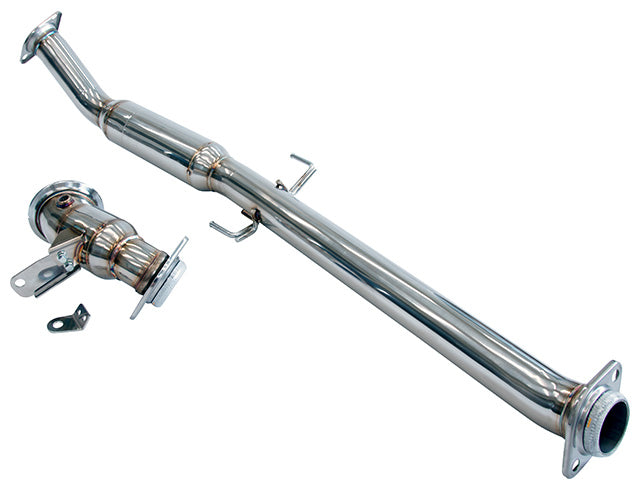

HKS Catted Downpipe Metal Catalyzer 33005-AT012 GR Yaris GXPA16 - HKS - Revzone

HKS Catted Downpipe (Metal Catalyzer) - Toyota GR Yaris GXPA16 Facelift 24+

$4,690.00

HKS Catted Downpipe (Metal Catalyzer) - Toyota GR Yaris GXPA16 Facelift 24+

Name: HKS Catted Downpipe (Metal Catalyzer) - Toyota GR Yaris GXPA16 Facelift 24+
Brand: HKS
SKU: 33005-AT012
Price: 4690.00 AUD
Availability: InStock

SKU:

33005-AT012

$4,690.00

or 4 interest-free payments of $1,172.50 with Afterpay or Zip

Fits

This part is listed to fit the following vehicles.

Toyota GR Yaris GXPA16

Ships direct from HKS Australia. Check availability

Secure checkout
14-day returns
Genuine parts
Melbourne-based support

In Melbourne? Fit it in our workshop.

We fit parts in-house at the RevZone workshop. Book a time and bring your car in.

Book a fitting

The HKS Metal Catalyzer replaces the factory primary catalyzer and the front pipe with secondary catalyzer on the facelift GR Yaris. HKS swap the stock 600 cell ceramic cores for low-density 150 cell metal catalysts in both positions, and open the pipe up from 70mm to 75mm, cutting exhaust back pressure while keeping emissions purification in place.

On the HKS test car the catalyzer alone added 5.4 kW and 4.8 Nm over stock. Paired with the HKS Super Turbo Muffler (31029-AT017) the gain was 10.8 kW and 14.9 Nm.

Features

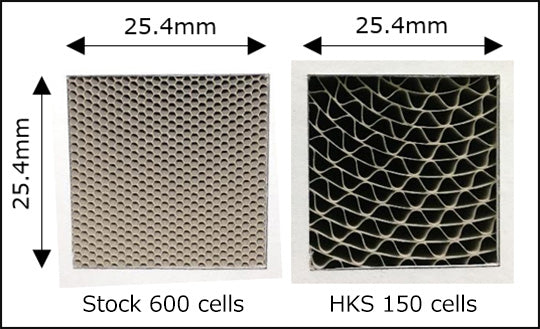

150 cell metal primary and secondary catalyzers in place of the stock 600 and 300 cell ceramic units
Primary catalyzer uses a compact cell structure and tuned precious metal ratio, balancing purification against back pressure
Main pipe enlarged from 70mm to 75mm
SUS304 stainless steel, buff polished, all joints TIG welded

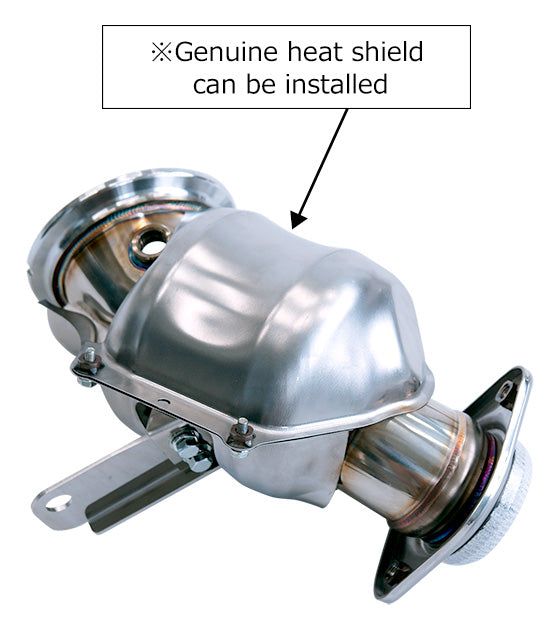

Accepts the genuine primary catalyzer heat shield
Dedicated mounting brackets for both manual and automatic cars included
Exhaust volume unchanged with the stock muffler, with a slightly higher tone

Fitment

Toyota GR Yaris GXPA16 facelift (Gen 2), 04/2024 onwards
Engine: G16E-GTS 1.6L turbo
Manual and automatic transmission
Pre-facelift GR Yaris (2020 to 2024) uses a different part, HKS 33005-AT011

Notes

Not compatible with the Japanese-market RC grade fitted with standard 17 inch tyres.
Minimum ground clearance at the front frame member is 120mm.
Power figures are HKS in-house dyno results. Results vary by vehicle, tune and measuring equipment.
HKS emissions certification applies to the Japanese market. Check your state regulations before road use in Australia.

Part Number: 33005-AT012
Brand: HKS

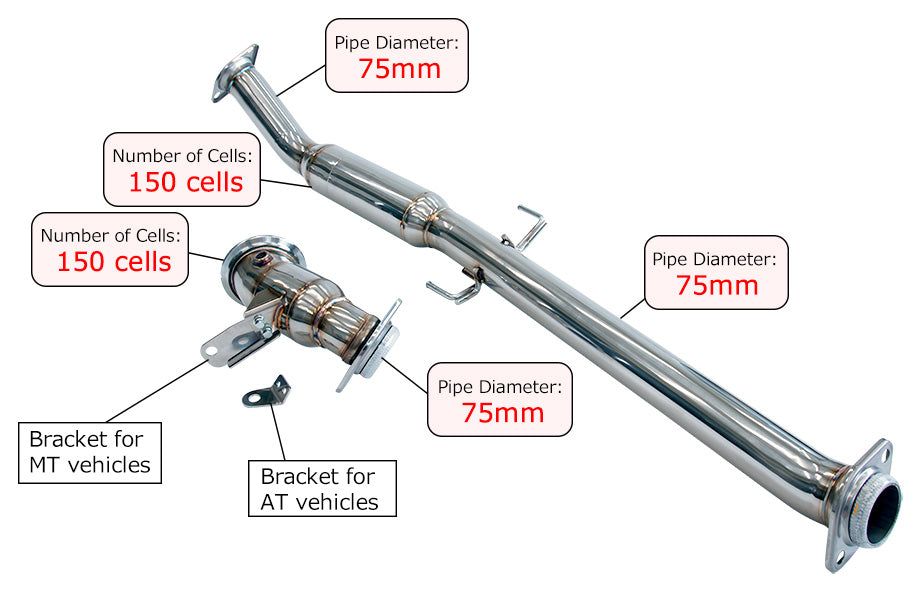

Includes: Primary catalyzer, front pipe with secondary catalyzer, MT and AT brackets
Catalyst: Metal substrate, 150 cells (primary and secondary)
Stock Catalyst: Ceramic, 600 cells (primary), 300 cells (secondary)
Main Pipe Diameter: 74.7mm (stock 70mm)
Material: SUS304 stainless steel
Finish: Buff polished, TIG welded
Weight: 9.2 kg (stock 7.4 kg)
Minimum Ground Clearance: 120mm (front frame member)
Near-Field Exhaust Noise: 81 dB with stock muffler, 93 dB with HKS Super Turbo Muffler
Power Gain: +5.4 kW, +4.8 Nm (catalyzer only, HKS in-house)
