HEL Performance Braided Brake Lines - Toyota 86 / Subaru BRZ ZN6 ZC6 2012-2021 (Non-Brembo)
HEL Performance Braided Brake Lines - Toyota 86 / Subaru BRZ ZN6 ZC6 2012-2021 (Non-Brembo)
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Vehicle fitment
This part is listed to fit the following vehicles.
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description

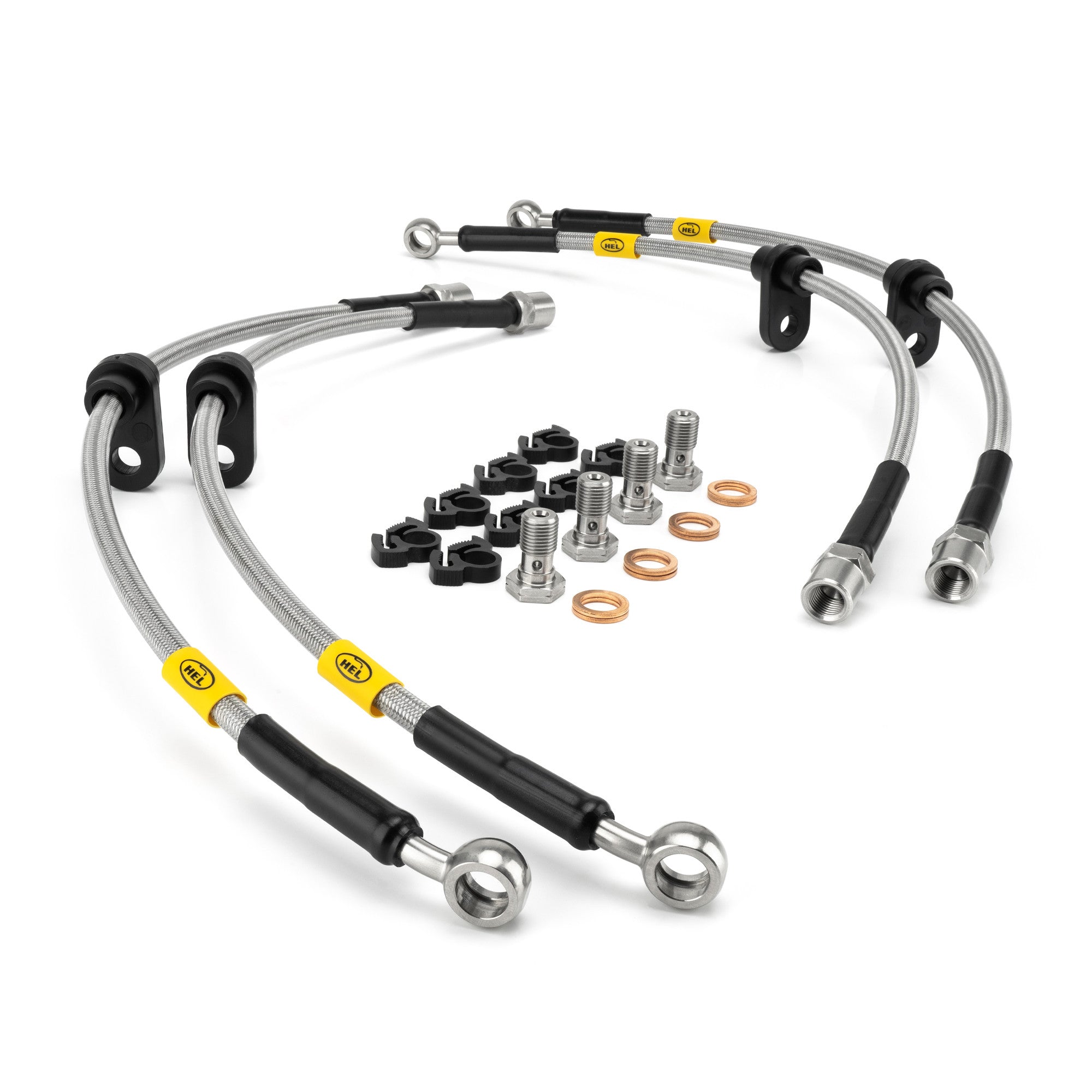

HEL Performance stainless steel braided brake lines are a direct OEM-replacement upgrade for the flexible rubber hoses on the first-generation Toyota 86 and Subaru BRZ. Each line is built in-house and machine-crimped onto PTFE-lined, stainless-braided hose, giving a firmer pedal, sharper modulation and more consistent braking as temperatures climb. This set fits cars running the standard (non-Brembo) calipers.
Features
- 3-layer construction: PTFE inner core, 303/304 stainless steel braid and a protective PVC outer cover
- Machine-crimped 303/304 stainless steel fittings for an exact match to the factory hoses
- Eliminates hose flex for a firmer brake pedal and improved modulation
- Rated to 290 Bar working pressure and 870 Bar burst pressure
- Complete front and rear set
- Backed by a HEL lifetime warranty
Fitment
- Toyota 86 (ZN6) 2012-2021
- Subaru BRZ (ZC6) 2012-2021
- Scion FR-S 2013-2016
- Standard calipers only - does not fit factory Sport Pack / Brembo brakes
Notes
- Fitment should be carried out by a qualified technician. Bleed the brakes and test pedal feel before driving.
- Cars fitted with factory Brembo calipers require the Brembo-specific HEL kit instead.
Specifications
- Part Number
- TOY-4-116
- Brand
- HEL Performance
- Hose Construction
- 3-layer PTFE inner, 303/304 stainless steel braid, PVC outer cover
- Fittings
- 303/304 stainless steel, machine-crimped
- Hose Size
- AN3 (-3), 3mm internal diameter
- Temperature Range
- -70C to 260C
- Maximum Working Pressure
- 290 Bar (4206 PSI)
- Burst Pressure
- 870 Bar (12618 PSI)
- Warranty
- Lifetime
