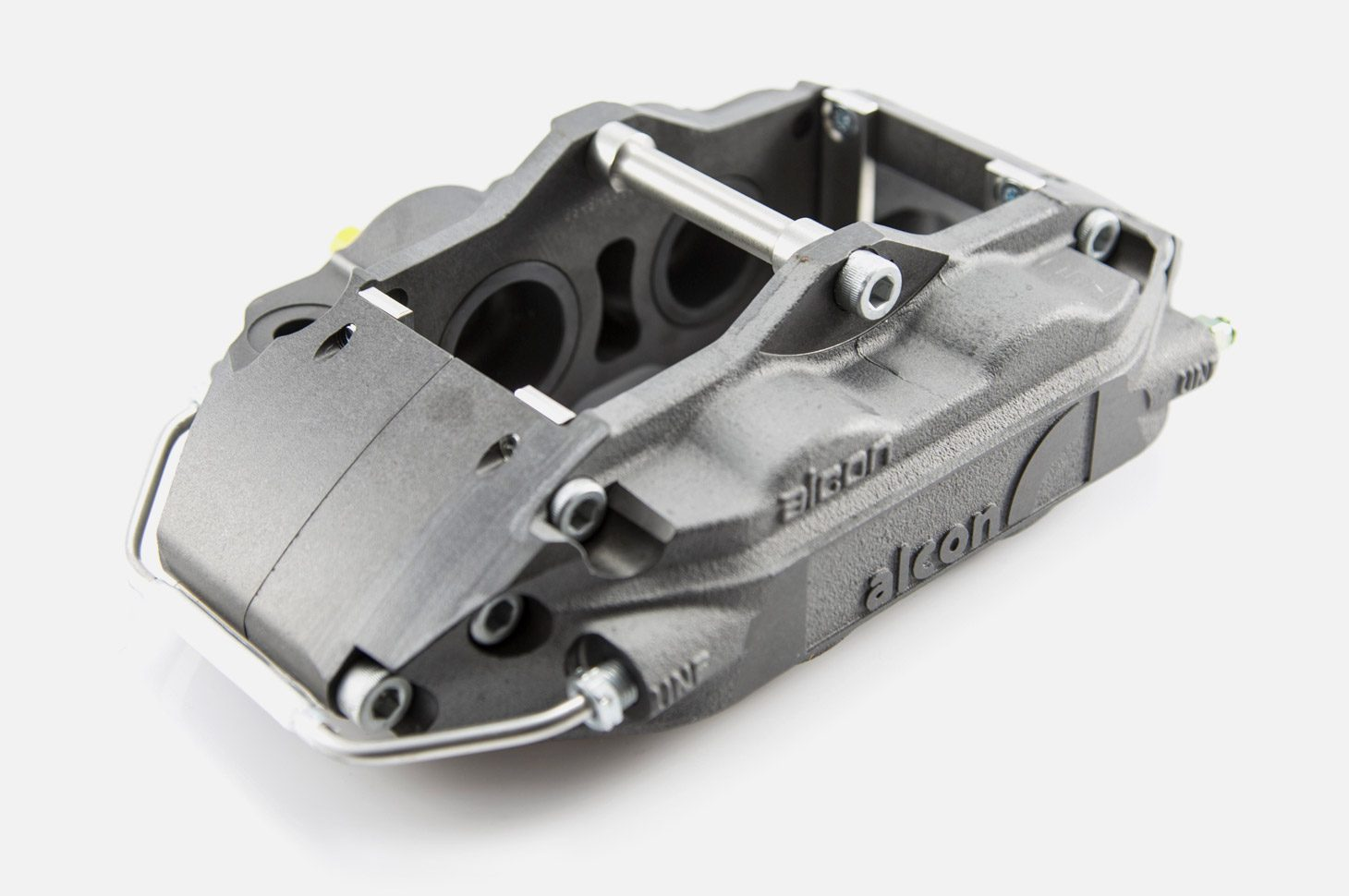

Alcon CRH304 4-Piston Brake Calipers - Pair
Alcon CRH304 4-Piston Brake Calipers - Pair
- Secure checkout
- 14-day returns
- Genuine parts
- Melbourne-based support
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description
The Alcon CRH304 calipers represent the pinnacle of brake engineering for serious motorsport and high-performance street applications. Featuring Alcon's renowned 4-piston monoblock design, these calipers deliver exceptional stopping power, fade resistance, and pedal feel under the most demanding conditions.
Technical Specifications:
- Radial mount for maximum rigidity and firm, consistent pedal
- Aluminium pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid
- 2kg anti-knock back springs
- Remove pad retainer bolt and sleeve to change pads
- Stainless steel fluid transfer pipe
- Disc diameter range Ø250 – 304mm
- Disc thickness range 25.4 – 28mm
- Fluid inlet 3/8-24 UNF (-3) male
- Dry weight 1.9kg excluding pads
- Alcon pad reference 4463/39 area 80cm2 or 4463/42 area 92cm2, 16mm thick, 113.5mm long
Key Features:
- 4-piston monoblock caliper design for maximum rigidity and consistent performance
- Lightweight construction reduces unsprung weight
- High-temperature capability for extended track sessions
- Precision CNC-machined from billet aluminum
- Multiple pad compound options available
- Proven on track and street worldwide
Performance Benefits:
- Superior heat dissipation for consistent performance during extended track sessions
- Reduced brake fade under heavy use
- Improved modulation and pedal feedback
- Reduced unsprung weight improves handling and suspension response
- Direct replacement upgrade for OEM brake systems
About Alcon:
Alcon has been at the forefront of brake technology for over 35 years, supplying braking systems to Formula 1, Le Mans, and top-tier motorsport teams globally. Every Alcon component is engineered and manufactured in the UK to the highest standards, combining race-proven technology with street reliability.
Fitment: Please contact us to confirm fitment for your specific vehicle application. Additional components such as rotors, brake lines, and mounting hardware may be required.
Lead Time: This is a special-order item. Please allow 4-6 weeks for delivery from the UK. Contact us for current stock availability.
Professional installation is strongly recommended. Brake system modifications should only be performed by qualified technicians.
Specifications
- Brand
- Alcon Brakes
