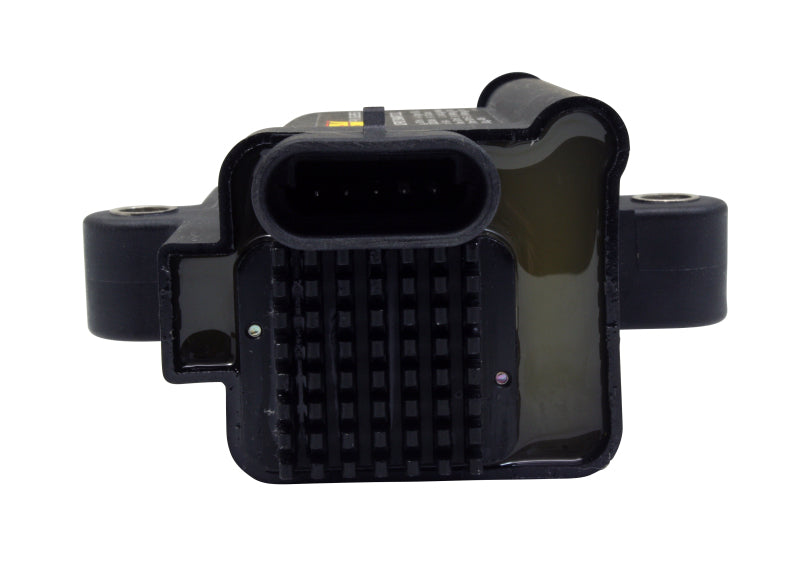

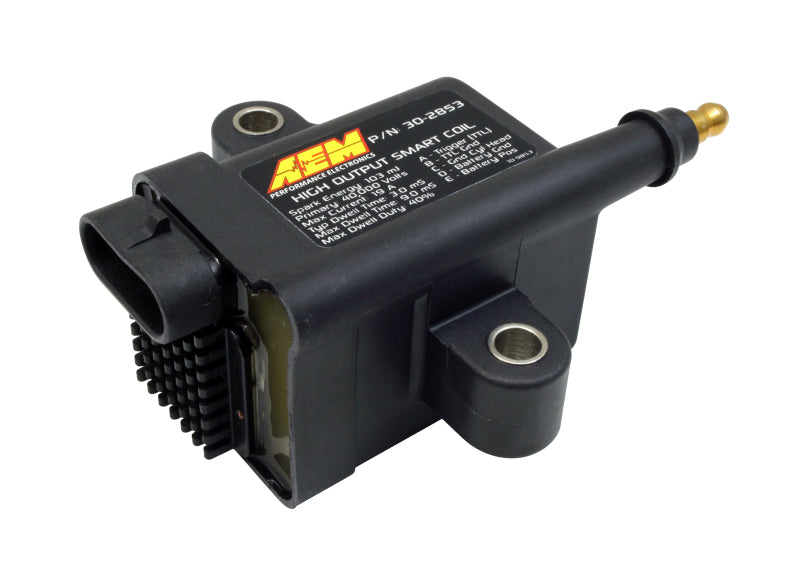

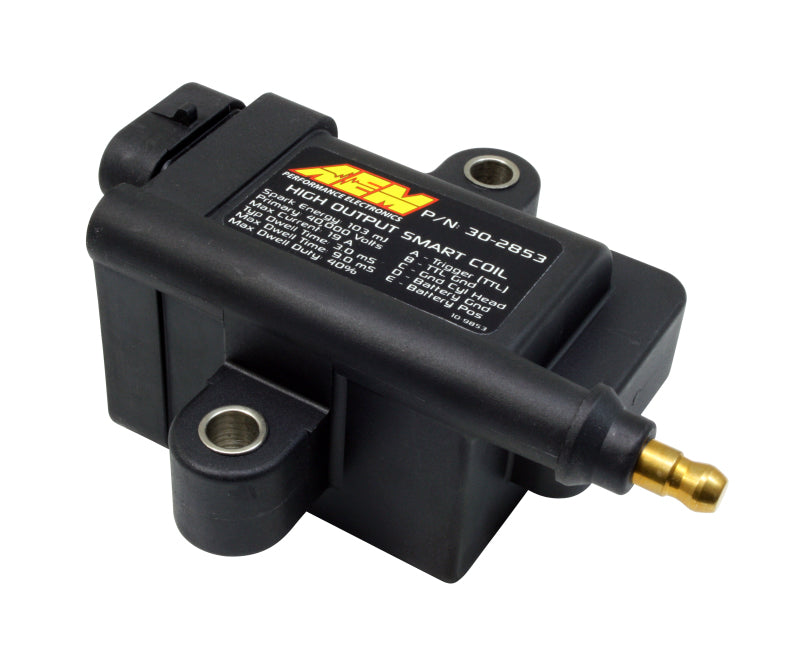

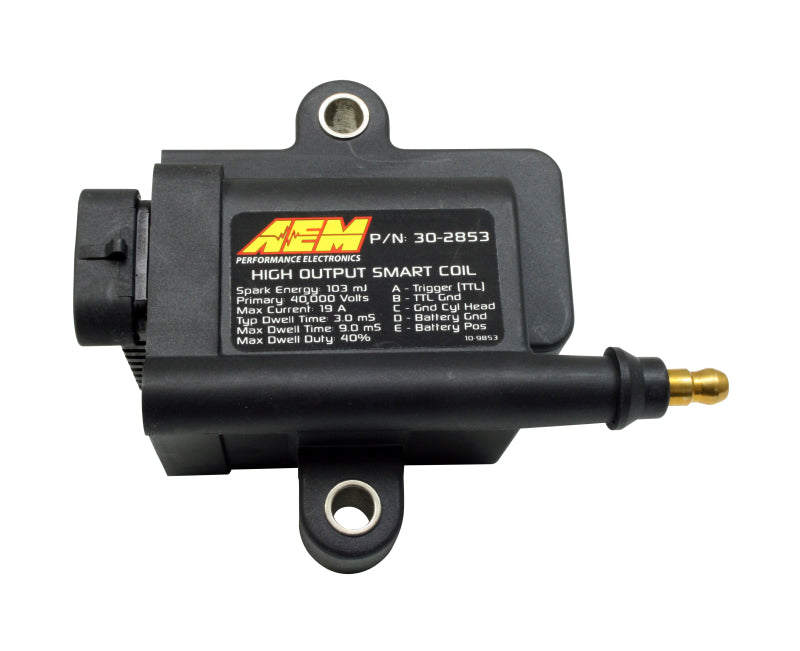

AEM Universal High Output Inductive Smart Coil
AEM Universal High Output Inductive Smart Coil
Universal fit
No vehicle selection needed.
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
Fitment not confirmed
This part may still fit. Check the details below or contact us before ordering. Ask about fitment
- Secure checkout
- 14-day returns
- Genuine parts
- Melbourne-based support
In Melbourne? Fit it in our workshop.
We fit parts in-house at the RevZone workshop. Book a time and bring your car in.
Description

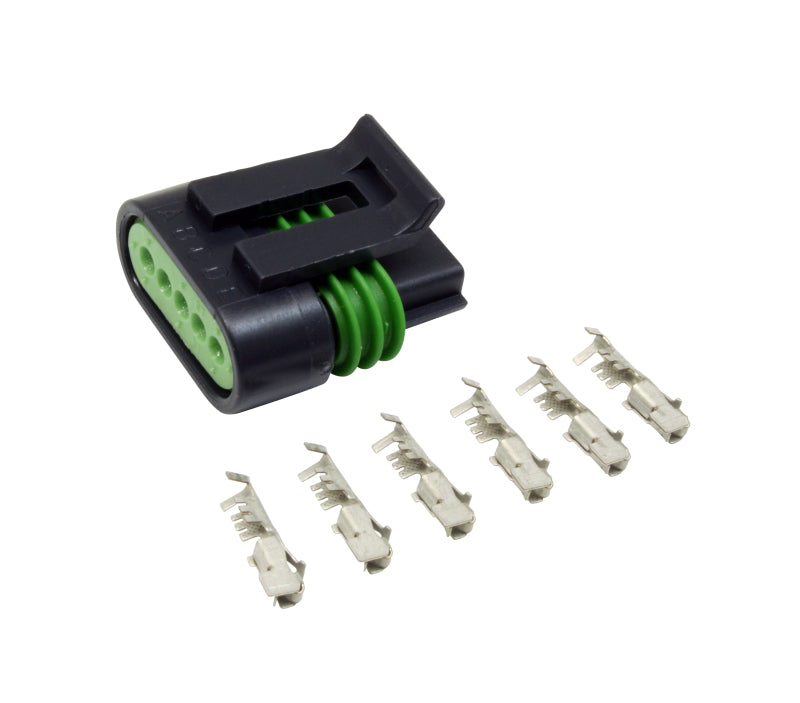

AEM High Output IGBT Smart and Dumb Coils are designed for coil-near-plug use ONLY and are not intended for distributed ignition systems. AEM cannot guarantee or warranty IGBT coil performance when used on distributed ignition vehicles. The coil delivers a minimum 40kV output with no load and 40kV ±10% with a 50pF load. Output energy is 103 mJ ±7%, peak secondary current is 102 mA ±10%, arc duration is 2.9 mS ±10%, and turns ratio is 71:1. Maximum current is 19 amps with a maximum battery voltage of 17 volts. Base dwell is 3.0 mS. Maximum continuous dwell is 9 mS and should not exceed a 40% duty cycle, while maximum intermittent dwell is 80% duty cycle for up to 5 seconds. Uses a Packard/Delphi 12162825 "Pull to Seat" mating connector and Packard/Delphi 12124075 "Pull to Seat" mating contacts. The high-tension wire terminal uses an HEI "spark plug top" style connection.
WarrantyInstallation Instructions
Specifications
- Part Number
- AEM30-2853
- Brand
- AEM
